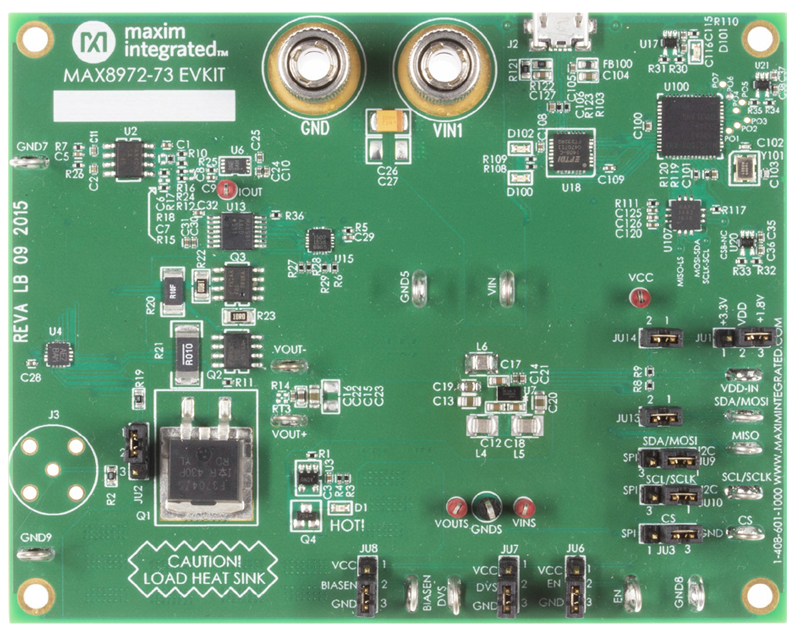

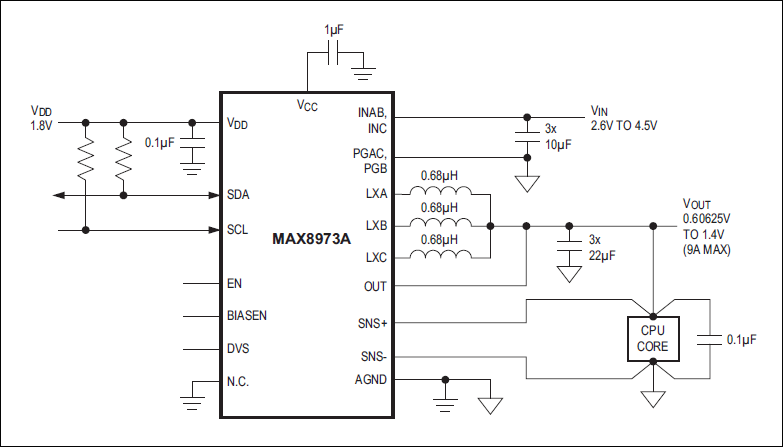

The MAX8973A high-efficiency, three-phase, DC-DC step-down switching regulator delivers up to 9A of output current in a compact footprint with excellent transient response. Each phase operates at a 2MHz fixed frequency, allowing the use of small magnetic components. Maxim Integrated’s proprietary Rotational Phase Spreading algorithm optimizes efficiency at low output currents. Software-selectable forced-PWM mode allows either fixed-frequency operation, or improved efficiency at light load with a variable frequency in skip mode. The triple-inductor architecture reduces the size of the external components while providing the benefit of ripple current cancellation. The MAX8973A operates from a 2.6V to 4.5V input voltage range.
An I²C 3.0-compatible serial interface, supporting clock rates up to 3.4MHz, controls key regulator parameters such as output voltage, output slew rate, and on/off control. Output voltage is programmable from 0.60625V to 1.4V in 6.25mV increments. The default output voltage is factory programmable. An EN input enables and disables the output, while a DVS pin selects two different output voltages without relying on the serial interface.
Fully differential remote sense ensures precise DC regulation at the point of load. Total output error is less than 0.8% over, line, and temperature at 1.2V output. Output ripple is typically < 1% of the output voltage setting when the processor is in the Idle state (light loads) and < 0.5% at medium and high loads.
Other features include internal soft-start control circuitry to reduce inrush current, guaranteed monotonic voltage adjustment, over-current protection, and over-temperature protection. The MAX8973A operates over the -40°C to +85°C extended temperature range and is packaged in
an ultra-small WLP package.
Applications
- Smartphones
- Tablets
- Ultrabooks
