MAX794

PRODUCTION

3.0V/3.3V Adjustable Microprocessor Supervisory Circuits

Full-Function Battery-Backup ICs for 3V/3.3V Systems

Data Sheet (Rev. 6)
Part Models
4
1ku List Price
Starting From $5.15
Viewing:

Part Details

MAX793/MAX794/MAX795
  • Precision Supply-Voltage Monitor:
    • Fixed Reset Trip Voltage (MAX793/MAX795)
    • Adjustable Reset Trip Voltage (MAX794)
  • Guaranteed Reset Assertion to VCC = 1V
  • Backup-Battery Power Switching—Battery Voltage Can Exceed VCC
  • On-Board Gating of Chip-Enable Signals—7ns Max Propagation Delay
MAX793/MAX794 Only
  • Battery Freshness Seal
  • Battery OK Output (MAX793)
  • Uncommitted Voltage Monitor for Power-Fail or Low-Battery Warning
  • Independent Watchdog Timer (1.6s timeout)
  • Manual Reset Input
MAX794
3.0V/3.3V Adjustable Microprocessor Supervisory Circuits

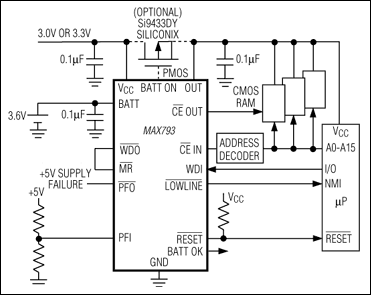

MAX793, MAX793R, MAX793S, MAX793T, MAX794, MAX795, MAX795R, MAX795S, MAX795T: Typical Operating Circuit
