MAX6710

PRODUCTION

Low-Voltage, High-Accuracy, Triple/Quad Voltage µP Supervisory Circuits in SOT Package

Data Sheet (Rev. 5)
Part Models
27
1ku List Price
Starting From $2.57
Viewing:

Part Details

  • Monitor Up to Four Power-Supply Voltages
  • Precision Factory-Set Reset Threshold Options for 5.0V, 3.3V, 3.0V, 2.5V, and 1.8V Supplies
  • Adjustable Voltage Threshold Monitors Down to 0.62V with 1.5% Accuracy
  • Low 35µA Supply Current
  • Open-Drain active-low RESET Output with 10µA Internal Pullup
  • 5µs Propagation Delay (MAX6700)
  • 140ms (min) Reset Timeout Period (MAX6710)
  • Active-low RESET Valid to IN1 = 1V or IN2 = 1V
  • Immune to Short Monitored Supply Transients
  • Guaranteed from -40°C to +85°C
  • Small 6-Pin SOT23 Package
    • MAX6710
    Low-Voltage, High-Accuracy, Triple/Quad Voltage µP Supervisory Circuits in SOT Package

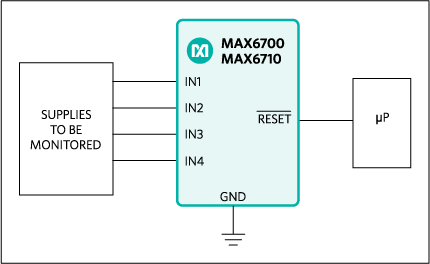

    MAX6700, MAX6710: Typical Operating Circuit
