MAX6683
PRODUCTIONTemperature Sensor and System Monitor in a 10-Pin µMAX
- Part Models
- 2
- 1ku List Price
- Starting From $2.58
Part Details
- Monitors Local Temperature
- Monitors Three External Voltages (1.8V, 2.5V, 5V Nominal)
- Monitors VCC (3.3V Nominal)
- User-Programmable Voltage and Temperature Thresholds
- Alert Function with Ability to Respond to SMB Alert Response Address
- +2.7V to +5.5V Supply Range
- -40°C to +125°C Temperature Range
- 60Hz or 50Hz Line-Frequency Rejection
- Tiny 10-Pin µMAX Package
- MAX6683EVKIT Available

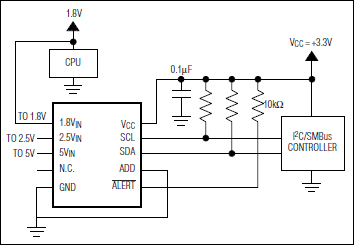

The MAX6683 system supervisor monitors multiple power-supply voltages, including its own, and also features an on-board temperature sensor. The MAX6683 converts voltages to an 8-bit code and temperatures to an 11-bit (10-bit-plus-sign) code using an analog-to-digital converter (ADC). A multiplexer automatically sequences through the voltage and temperature measurements. The digitized signals are then stored in registers and compared to the over/underthreshold limits programmed over the SMBus™/I²C-compatible 2-wire serial interface.
When a temperature measurement exceeds the programmed threshold, or when an input voltage falls outside the programmed voltage limits, the MAX6683 generates a latched interrupt output active-low ALERT. Three interrupt modes are available for temperature excursions. These are default mode, one-time interrupt mode, and comparator mode. The active-low ALERT output is cleared, except for temperature interrupts generated in comparator mode, by reading the Interrupt Status register (Table 5). The active-low ALERT output can also be masked by writing to the appropriate bits in the Interrupt Mask register (Table 6) or by setting bit 1 of the Configuration register (Table 4) to zero. The MAX6683 SMBus/I²C-compatible interface also responds to the SMB alert response address.
Applications
- Networking
- Servers
- Telecommunications
- Workstations
Documentation
Data Sheet 1
Reliability Data 1
Technical Articles 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX6683AUB+ | 10-MINI_SO-N/A | ||
| MAX6683AUB+T | 10-MINI_SO-N/A |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits
MAX6683 Evaluation System/Evaluation Kit
MAX6683 Evaluation System/Evaluation Kit
