MAX6674
NOT RECOMMENDED FOR NEW DESIGNSCold-Junction-Compensated K-Thermocouple-to-Digital Converter (0°C to +128°C)
- Part Models
- 2
- 1ku List Price
- Starting From $9.13
Part Details

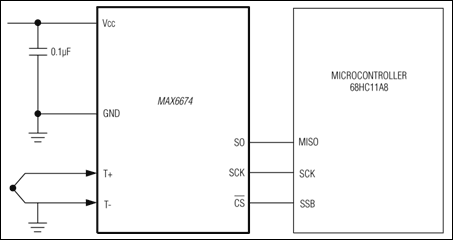

The MAX6674 cold-junction-compensation thermocouple-to-digital converter performs cold-junction compensation and digitizes the signal from a type-K thermocouple. The data is output in a 10-bit resolution, SPI™-compatible, read-only format.
This converter resolves temperatures to 0.125°C, allows readings as high as +128°C, and exhibits thermocouple accuracy of ±2°C for temperatures ranging from 0°C to +125°C.
The MAX6674 is available in a small, 8-pin SO package.
Applications
- Appliances
- HVAC
- Industrial
Documentation
Data Sheet 1
Design Note 2
Technical Articles 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX6674ISA+ | Small-Outline IC, Narrow (0.15in) | ||
| MAX6674ISA+T | Small-Outline IC, Narrow (0.15in) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
| No Match Found | ||
|
Oct 30, 2020 - 1702R2 ASSEMBLY |
||
| MAX6674ISA+ | PRODUCTION | |
| MAX6674ISA+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
