MAX667

PRODUCTION

+5V Programmable, Low-Dropout Voltage Regulator

Data Sheet (Rev. 4) Product Selection Table

Part Models: 8
1ku List Price: Starting From $3.30

Viewing:

Part Details

350mV Max Dropout at 200mA
250mA Output Current
Normal Mode: 20µA Typ Quiescent Current
Shutdown Mode: 0.2µA Typ Quiescent Current
Low-Battery Detector

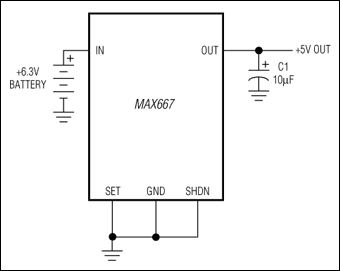

Fixed +5V (Min Component Count) or Adjustable Output
+3.5V to +16.5V Input
Dropout Detector Output
10µF Output Capacitor

Part Models: 8
1ku List Price: Starting From $3.30

Documentation

Data Sheet 2

MAX667: +5V Programmable, Low-Dropout Voltage Regulator Data Sheet (Rev.4) 10/13/2008

MAX667 10/10/2022

Reliability Data 1

MAX667 Reliability Data 01/12/2023

Design Note 3

LAN Power Supply Generates Isolated 9V 04/11/1996

Flyback Winding Adds 12V Output to 5V Buck Regulator 07/09/1998

Draw 150mW of Isolated Power from Off-Hook Phone Line 07/09/1998

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX667CPA+	Plastic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667CSA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667CSA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667EPA+	Plastic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667ESA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667ESA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667MJA	Ceramic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX667MJA/883B	Ceramic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 30, 2020 - 1702R2 ASSEMBLY
		pcn_1702r2
MAX667CSA+	PRODUCTION
MAX667CSA+T	PRODUCTION
MAX667ESA+	PRODUCTION
MAX667ESA+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
