MAX619

RECOMMENDED FOR NEW DESIGNS

Regulated 5V Charge Pump DC-DC Converter

Compact, Inductorless, Low-Profile 5V Backup Supply Fits in 0.1 Sq. Inch

Data Sheet (Rev. 2)

Part Models: 5
1ku List Price: Starting From $2.19

Viewing:

Part Details

Regulated 5V ±4% Charge Pump
Output Current Guaranteed over Temperature
- 20mA (V_IN ≥ 2V)
- 50mA (V_IN, ≥ 3V)
2V to 3.6V Input Range
No Inductors; Very Low EMI Noise

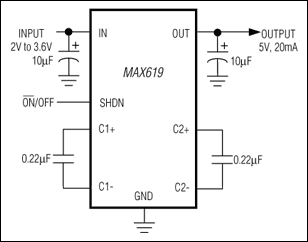

Ultra-Small Application Circuit (0.1in²)
Uses Small, Inexpensive Capacitors
500kHz Internal Oscillator
Logic-Controlled 1µA Max Shutdown Supply Current
Shutdown Disconnects Load from Input
8-Pin DIP and SO Packages

Part Models: 5
1ku List Price: Starting From $2.19
