MAX5138

PRODUCTION

Low-Power, Single, 16-/12-Bit, Buffered Voltage-Output DACs

Industry's Smallest 16-Bit DACs with Pin-Programmable Zero or Midscale Power-Up

Data Sheet (Rev. 2)
Part Models
2
1ku List Price
Starting From $4.19
Viewing:

Part Details

  • 16-/12-Bit Resolution in a 3mm x 3mm, 16-Pin TQFN Package
  • Hardware-Selectable on Power-Up or Reset-to-Zero/Midscale DAC Output
  • Double-Buffered Input Registers
  • Active-Low LDAC Asynchronously Updates DAC Output
  • Active-Low READY Facilitates Daisy Chaining
  • High-Performance 10ppm/°C Internal Reference
  • Guaranteed Monotonic Over All Operating Conditions
  • Wide +2.7V to +5.25V Supply Range
  • Rail-to-Rail Buffered Output Operation
  • Low Gain Error (Less Than ±0.5% FS) and Offset (Less Than ±10mV)
  • 30MHz 3-Wire SPI-/QSPI-/MICROWIRE-/DSP-Compatible Serial Interface
  • CMOS-Compatible Inputs with Hysteresis
  • Low Power Consumption (ISHDN = 2µA max)
MAX5138
Low-Power, Single, 16-/12-Bit, Buffered Voltage-Output DACs

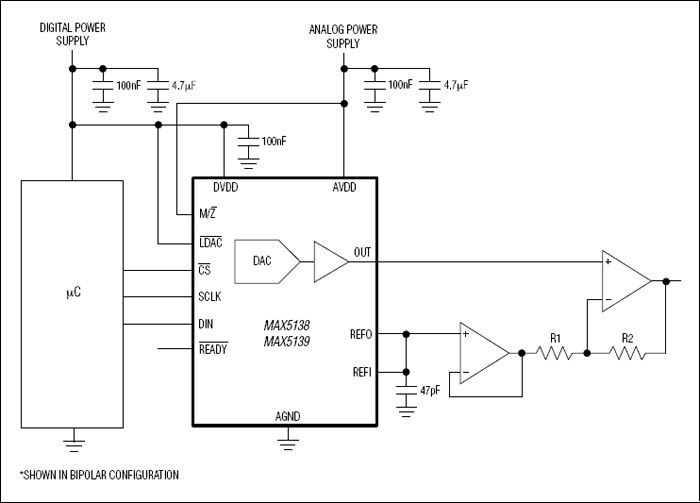

MAX5138, MAX5139: Typical Operating Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

Technical Articles 4

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

Software Development 1

Evaluation Kits

MAX5138EVKIT

Evaluation Kit for the MAX5138 and MAX5139

Buy Now View Details

Features and Benefits

  • Windows 2000/XP- and Windows Vista (32-Bit)-Compatible Software
  • Supports Standard SPI™ Interface
  • USB-PC Connection (Cable Included)
  • USB Powered
  • 8-Pin DAC Output Signal Header
  • Proven PCB Layout
  • Lead(Pb)-Free and RoHS Compliant
  • Fully Assembled and Tested

Product Details

The MAX5138 evaluation kit (EV kit) provides a proven design to evaluate the MAX5138 16-bit, low-power, digital-to-analog converter (DAC). The EV kit also includes Windows® 2000/XP- and Windows Vista®-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX5138.

The MAX5138 EV kit PCB comes with a MAX5138BGTE+ installed. Contact the factory for free samples of the pin-compatible MAX5139GTE+ to evaluate this device.

Applications

  • Automatic Test Equipment
  • Automatic Tuning
  • Communication Systems
  • Data Acquisition
  • Gain and Offset Adjustment
  • Portable Instrumentation
  • Power-Amplifier Control
  • Process Control and Servo Loops
  • Programmable Voltage and Current Sources
MAX5138EVKIT
Evaluation Kit for the MAX5138 and MAX5139
