MAX44251

The MAX44250/MAX44251/MAX44252 are 20V, ultra-precision, low-noise, low-drift amplifiers that offer nearzero DC offset and drift through the use of patented auto-correlating zeroing techniques. This method constantly measures and compensates the input offset, eliminating drift over time and temperature and the effect of 1/f noise. These single, dual, and quad devices feature rail-to-rail outputs, operate from a single 2.7V to 20V supply or dual ±1.35V to ±10V supplies and consume only 1.15mA per channel, while providing 5.9nV/ input-referred voltage noise. The ICs are unity-gain stable with a gain-bandwidth product of 10MHz.

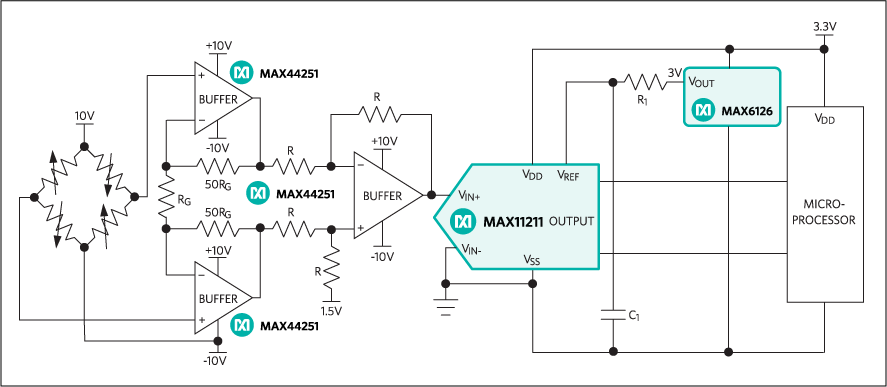

With excellent specifications such as offset voltage of 6µV (max), drift of 19nV/°C (max), and 123nV_P-P noise in 0.1Hz to 10Hz, the ICs are ideally suited for applications requiring ultra-low noise and DC precision such as interfacing with pressure sensors, strain gauges, precision weight scales, and medical instrumentation.

The ICs are available in 5-pin SOT23, 8-pin SOT23, 8-pin µMAX^®, and 14-pin SO packages and are rated over the -40°C to +125°C temperature range.
