MAX3762

Low-Power, 622Mbps Limiting Amplifiers with Chatter-Free Power Detect for LANs

Generates Only 15ps PWD and Has 4mV Input Sensitivity

Data Sheet (Rev. 4)
Viewing:

Part Details

  • Chatter-Free Power Detector with Programmable Loss-of-Signal Outputs
  • 4mV Input Sensitivity
  • PECL Data Outputs
  • Single 5V Power Supply
  • 250ps Output Edge Speed
  • Low 15ps Pulse-Width Distortion
  • TTL Loss-of-Signal Interface Logic—MAX3761
  • PECL Loss-of-Signal Interface Logic—MAX3762
MAX3762
Low-Power, 622Mbps Limiting Amplifiers with Chatter-Free Power Detect for LANs

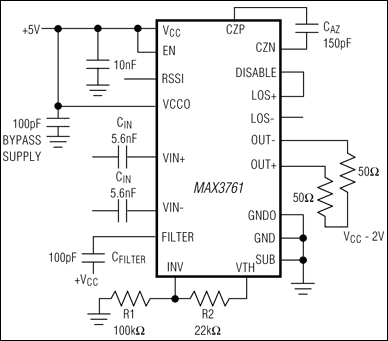

MAX3761, MAX3762: Typical Operating Circuit
