MAX3693

+3.3V, 622Mbps SDH/SONET 4:1 Serializer with Clock Synthesis and LVDS Inputs

Low-Power 622Mbps Mux

Data Sheet (Rev. 2)
Viewing:

Part Details

  • Single +3.3V Supply
  • 155Mbps (4-bit-wide) Parallel to 622Mbps Serial Conversion
  • Clock Synthesis for 622Mbps
  • 215mW Power
  • Multiple Clock Reference Frequencies (155.52MHz, 77.76MHz, 51.84MHz, 38.88MHz)
  • LVDS Parallel Clock and Data Inputs
  • Differential 3.3V PECL Serial-Data Output
MAX3693
+3.3V, 622Mbps SDH/SONET 4:1 Serializer with Clock Synthesis and LVDS Inputs

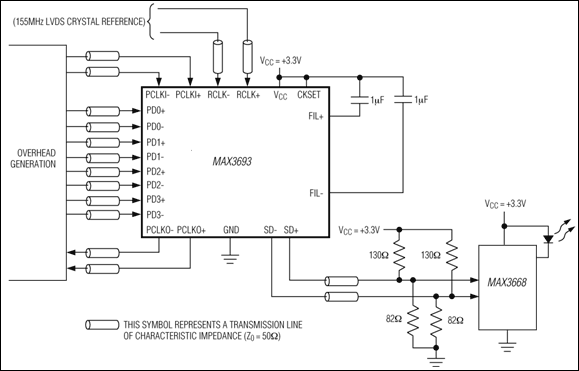

MAX3693: Typical Operating Circuit
