MAX31856
PRODUCTIONPrecision Thermocouple to Digital Converter with Linearization
Simplifies Thermocouple Designs with Integrated Automatic Cold Junction Compensation and Linearization Correction
- Part Models
- 2
- 1ku List Price
- Starting From $4.98
Part Details
- Provides High-Accuracy Thermocouple Temperature Readings
- Includes Automatic Linearization Correction for 8 Thermocouple Types
- ±0.15% (max, -20°C to +85°C) Thermocouple Full-Scale and Linearity Error
- 19-Bit, 0.0078125°C Thermocouple Temperature Resolution
- Internal Cold-Junction Compensation Minimizes System Components
- ±0.7°C (max, -20°C to +85°C) Cold-Junction Accuracy
- ±45V Input Protection Provides Robust System Performance
- Simplifies System Fault Management and Troubleshooting
- Detects Open Thermocouples
- Over- and Undertemperature Fault Detection
- 50Hz/60Hz Noise Rejection Filtering Improves System Performance
- 14-Pin TSSOP Package

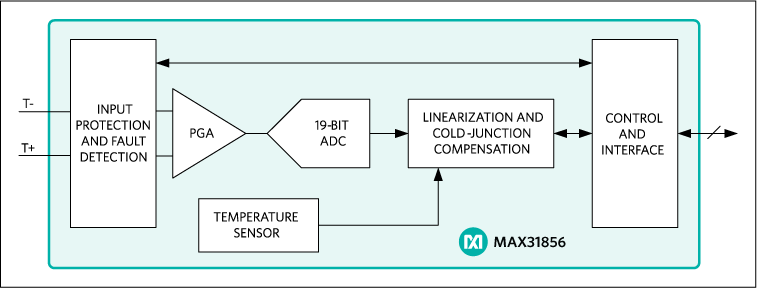

The MAX31856 performs cold-junction compensation and digitizes the signal from any type of thermocouple. The output data is formatted in degrees Celsius. This converter resolves temperatures to 0.0078125°C, allows readings as high as +1800°C and as low as -210°C (depending on thermocouple type), and exhibits thermocouple voltage measurement accuracy of ±0.15%. The thermocouple inputs are protected against overvoltage conditions up to ±45V.
A lookup table (LUT) stores linearity correction data for several types of thermocouples (K, J, N, R, S, T, E, and B). Line frequency filtering of 50Hz and 60Hz is included, as is thermocouple fault detection. A SPI-compatible interface allows selection of thermocouple type and setup of the conversion and fault detection processes.
Applications
- Industrial Equipment
- Industrial Ovens, Furnaces, and Environmental Chambers
- Temperature Controllers
Documentation
Data Sheet 1
Reliability Data 1
Design Note 1
Technical Articles 2
Video 1
Device Drivers 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX31856MUD+ | Thin Shrink Small-Outline Package | ||
| MAX31856MUD+T | Thin Shrink Small-Outline Package |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
| No Match Found | ||
|
Dec 11, 2018 - 1754N ASSEMBLY |
||
| MAX31856MUD+ | PRODUCTION | |
| MAX31856MUD+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Device Drivers 1
Evaluation Software 0
Can't find the software or driver you need?
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Analog to Digital Converters 1 | ||
| MAX31855 | PRODUCTION | Cold-Junction Compensated Thermocouple-to-Digital Converter |
Tools & Simulations
Software Development 2
IBIS Model 1
Evaluation Kits

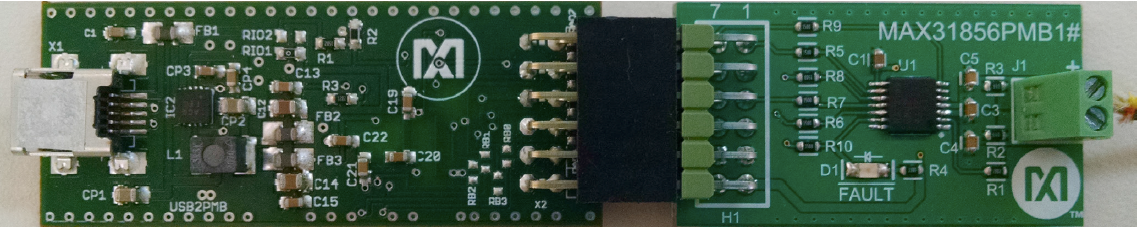

Evaluation System for MAX31856
