MAX25302B

PRODUCTION

2A Automotive Low Noise LDO Linear Regulators

Low 5.1µV_RMS Noise 2A LDO

Data Sheet (Rev. 1)

Part Models: 2
1ku List Price: Starting From $0.75

Viewing:

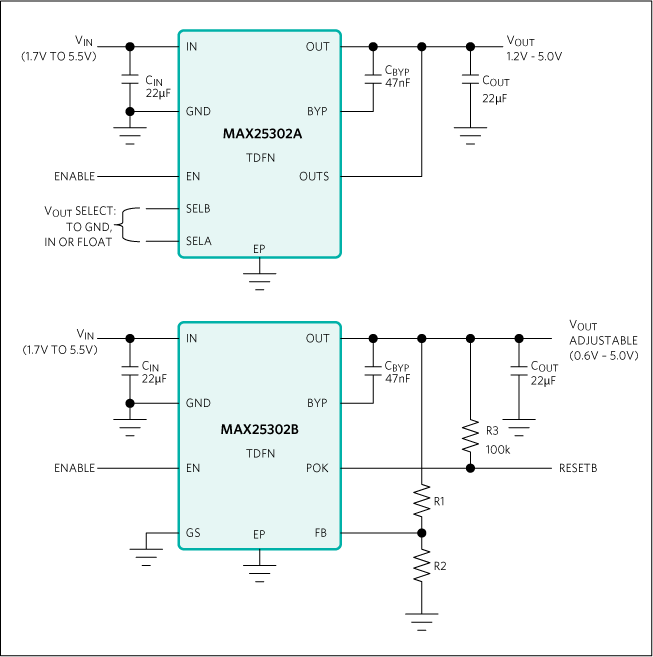

Part Details

Delivers Flexible Operating Range
- 1.7V to 5.5V Input Voltage Range
- 0.6V to 5.0V Programmable Output Voltage
- 2A Maximum Output Current
- 100mV Maximum Dropout at 2A Load
- < 1.5μA Shutdown Supply Current
Reduces Noise and Improves Accuracy
- ±1% DC Accuracy Over Load, Line, and Temperature
- 5.1µV_RMS Output Noise, 10Hz to 100kHz
- 1.3mA Quiescent Supply Current
- > 70dB PSRR at 10kHz
Enables Ease-of-Use and Robust Protection
- Stable with 8μF (Min) Output Capacitance
- Programmable Soft-Start Rate
- Overcurrent and Overtemperature Protection
- Output-to-Input Reverse-Current Protection
- Power-OK Status Pin
Reduces PC Board Area
- 3mm x 3.5mm 14-pin TDFN Package
AEC-Q100
- -40°C to 125°C Operating Temperature

Part Models: 2
1ku List Price: Starting From $0.75

Documentation

Data Sheet 1

MAX25302A-MAX25302B: 2A Automotive Low Noise LDO Linear Regulators Data Sheet (Rev.1) 11/08/2021

Reliability Data 1

MAX25302A_B Reliability Data 10/10/2022

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX25302BATD/V+	14-LFCSP-3X3.5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX25302BATD/V+T	14-LFCSP-3X3.5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
