MAX1619
PRODUCTIONRemote/Local Temperature Sensor with Dual Alarm Outputs and SMBus Serial Interface
Alarm Outputs Manage System Temperature to Ensure Performance, Reliability and Protection
- Part Models
- 2
- 1ku List Price
- Starting From $7.16
Part Details
- Two Channels Measure Both Remote and Local Temperatures
- No Calibration Required
- SMBus 2-Wire Serial Interface
- Programmable Under/Overtemperature Alarms
- Active-Low OVERT Output for Fan Control
- Supports SMBus Alert Response
- Supports Manufacturer and Device ID Codes
- Accuracy
- ±2°C (+60°C to +100°C, local)
- ±3°C (-40°C to +125°C, local)
- ±3°C (+60°C to +100°C, remote)
- 3µA (typ) Standby Supply Current
- 70µA (max) Supply Current in Auto-Convert Mode
- +3V to +5.5V Supply Range
- Write-Once Protection
- Small 16-Pin QSOP Package

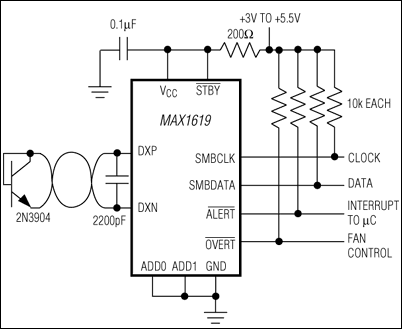

The MAX1619 is a precise digital thermometer that reports the temperature of both a remote sensor and its own package. The remote sensor is a diode-connected transistor-typically a low-cost, easily mounted 2N3904 NPN type-that replaces conventional thermistors or thermocouples. Remote accuracy is ±3°C for multiple transistor manufacturers, with no calibration needed. The remote channel can also measure the die temperature of other ICs, such as microprocessors, that contain an on-chip, diode-connected transistor.
The 2-wire serial interface accepts standard System Management Bus (SMBus™) Write Byte, Read Byte, Send Byte, and Receive Byte commands to program the alarm thresholds and to read temperature data. The data format is 7 bits plus sign, with each bit corresponding to 1°C, in two's complement format. Measurements can be done automatically and autonomously, with the conversion rate programmed by the user or programmed to operate in a single-shot mode. The adjustable rate allows the user to control the supply-current drain.
The MAX1619 is nearly identical to the popular MAX1617A, with the additional feature of an overtemperature alarm output (active-low OVERT) that responds to the remote temperature; this is optimal for fan control.
Applications
- Central Office Telecom Equipment
- Computers: Desktop, Workstation, Server
- Industrial Controls
- LAN Servers
- Multichip Modules
- Smart Battery Packs/Chargers
- Test and Measurement Equipment
