MAX16153

PRE-RELEASE

nanoPower Supervisor and Watchdog Timer

Ultra-Low-Current Supervisor with Dynamic Watchdog in Tiny SOT Package

Data Sheet (Rev. 8)

Viewing:

Part Details

400nA (typ) Supply Current
1.2V to 5.5V Operating Supply Range
Monitors Supply Voltage and Provides System Reset Signal
1.5V to 5V Input Threshold Range in 100mV Increments
Watchdog Function Detects Faulty Code Execution
Open-Drain Reset and Watchdog Outputs
Watchdog Timer Enable Input
6-Bump WLP Package

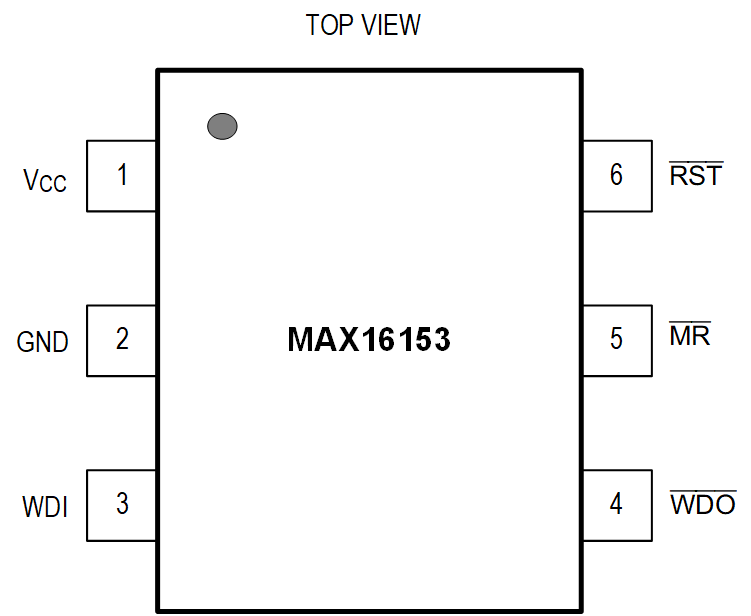

6-Pin SOT23 Package
-40°C to +125°C Operating Temperature Range

Documentation

Data Sheet 1

MAX16152-MAX16155: nanoPower Supervisor and Watchdog Timer Data Sheet (Rev.8) 04/17/2023

Technical Articles 2

Enable Manual Reset (MR) Functionality in MAX16154 and MAX16155 07/07/2021

Need a Watchdog for your Micro? Choose One that Comes on a Leash! 07/01/2020

This is the most up-to-date revision of the Data Sheet.
