MAX1574

PRODUCTION

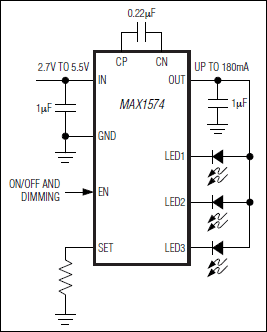

180mA, 1x/2x, White LED Charge Pump in 3mm x 3mm TDFN

White LED Charge Pump in 3mm x 3mm TDFN Achieves 83% Average Efficiency

Data Sheet (Rev. 0)

Part Models: 2
1ku List Price: Starting From $2.07

Viewing:

Part Details

Up to 180mA (60mA/LED) Drive Capability
83% Average Efficiency (P_LED / P_BATT) Over Li+ Battery Discharge
0.5% (typ) LED Current Matching
Adaptive 1x/2x Mode Switchover
Low Input Ripple and EMI
5% to 100% Dimming Through Single-Wire Serial Pulse Interface
Low 0.1µA Shutdown Current
2.7V to 5.5V Supply Voltage Range
Soft-Start Limits Inrush Current
Output Overvoltage Protection
Thermal-Shutdown Protection
10-Pin 3mm x 3mm TDFN Package

Part Models: 2
1ku List Price: Starting From $2.07

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX1574ETB+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1574ETB+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
