MAX15301AA02

InTune Automatically Compensated Digital PoL Controller with Driver and PMBus Telemetry

Only Digital Power IC To Meet Transient and Light-Load Efficiency Performance Metrics Set by Analog Controllers

Data Sheet (Rev. 0)

Viewing:

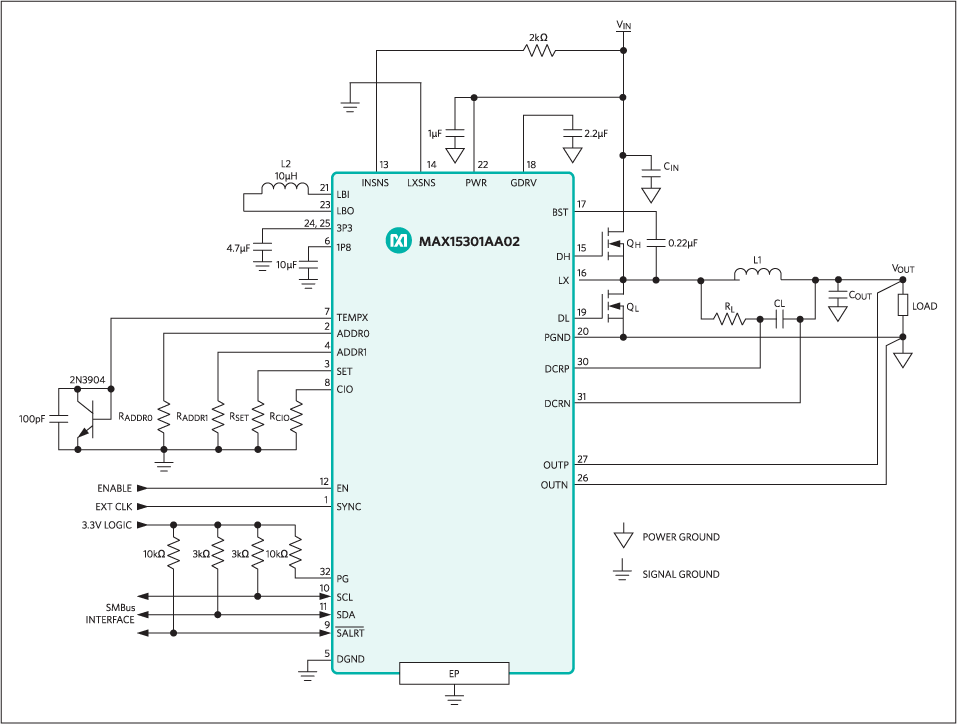

Part Details

InTune Automatic Compensation Ensures Stability While Optimizing Transient Performance
State-Space Compensation Results in Fast Transient Response with Reduced Output Capacitance
Differential Remote Voltage Sensing Enables ±1% V_OUT Accuracy over Temperature (-40°C to +85°C)
PMBus Interface for Configuration, Control, and Monitoring
Supports Voltage Positioning
High Output 2A/4A MOSFET Driver
- Adjustable Nonoverlap Timing
- Variable Gate-Drive Voltage
Wide Input Range of 4.5V to 14V
Efficient On-Chip BabyBuck Regulator for Self-Bias
Output Voltage Range from 0.5V to 5.25V
Startup into a Prebiased Output
Configurable Soft-Start and Soft-Stop Time
Fixed-Frequency Operation and Synchronization Flexible Sequencing and Fault Management
Pin-Strappable Configuration
- Output Voltage, SMBus Address, Switching Frequency, Current Limit
Out-of-the-Box Operation Enables Fast Prototyping

Documentation

Data Sheet 1

MAX15301AA02: InTune Automatically Compensated Digital PoL Controller with Driver and PMBus Telemetry Data Sheet (Rev.0) 03/26/2015

User Guide 2

UG-5981: PowerTool MAXPOWERTOOL002# Quick Start Guide 07/10/2023

UG-5793: MAX15301 PMBus Command Set User’s Guide 01/15/2014

Application Note 1

Current Calibration Procedure for InTune Digital Power 12/17/2014

Technical Articles 3

Power-Supply Solutions for Xilinx FPGAs 04/24/2012

Power-Supply Solutions for Altera FPGAs 04/24/2012

Digital Power Solution Optimizes Base-Station Operation 08/06/2012

Evaluation Design File 1

MAX15301EVKIT Gerber File - Design Files 10/19/2023

This is the most up-to-date revision of the Data Sheet.
