MAX14827

NOT RECOMMENDED FOR NEW DESIGNS

IO-Link Device Transceiver

Tiny, Low-Power Dual IO-Link Transceiver

Data Sheet (Rev. 1)

Part Models: 4
1ku List Price: Starting From $4.39

Viewing:

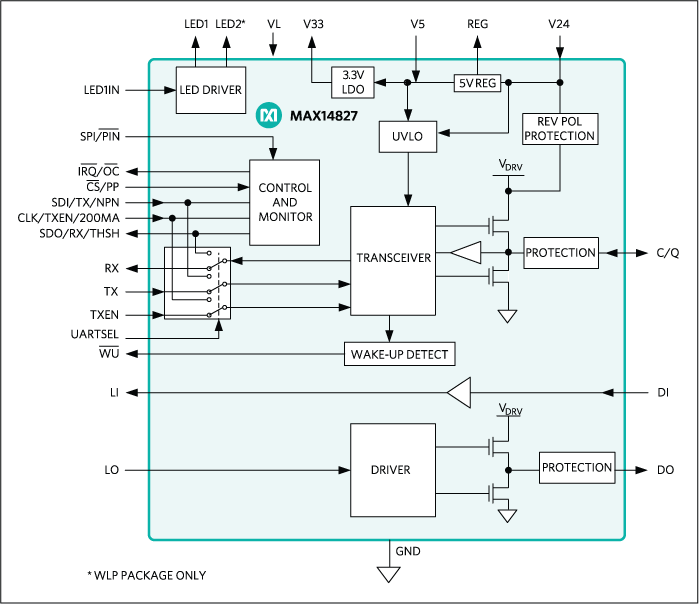

Part Details

High Configurability and Integration Reduce SKUs
- IO-Link Compliant Transceiver
- Auxiliary 24V Digital Output and Input
- 2.3Ω (typ) Driver On-Resistance
- Selectable Driver Current: 50mA to 250mA
- SPI or Pin-Control Interface for Configuration and Monitoring
- Multiplexed SPI/UART Interface Option
- 5V and 3.3V Linear Regulators
- Optional External Transistor Supports Higher Regulator Load Capability
- Integrated LED Driver
Integrated Protection Enables Robust Communication
- 65V Absolute Maximum Ratings on Interface and Supply Pins Allows for Flexible TVS Protection
- 9V to 60V Specified Operation
- Glitch Filters for Improved Burst Resilience and Noise
- Selectable Over-Current Auto-Retry Timing
- Thermal Shutdown Auto-Retry Cycling
- Hot-Plug Supply Protection up to 36V
- Reverse Polarity Protection of All Sensor Interface Inputs/Outputs
- -40°C to +125°C Operating Temperature Range

Part Models: 4
1ku List Price: Starting From $4.39

Documentation

Data Sheet 1

MAX14827: IO-Link Device Transceiver Data Sheet (Rev.1) 02/18/2019

User Guide 1

UG-6248: Evaluating the MAX14827 with mbed User Guide 04/11/2016

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14827ATG+	24-TQFN-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14827ATG+T	24-TQFN-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14827AWA+	25-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14827AWA+T	25-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Interface Transceivers & Isolators 1
MAX14826	PRODUCTION	IO-Link Device Transceiver

Tools & Simulations

Software Development 2

IBIS Model 1

MAX14827 IBIS Model
