MAX14626
PRODUCTIONHigh-Voltage Reverse-Input-Capable 4–20mA Current Loop Protector
Industry's First Integrated 4mA to 20mA Current Loop Protector for Industrial Analog Input Modules
- Part Models
- 2
- 1ku List Price
- Starting From $0.80
Part Details
- High Performance
- Low On-Resistance 25Ω (typ)
- Accurate ±10% Current Limit
- +2.3V to +40V Wide Supply Voltage Range
- Low Operating Current
- Ultra-Low Temperature Coefficient
- Robust Protection for Sensors
- Avoids Power Dissipation Issues Compared to Discrete Solutions
- Thermal Shutdown
- Reverse Input Protection
- Saves Space in Compact Systems
- Eliminates Need for Discrete PTC Poly Switch, Zener Diodes, and Resistors
- 3mm x 3mm, 6-Pin TDFN Package

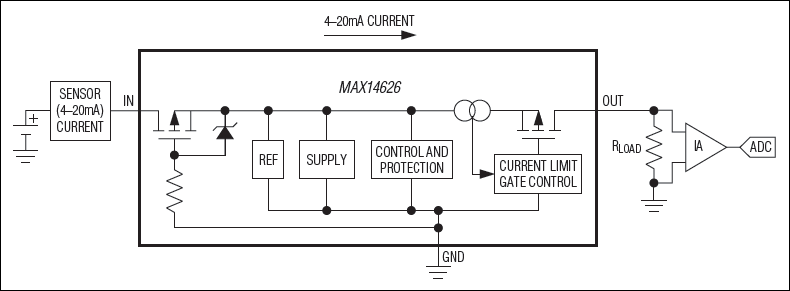

The MAX14626 current loop protector features a current-limit switch to prevent damage to the analog input module from sensor failure. The current-limit switch features a 25Ω (typ) on-resistance and operates from a +2.3V to +36V input voltage range. The accurate current limit is set to 30mA, making the part ideal for protecting the sensor reading devices.
The MAX14626 handles an overcurrent event in a continuous current-limit mode. Additional safety features include thermal shutdown to prevent overheating and reverse-input blocking to protect from being reverse connected into the sensor.
The device is available in a tiny 6-pin (3mm x 3mm), TDFN exposed pad package and is specified over the -40°C to +85°C extended temperature range.
Applications
- Industrial Current Loop Control
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX14626ETT+ | 6-LFCSP-3X3X0.75 | ||
| MAX14626ETT+T | 6-LFCSP-3X3X0.75 |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits
Evaluation Kit for the MAX14626
Reference Designs
16-Bit Four-Channel Analog Input Micro PLC Card
Part Used
Design & Integration Tools
4-Channel Analog Input/Output
Part Used
Design & Integration Tools
