MAX11160
PRODUCTION16-Bit, 500ksps, +5V SAR ADC with Internal Reference in µMAX
ADC with Internal Reference in Industry-Standard 10-Pin Package
- Part Models
- 2
- 1ku List Price
- Starting From $9.69
Part Details
- High DC/AC Accuracy Improves Measurement Quality
- 16-Bit Resolution with No Missing Codes
- 500ksps Throughput Rates Without Pipeline Delay/Latency
- 91.7dB SNR and -103dB THD at 10kHz
- 0.5 LSBRMS Transition Noise
- ±0.5 LSB DNL (typ) and ±1.3 LSB INL (typ)
- Highly Integrated ADC Saves Cost and Space
- ±7ppm/°C Internal Reference
- Internal Reference Buffer
- Flexible and Low Power Supply Saves Space and Cost
- +5V Analog and +2.3V to +5V Digital Supply
- 35.4mW Power Consumption at 500ksps
- 10µA in Shutdown Mode
- Multi-Industry Standard Serial Interface and Small Package Reduces Size
- SPI/QSPI™/MICROWIRE®/DSP-Compatible
- 3mm x 5mm, Tiny 10-Pin µMAX Package

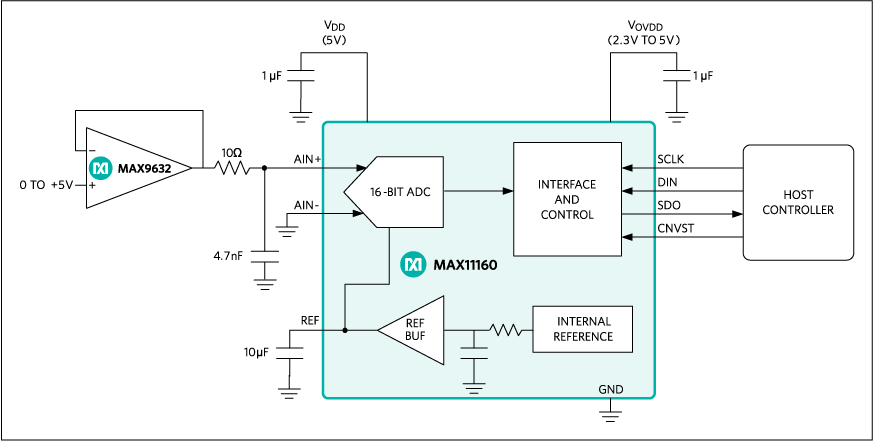

The MAX11160 is a 16-bit, 500ksps, SAR ADC offering excellent AC and DC performance with true unipolar input range, internal reference, and small size. The MAX11160 measures a +5V (0 to 5V) input range and can operate from a single 5V supply. The MAX11160 integrates a low drift reference with internal buffer, saving the cost and space of an external reference.
This ADC achieves 91.7dB SNR and -103dB THD. The MAX11160 guarantees 16-bit no-missing codes and ±1.3 LSB INL (typ).
The MAX11160 communicates using an SPI-compatible serial interface at 2.3V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.
The MAX11160 is offered in a 10-pin, 3mm x 5mm, µMAX® package and is specified over the -40°C to +85°C temperature range.
