LTM8061

RECOMMENDED FOR NEW DESIGNS

32V, 2A μModule (Power Module) Li-Ion/Polymer Battery Charger

Data Sheet

Part Models: 8
1ku List Price: Starting From $10.42

Viewing:

Part Details

Wide Input Voltage Range: 4.95V to 32V (40V Absolute Maximum)
Float Voltage Options:
- 1-Cell: 4.1V, 4.2V
- 2-Cell: 8.2V, 8.4V
Programmable Charge Current: Up to 2A
User-Selectable Charge Termination: C/10 or Onboard Termination Timer
Dynamic Charge Rate Programming/Soft-Start Pin
Programmable Input Current Limit
Optional Reverse Input Protection
NTC Resistor Temperature Monitor
0.5% Float Voltage Accuracy
Bad-Battery Detection with Auto-Reset

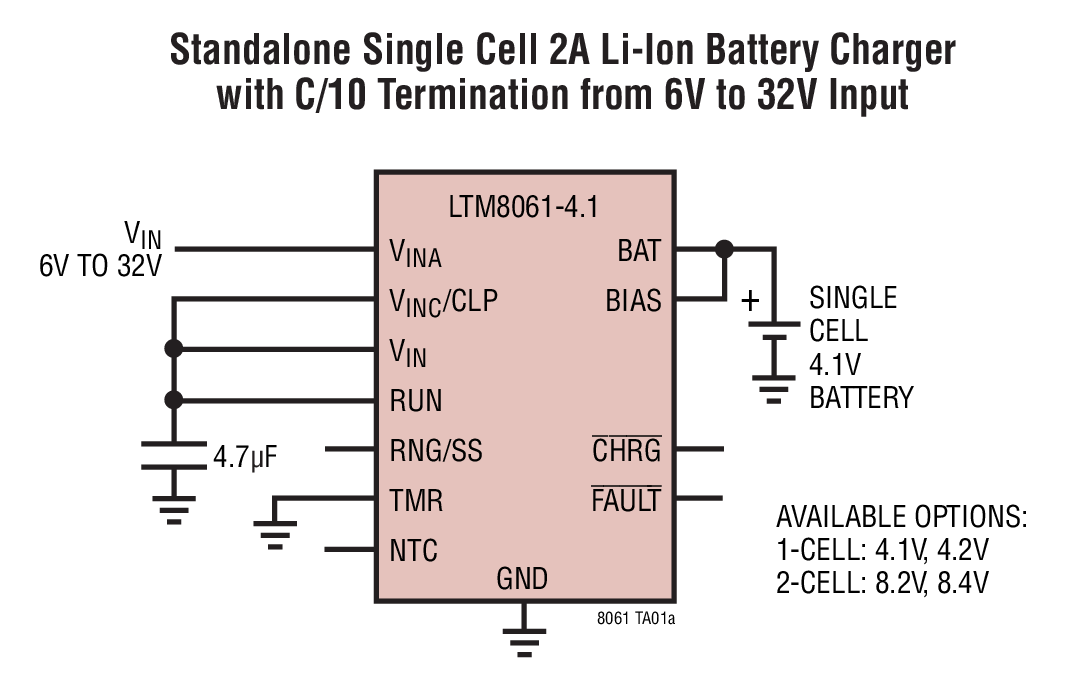

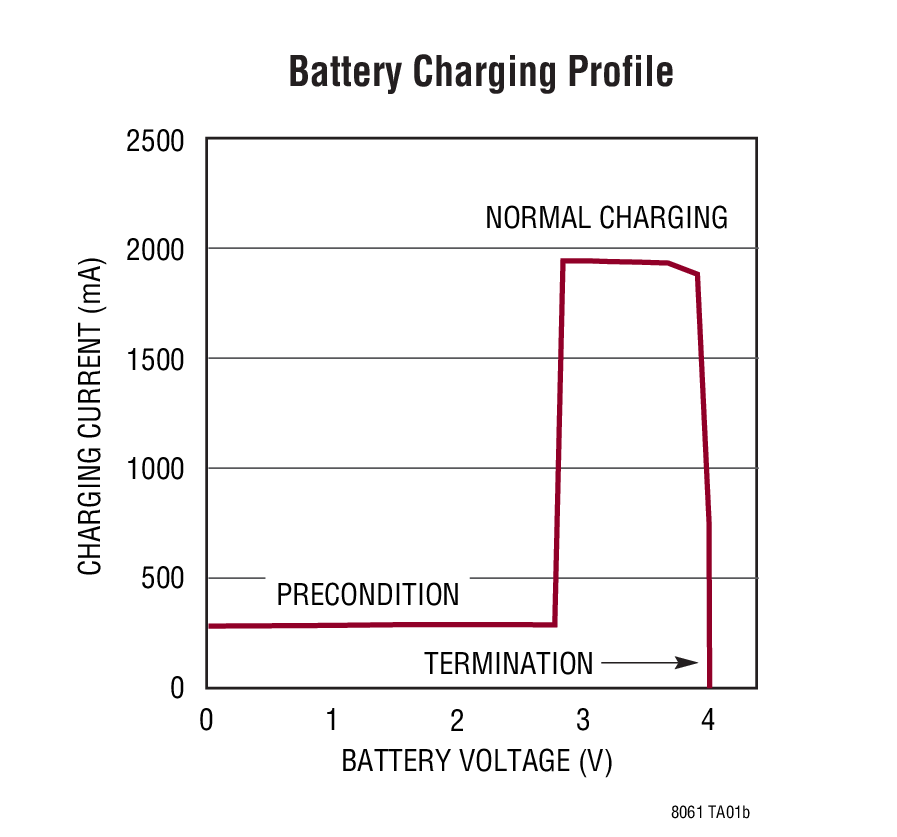

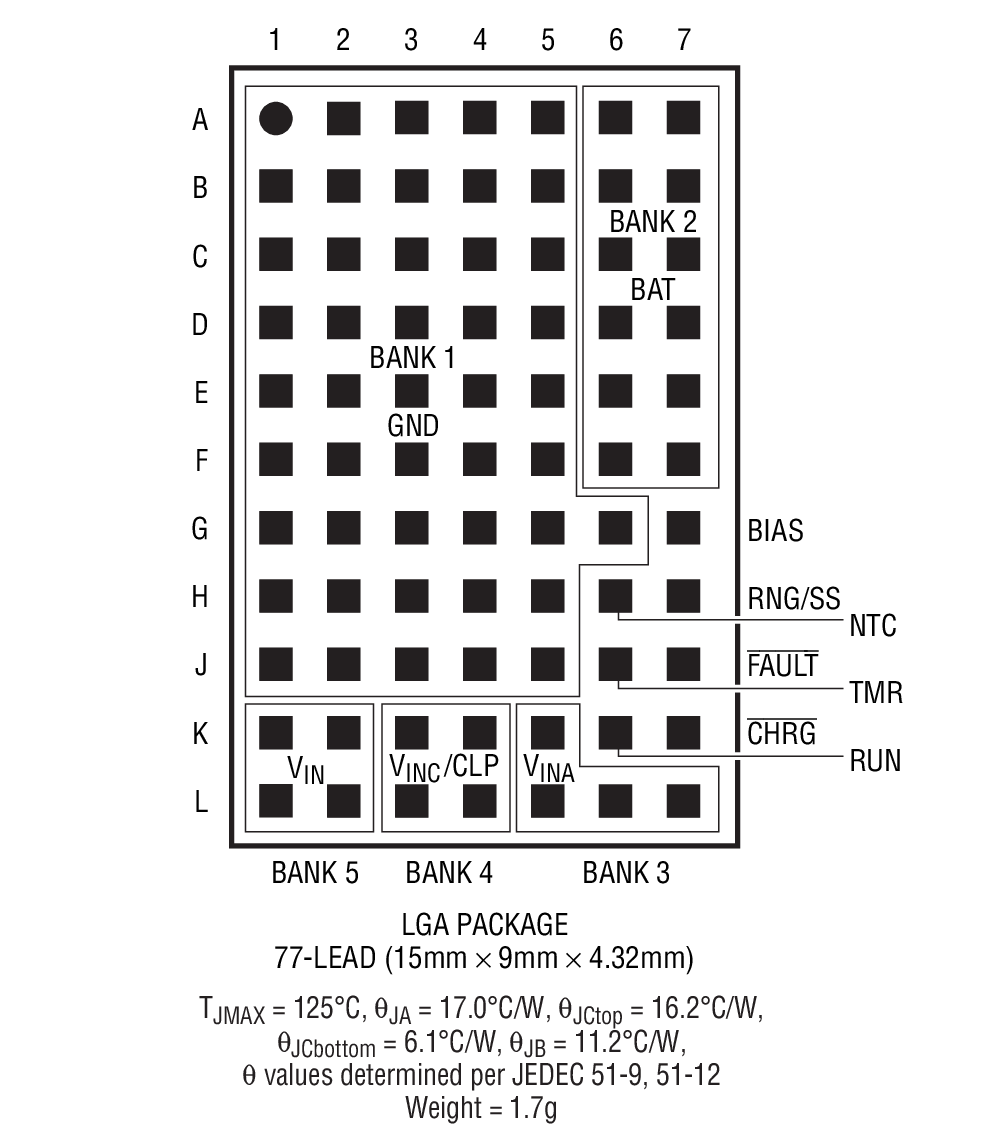

Tiny, Low Profile (9mm × 15mm × 4.32mm) Surface Mount LGA Package

Part Models: 8
1ku List Price: Starting From $10.42

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM8061EV-4.1#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061EV-4.2#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061EV-8.2#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061EV-8.4#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061IV-4.1#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061IV-4.2#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061IV-8.2#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM8061IV-8.4#PBF	77-Lead LGA (15mm x 9mm x 4.32mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 13, 2021 - 21_0268 LTM8025, LTM8033, LTM8050, LTM8061 and LTM8062: Notification of qualification of Substrate, mold compound and Inductor
		PCN21_0268_Form Material_Report Qualification Results Summary Qualification Results Summary
LTM8061EV-4.1#PBF	PRODUCTION
LTM8061EV-4.2#PBF	PRODUCTION
LTM8061EV-8.2#PBF	PRODUCTION
LTM8061EV-8.4#PBF	PRODUCTION
LTM8061IV-4.1#PBF	PRODUCTION
LTM8061IV-4.2#PBF	PRODUCTION
LTM8061IV-8.2#PBF	PRODUCTION
LTM8061IV-8.4#PBF	PRODUCTION
Jul 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report Delta Qualification Matrix
LTM8061EV-4.1#PBF	PRODUCTION
LTM8061EV-4.2#PBF	PRODUCTION
LTM8061EV-8.2#PBF	PRODUCTION
LTM8061EV-8.4#PBF	PRODUCTION
LTM8061IV-4.1#PBF	PRODUCTION
LTM8061IV-8.2#PBF	PRODUCTION
LTM8061IV-8.4#PBF	PRODUCTION
Feb 28, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTM8061EV-4.1#PBF	PRODUCTION
LTM8061EV-4.2#PBF	PRODUCTION
LTM8061EV-8.2#PBF	PRODUCTION
LTM8061EV-8.4#PBF	PRODUCTION
LTM8061IV-4.1#PBF	PRODUCTION
LTM8061IV-4.2#PBF	PRODUCTION
LTM8061IV-8.2#PBF	PRODUCTION
LTM8061IV-8.4#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Digital Power System Managers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Dual-Supply Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
PowerPath, Ideal Diodes, and Load Switches 2
LTC4359	RECOMMENDED FOR NEW DESIGNS	Ideal Diode Controller with Reverse Input Protection
LTC4417	RECOMMENDED FOR NEW DESIGNS	Prioritized PowerPath^™ Controller

Surge Stopper, Overvoltage, and Overcurrent Protection 1
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTM8061-4.1
LTM8061-4.2
LTM8061-8.2
LTM8061-8.4

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

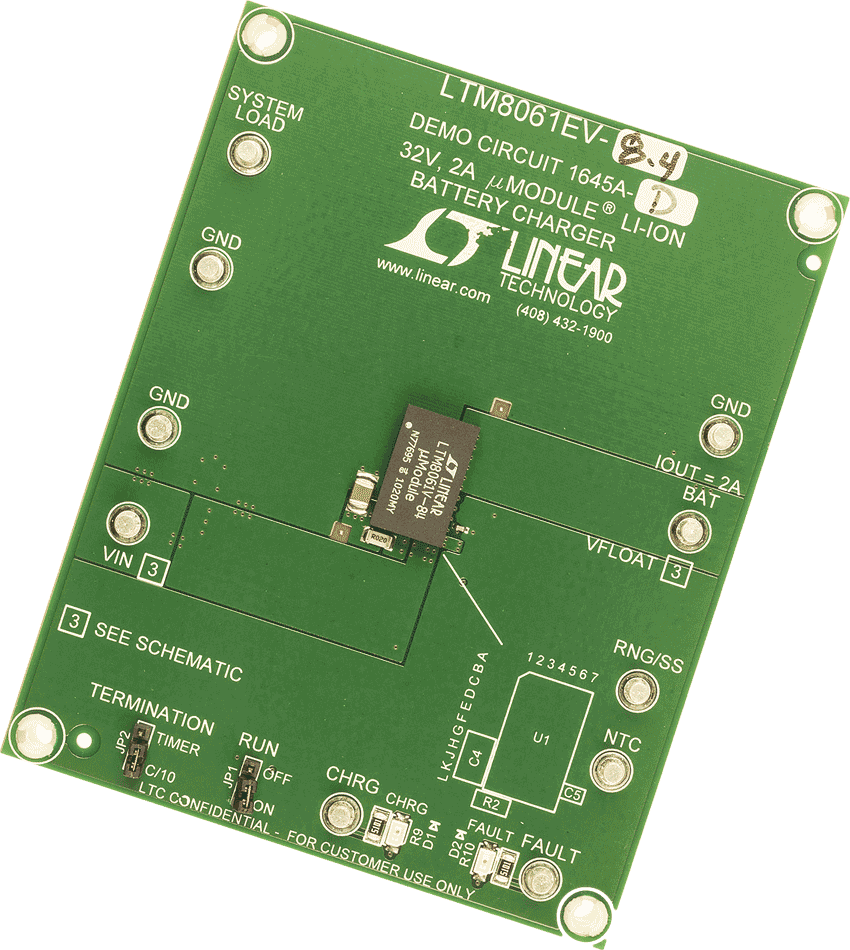

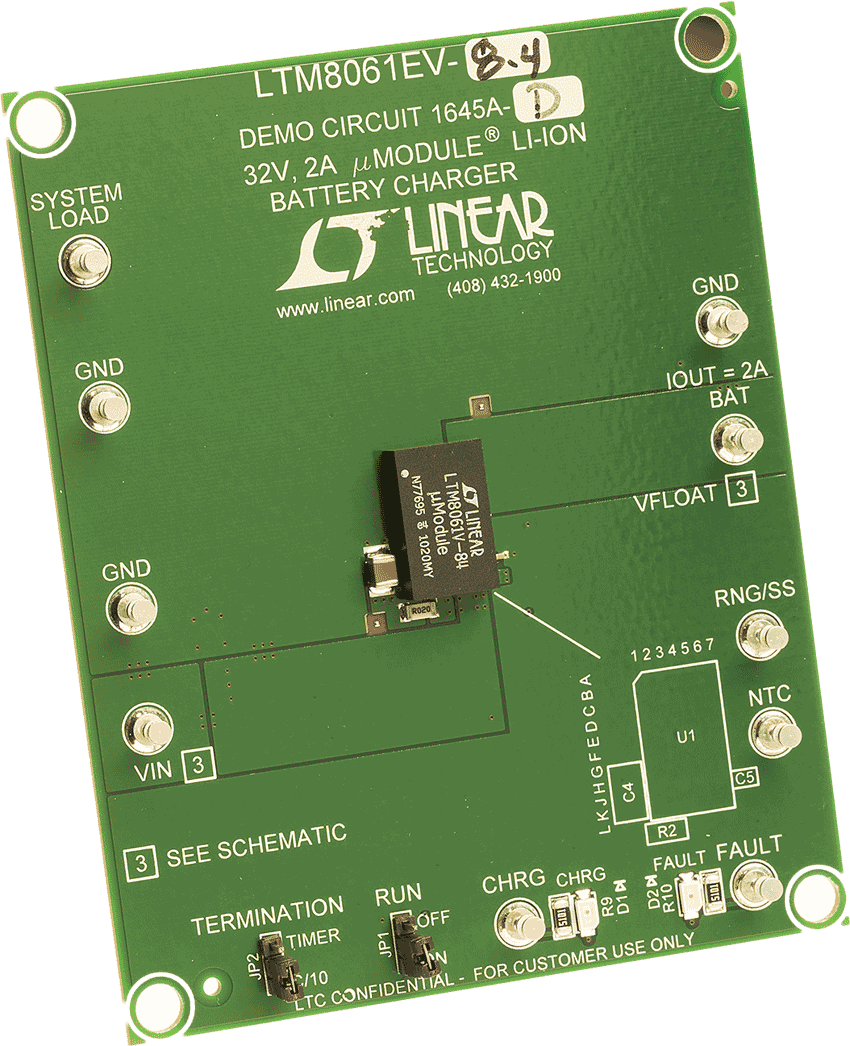

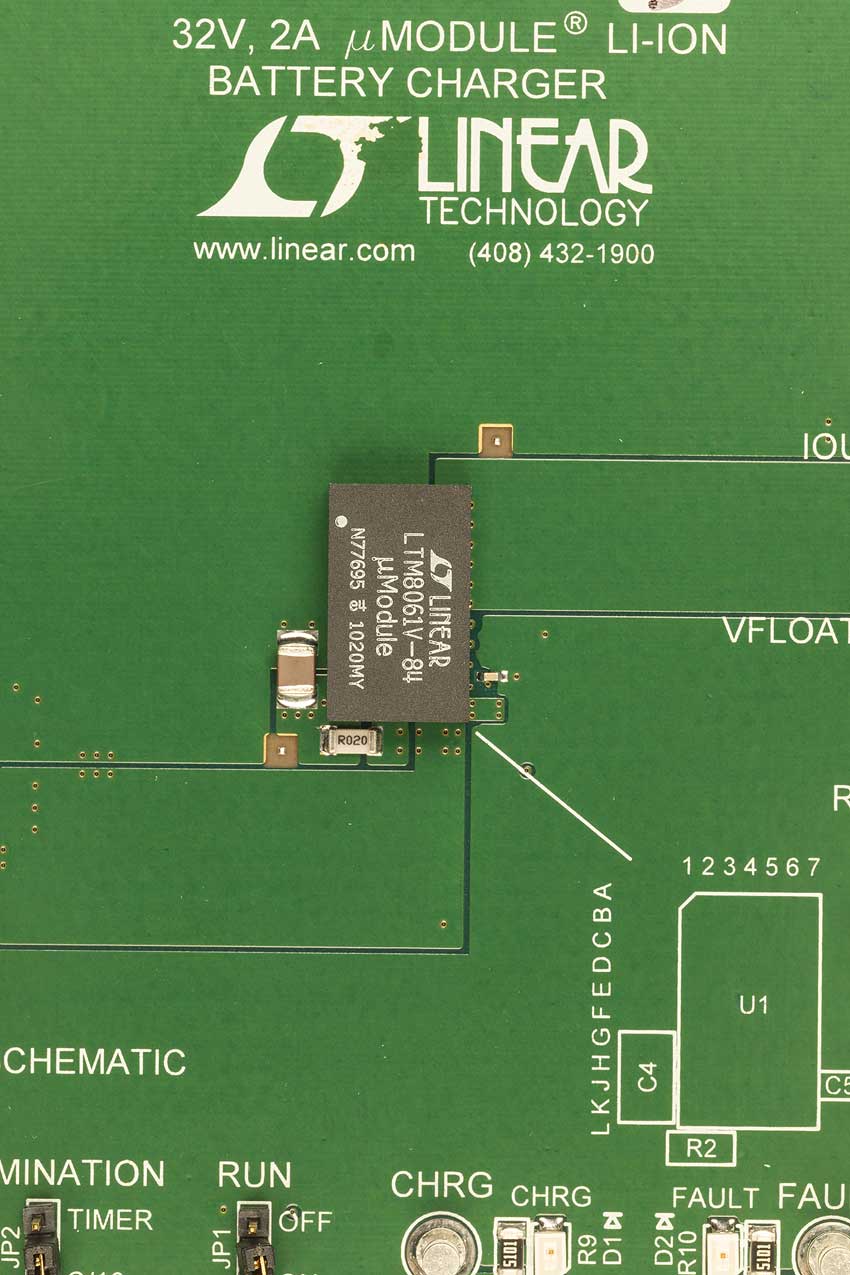

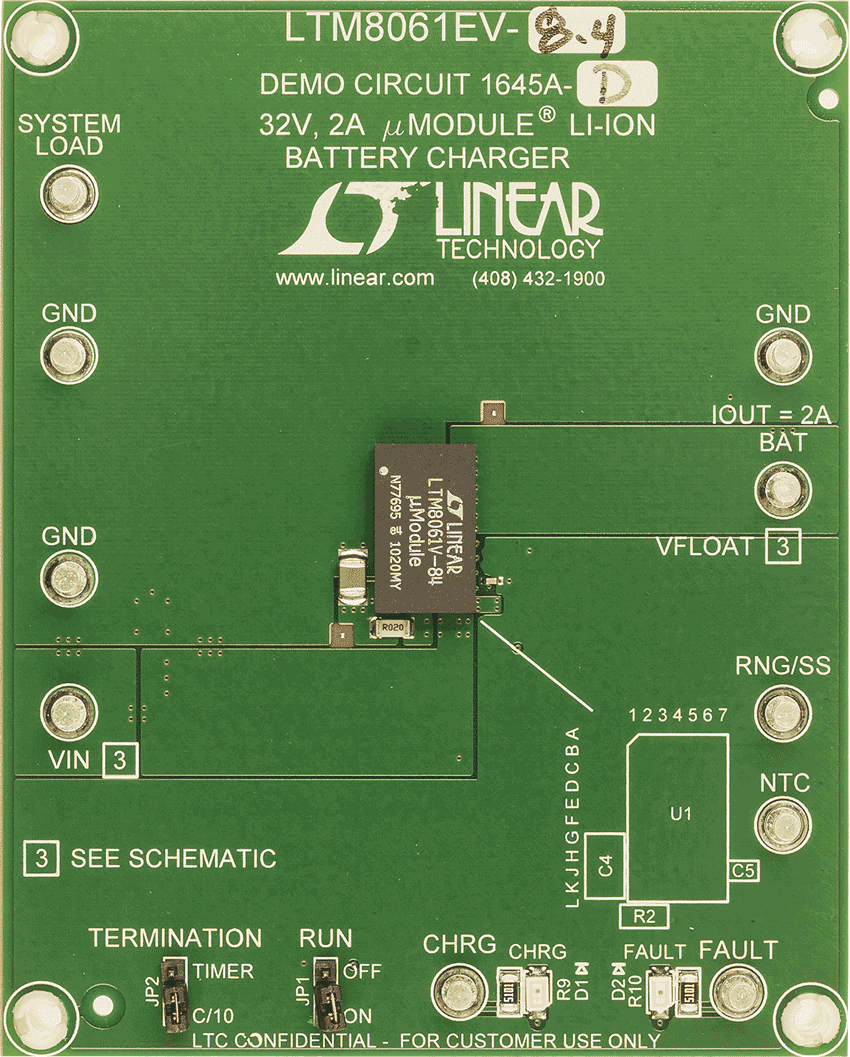

LTM8061-4.2 Demo Board | 6.5V ≤ VIN ≤ 32V, 2A µModule Buck Li-Ion Battery Charger, VOUT = 4.2V @ 2A

Buy Now View Details

Product Details

Demonstration circuits 1645A-A, 1645A-B, 1645A-C and 1645A-D feature the LTM8061, a 32V, 2A μModule^® Li-Ion battery charger. Operating from a 6.5V to 32V input source, the 1645A-A and 1645A-B demo circuits charge single cell Li-Ion batteries to float voltages of 4.1V or 4.2V respectively. The 1645A-C and 1645A-D demo circuits operate from a 12V to 32V input source, and charge dual cell Li-Ion battery packs to float voltages of 8.2V or 8.4V. JP1 turns the converter on or off. JP2 allows for easy selection of C/10 or timer charge termination.

Resources

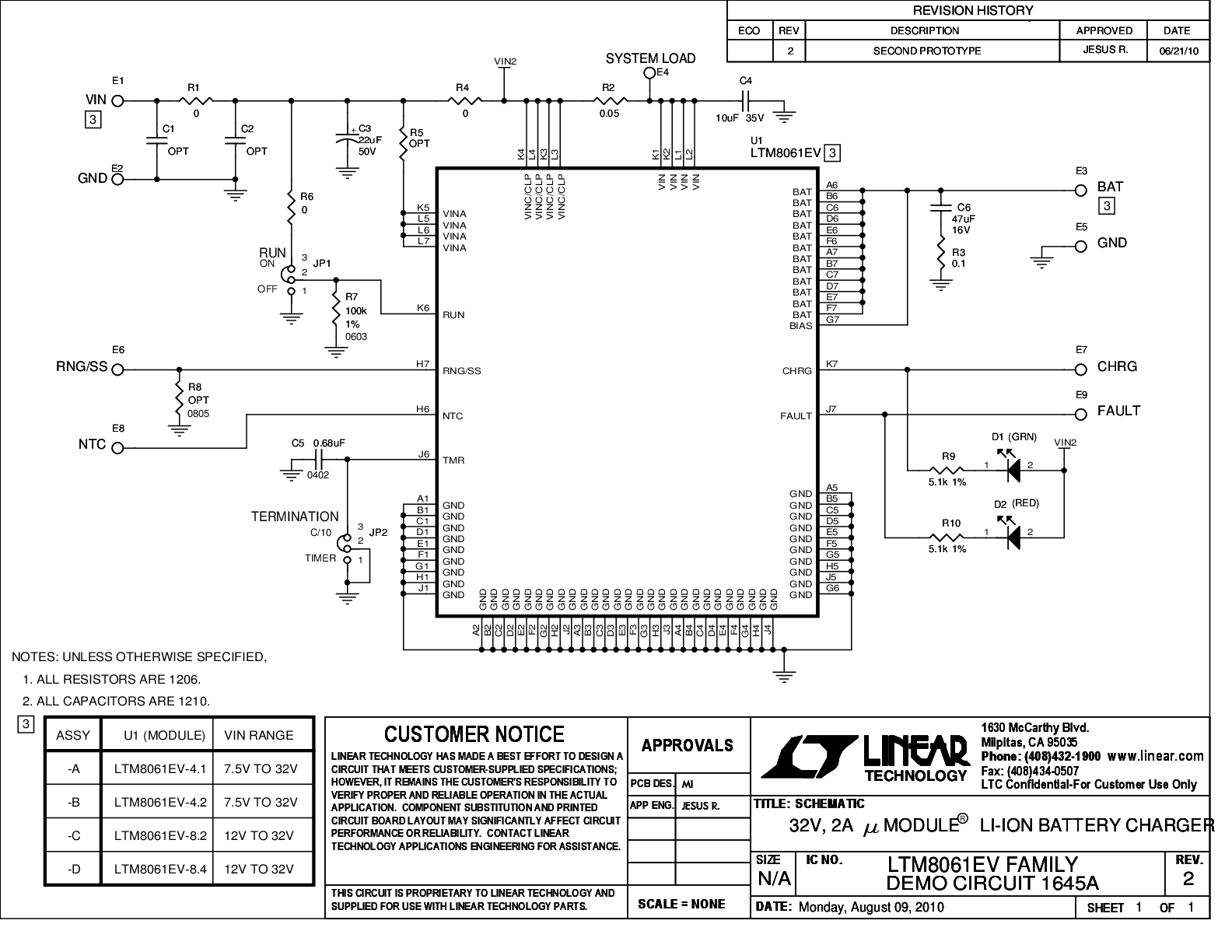

DC1645A - Schematic
2/16/2012

DC1645A - Design Files
7/28/2011

DC1645A - Demo Manual
12/14/2010

LTM8061-4.1 Demo Board | 6.5V ≤ VIN ≤ 32V, 2A µModule Buck Li-Ion Battery Charger, VOUT = 4.1V @ 2A

Buy Now View Details

Product Details

Resources

DC1645A - Schematic
2/16/2012

DC1645A - Design Files
7/28/2011

DC1645A - Demo Manual
12/14/2010

LTM8061-8.4 Demo Board | 12V ≤ VIN ≤ 32V, 2A µModule Buck Li-Ion Battery Charger, VOUT = 8.4V @ 2A

Buy Now View Details

Product Details

Demonstration circuits 1645A-A, 1645A-B, 1645A-C and 1645A-D feature the LTM8061, a 32V, 2A μModule^®Li-Ion battery charger. Operating from a 6.5V to 32V input source, the 1645A-A and 1645A-B demo circuits charge single cell Li-Ion batteries to float voltages of 4.1V or 4.2V respectively. The 1645A-C and 1645A-D demo circuits operate from a 12V to 32V input source, and charge dual cell Li-Ion battery packs to float voltages of 8.2V or 8.4V. JP1 turns the converter on or off. JP2 allows for easy selection of C/10 or timer charge termination.
