LTM8027

RECOMMENDED FOR NEW DESIGNS

60V, 4A DC/DC μModule (Power Module) Regulator

Data Sheet
Part Models
8
1ku List Price
Starting From $19.42
Viewing:

Part Details

  • Complete Switch Mode Power Supply
  • Wide Input Voltage Range: 4.5V to 60V
  • (7.5V Minimum Voltage to Start)
  • Wide Output Voltage Range: 2.5V to 24V (See Table 2)
  • 4A Output Current
  • Programmable Soft-Start
  • 9μA Shutdown Supply Current
  • Selectable Switching Frequency Current Mode Control
  • Up to 95% Efficiency
  • SnPb (BGA) or RoHS Compliant (LGA and BGA) Finish

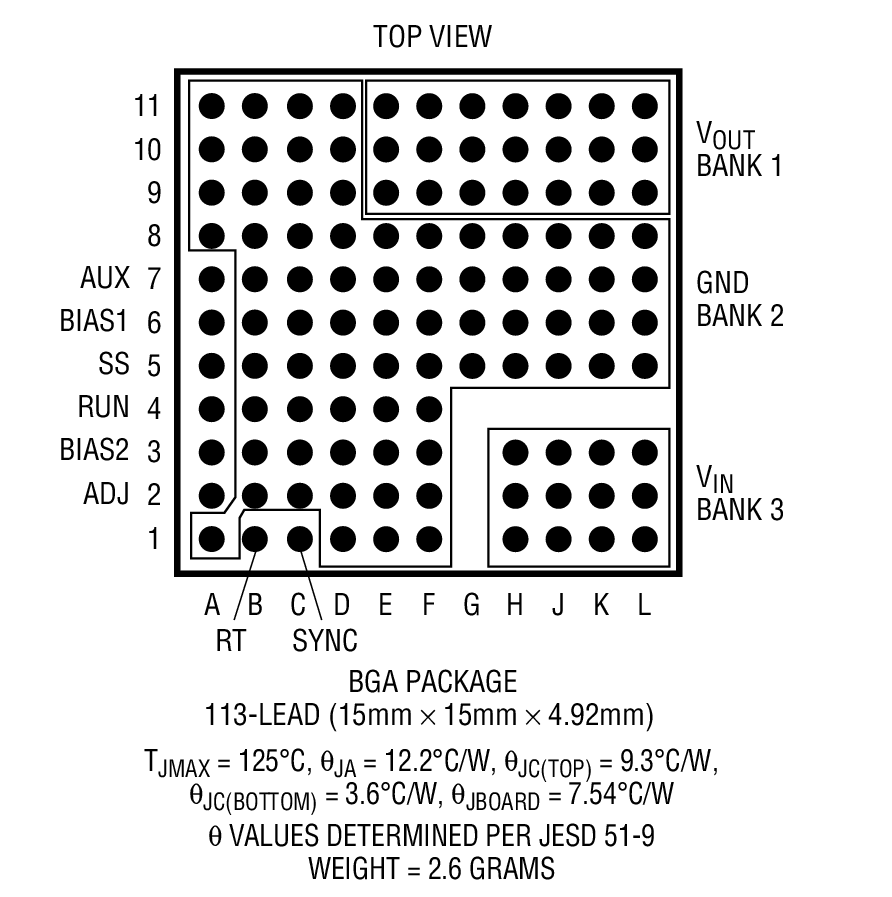

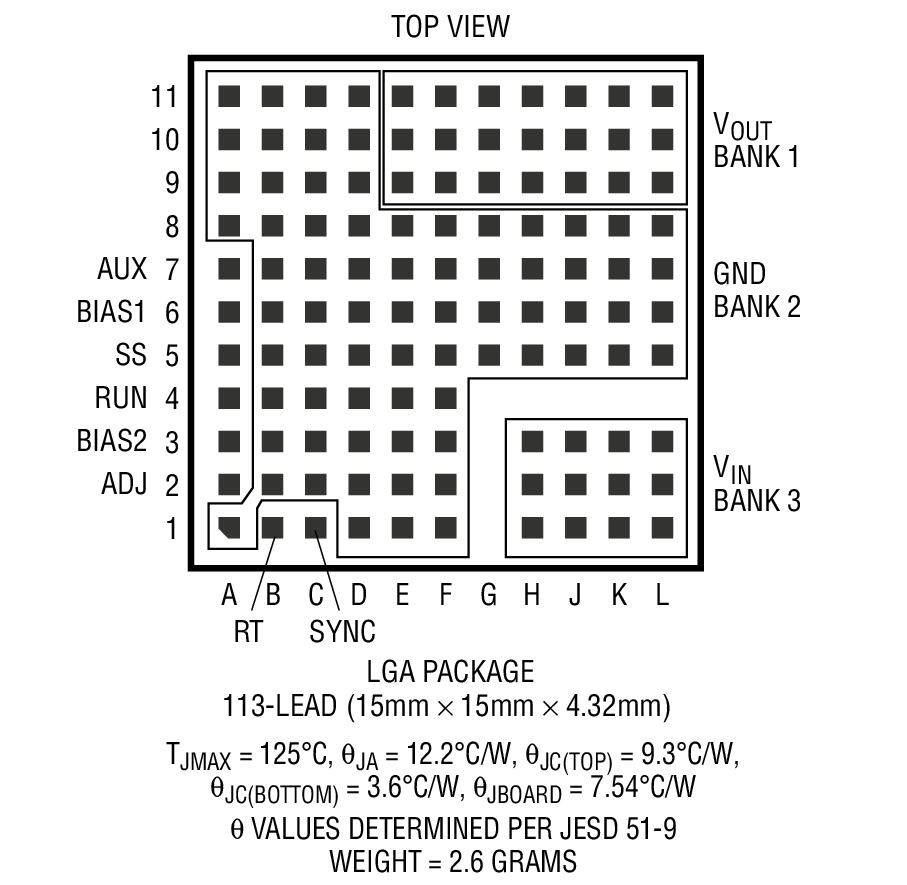

  • Surface Mount LGA (15mm × 15mm × 4.32mm) and (15mm × 15mm × 4.92mm) BGA Packages
LTM8027
60V, 4A DC/DC μModule (Power Module) Regulator

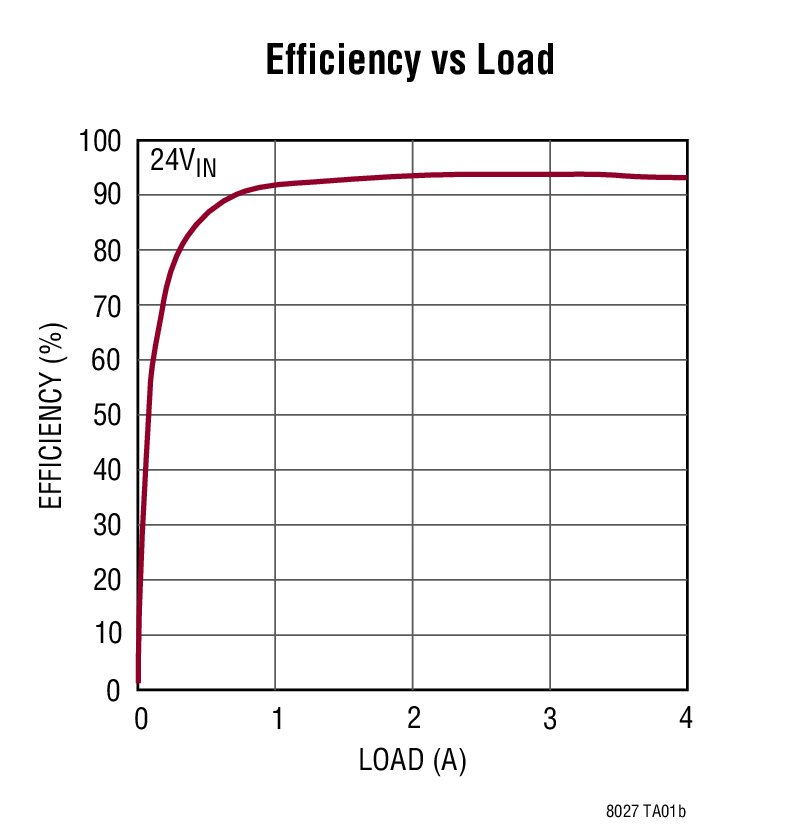

48W, 16VIN to 60VIN DC/DC μModule® Regulator Efficiency vs Load Product Package 1 Product Package 2
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 2

Design Note 1

Technical Articles 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Circuit Monitors 1
LTC2960
RECOMMENDED FOR NEW DESIGNS 36V Nano-Current Two-Input Voltage Monitor
Oscillators 1
LTC6909
PRODUCTION 1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation
Power System Managers & Sequencers 1
LTC2974
RECOMMENDED FOR NEW DESIGNS 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LTC4364
RECOMMENDED FOR NEW DESIGNS Surge Stopper with Ideal Diode
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

  • LTM8027

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
schematic 6
DC2125A

LT4275/LT4321/LTM8027 Demo Board | LTPoE++ PD Plus Diode Bridge and DC/DC Controller

Buy Now View Details

Product Details

Demonstration circuit 2125 is a small, highly-integrated, non-isolated PoE Powered Device (PD) solution. It features a PD Interface Controller (LT4275), which interfaces with a PoE Power Sourcing Equipment (PSE), an ideal diode bridge controller (LT4321), which minimizes bridge losses, and a DC/DC μModule® regulator (LTM8027).

eval board
schematic 7
schematic 8
schematic 9
schematic 10
schematic 11
DC1307B

LTM8027EV Demo Board | 16V ≤ VIN ≤ 60V, VOUT = 12V @ 4A

Buy Now View Details

Product Details

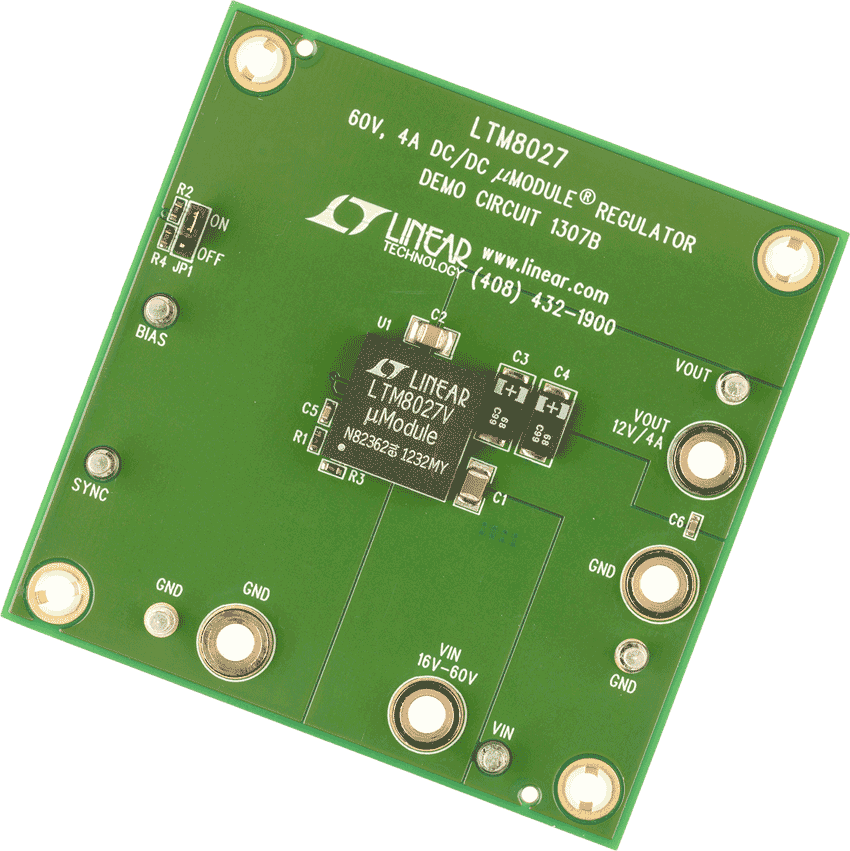

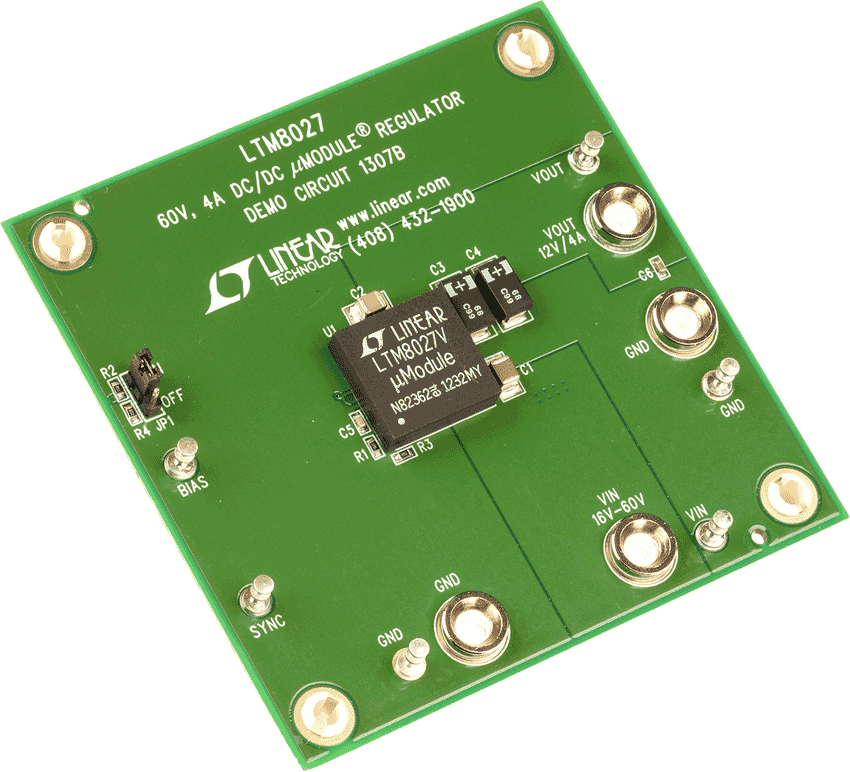

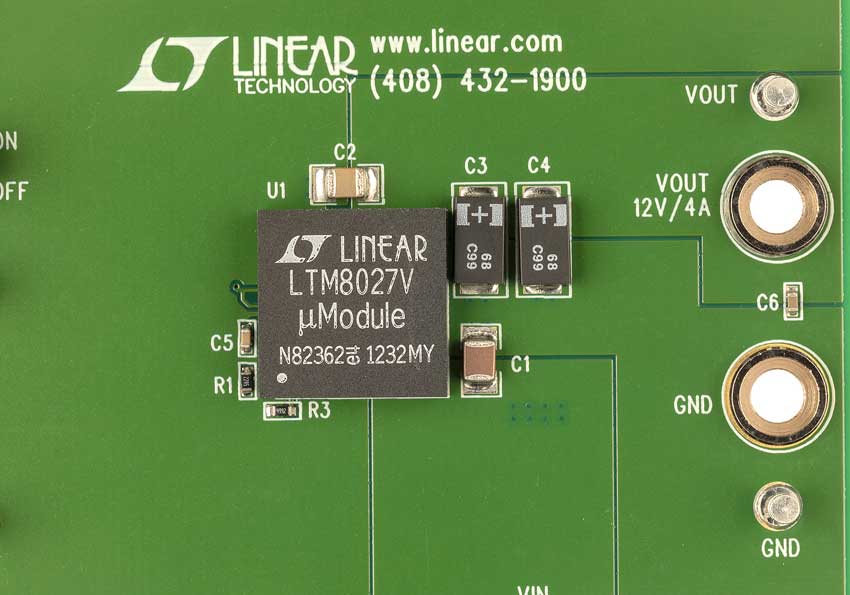

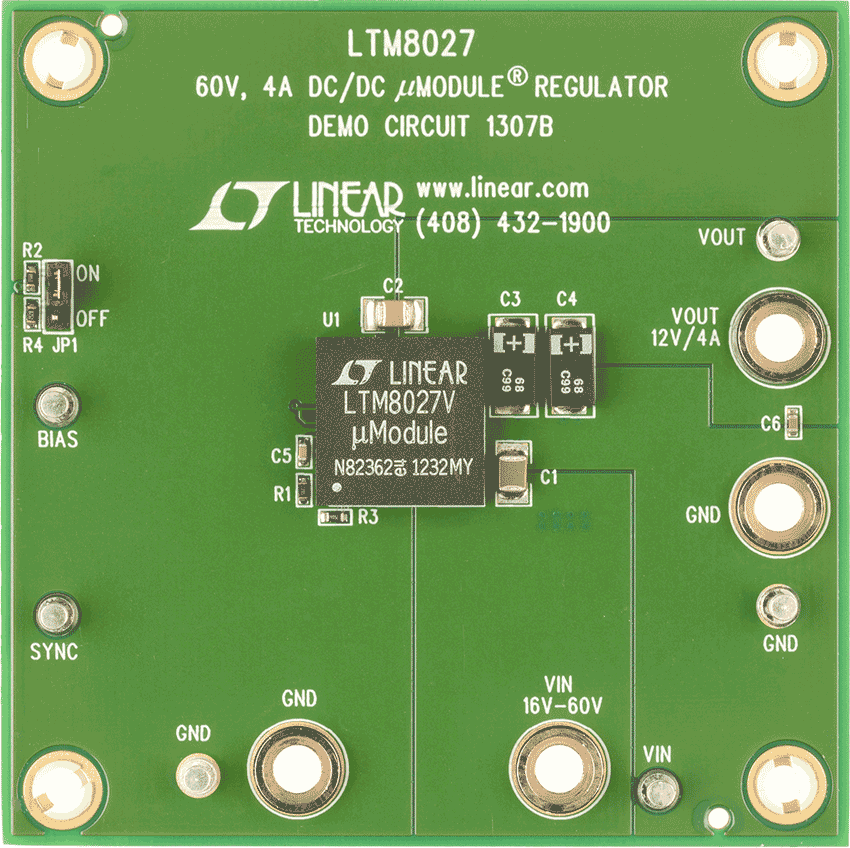

Demonstration circuit 1307B features the LTM8027 configured to deliver 12V/4A from a 16V to 60V input. The wide input range of the LTM8027 allows a variety of input sources such as automotive batteries, wall adaptors and industrial supplies. The LTM8027 is a step down converter, so a minimum amount of headroom is required to keep the output in regulation. A soft-start feature controls the output voltage slew rate at start-up, reducing current surges and voltage overshoots.
DC2125A
LT4275/LT4321/LTM8027 Demo Board | LTPoE++ PD Plus Diode Bridge and DC/DC Controller
DC2125A Demo Board DC2125A Demo Board DC2125A Demo Board DC2125A Demo Board DC2125A Demo Board DC2125A - Schematic
DC1307B
LTM8027EV Demo Board | 16V ≤ VIN ≤ 60V, VOUT = 12V @ 4A

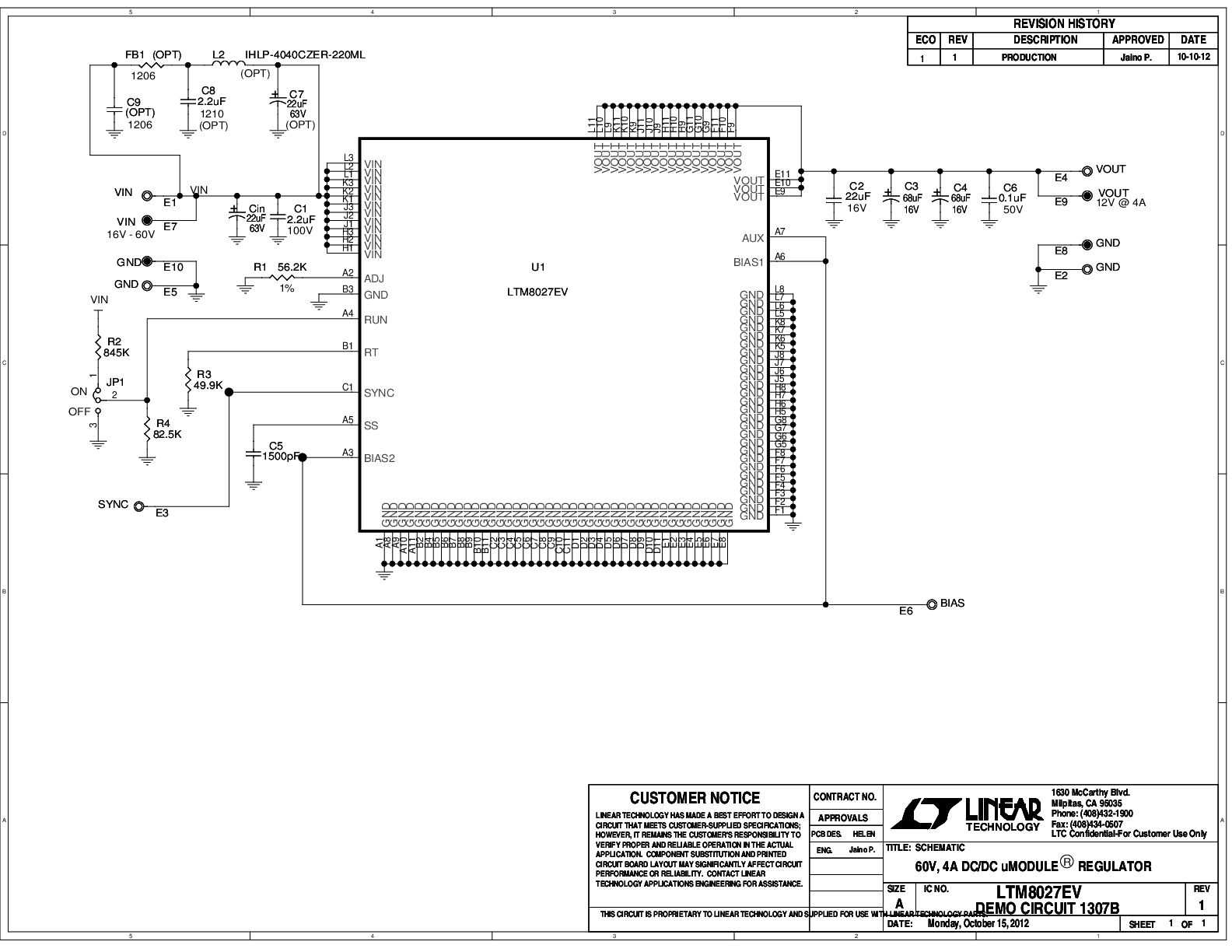

DC1307B Demo Board DC1307B Demo Board DC1307B Demo Board DC1307B Demo Board DC1307B - Schematic
