LTM2892

PRODUCTION

SPI/Digital or I²C μModule Isolator

Data Sheet

Part Models: 6
1ku List Price: Starting From $7.01

Viewing:

Part Details

6-Channel Logic Isolator: 3500V_RMS for 1 Minute
UL-CSA Recognized File #E151738
3V to 5.5V Supply Operation
No External Components Required

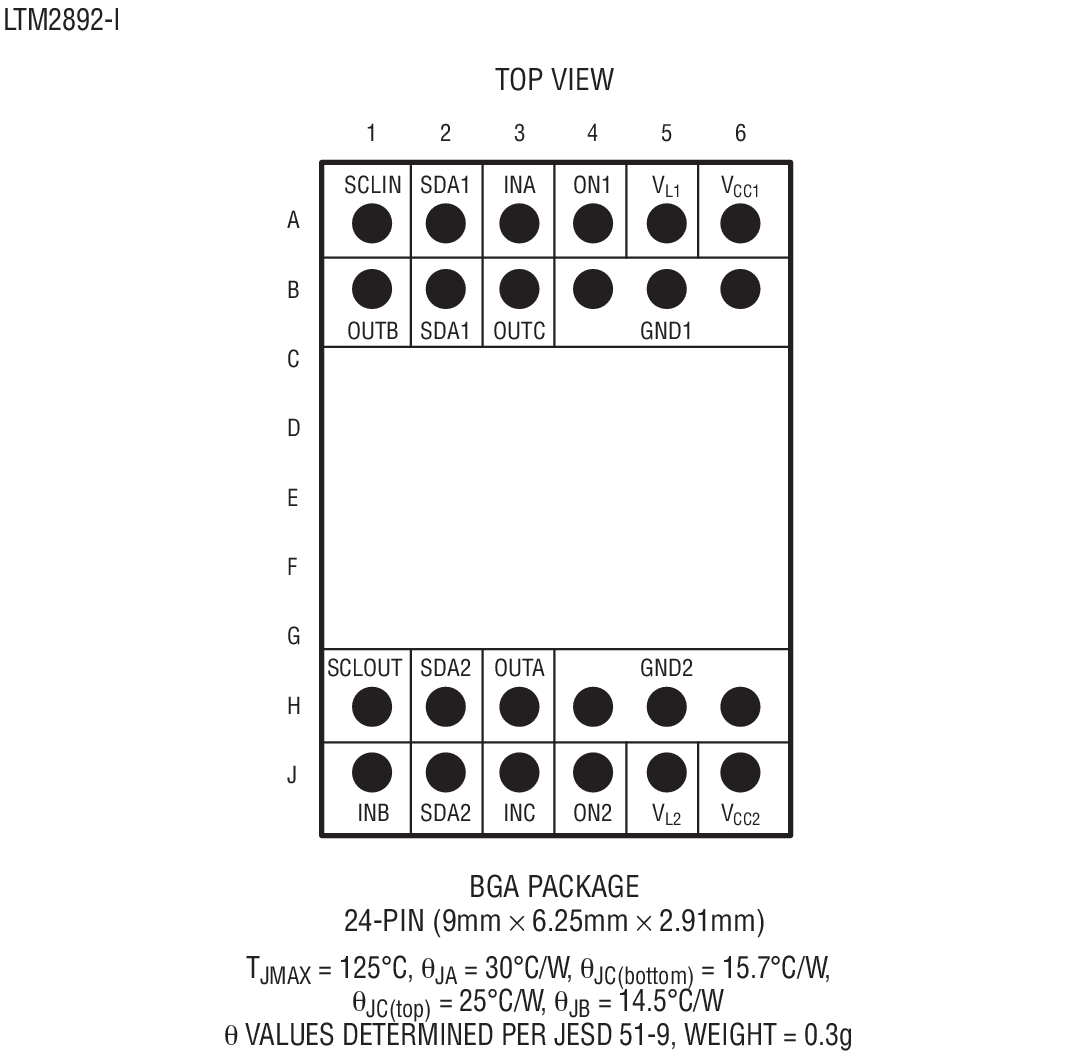

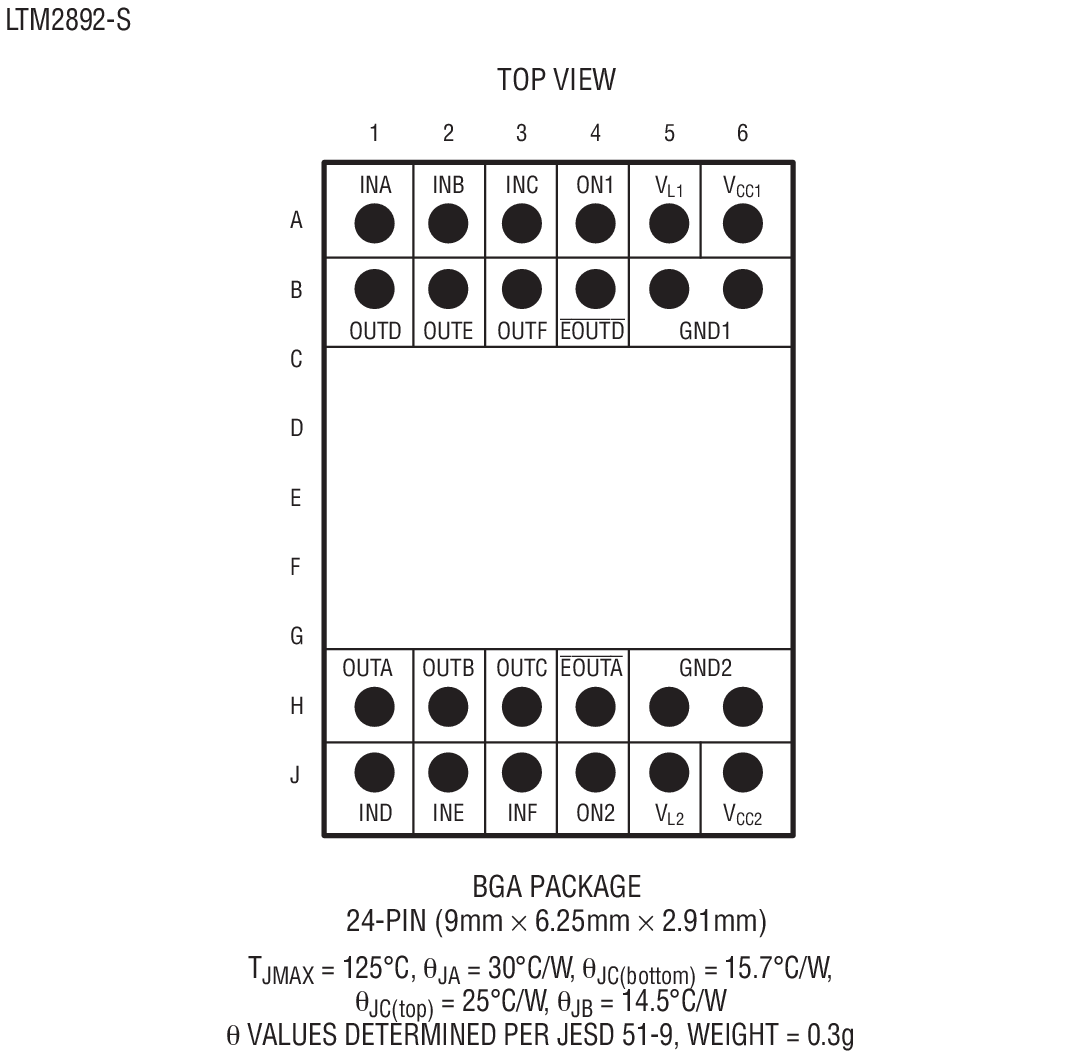

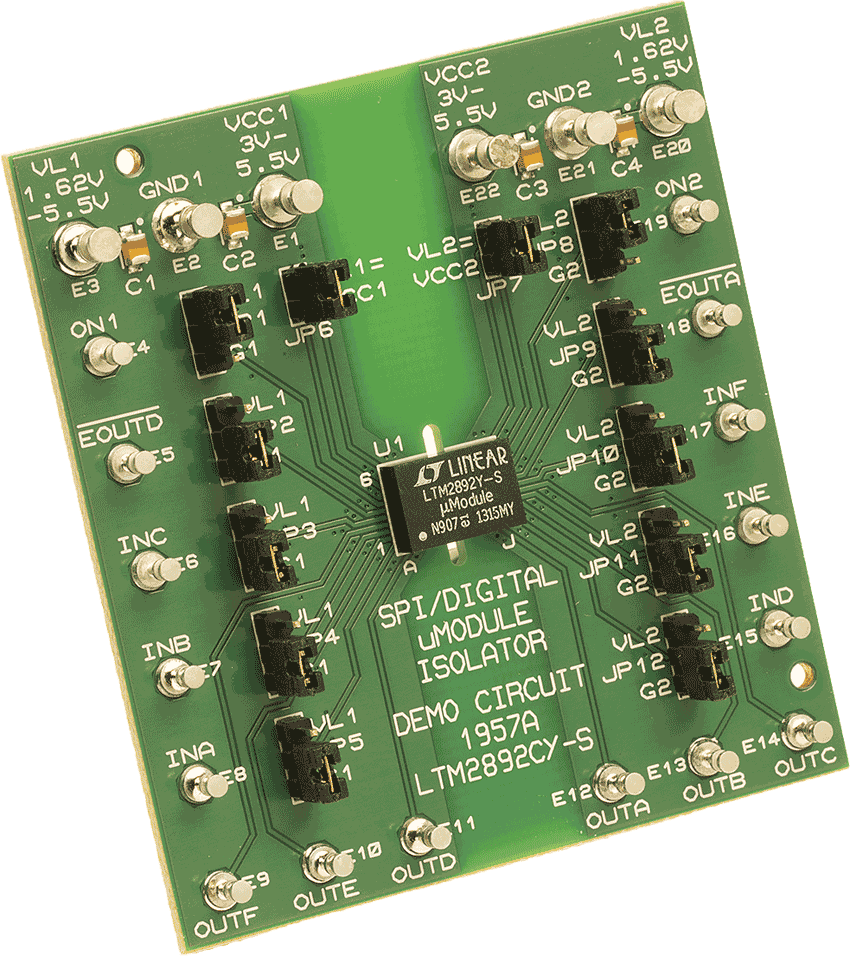

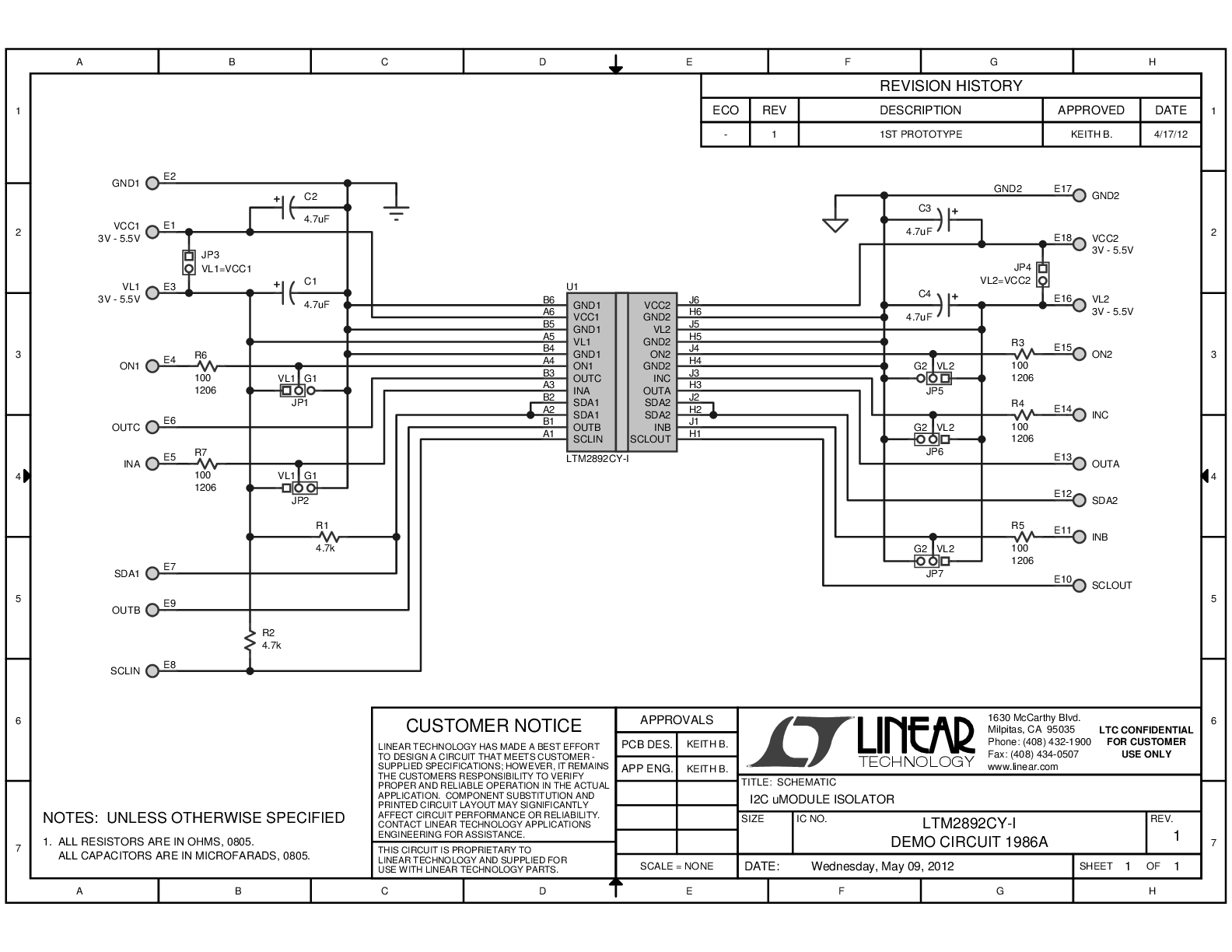

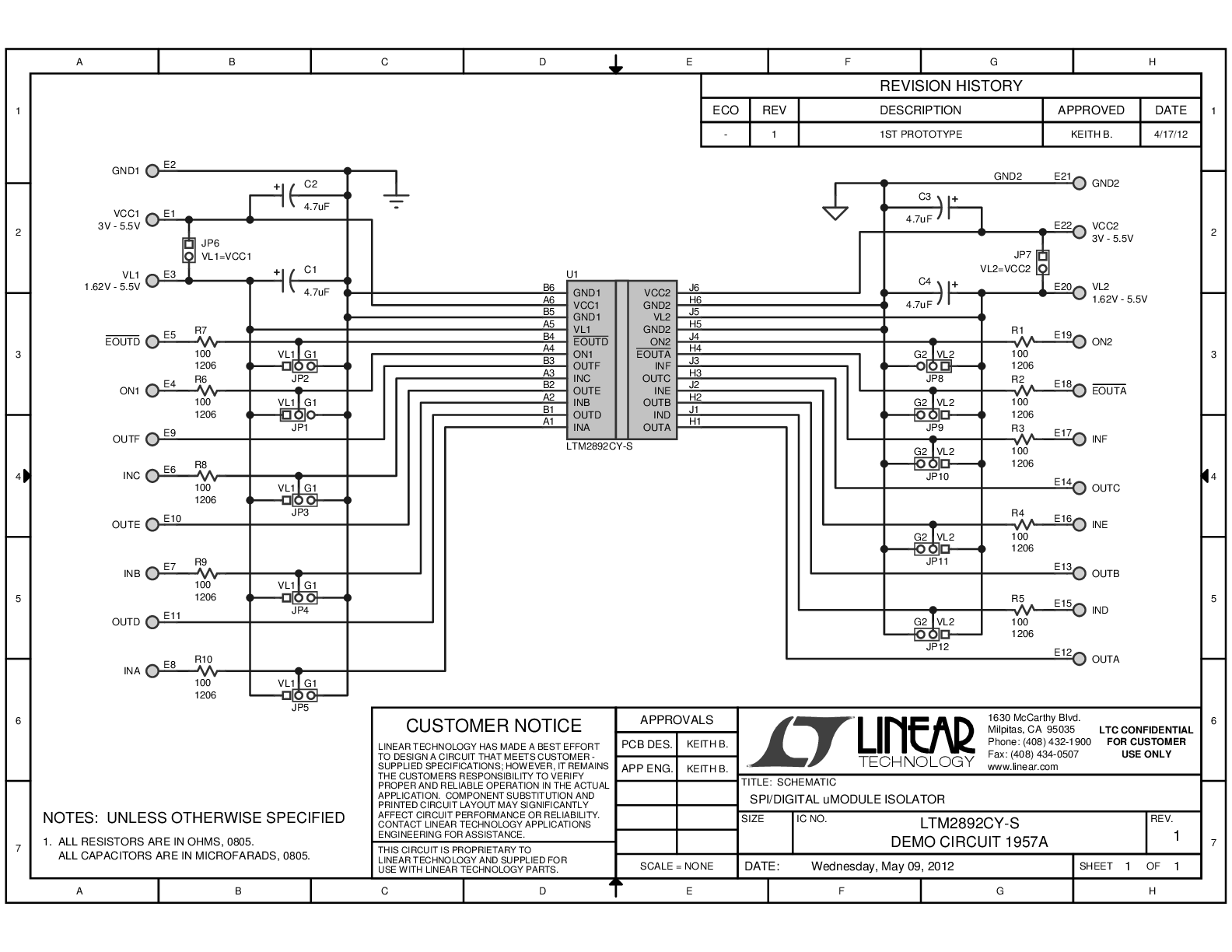

SPI/Digital (LTM2892-S) or I²C (LTM2892-I) Options

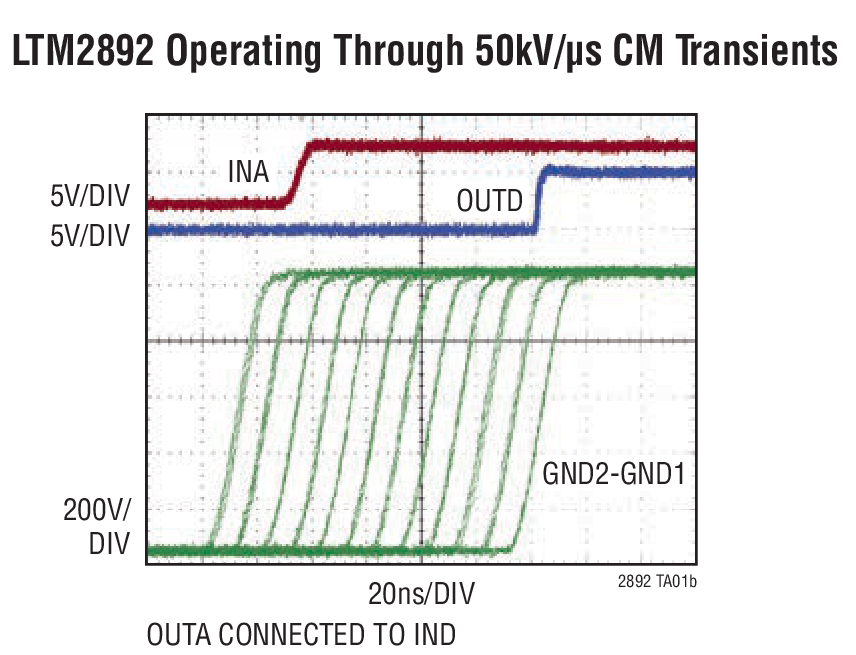

High Common Mode Transient Immunity: 50kV/μs
High Speed Operation:
- 10MHz Digital Isolation

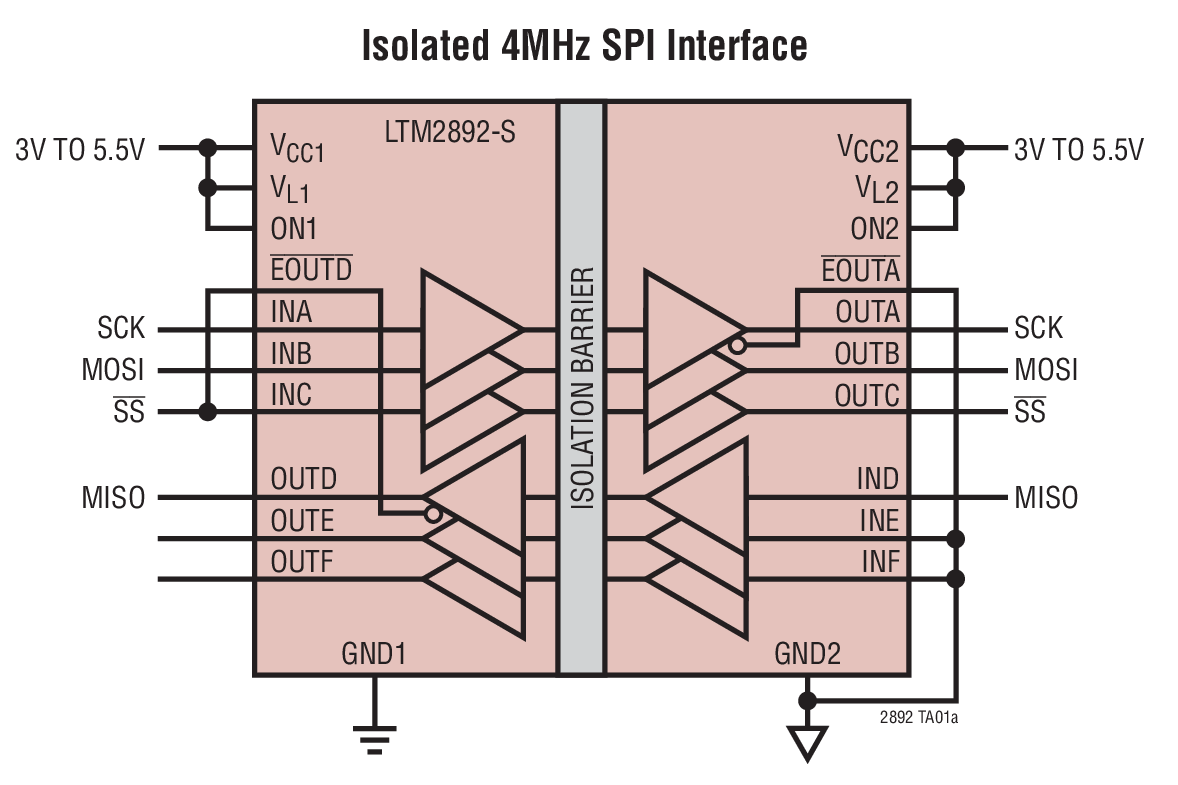

- 4MHz/8MHz SPI Isolation
- 400kHz I²C Isolation
Operation Up to 125°C (H-Grade)
1.62V to 5.5V Logic Supplies for Flexible Digital Interfacing
±15kV ESD HBM Across the Isolation Barrier
Maximum Continuous Working Voltage: 850V_PEAK
Low Current Shutdown Mode (<10μA)
Small (9mm × 6.25mm × 2.91mm) BGA Package

Part Models: 6
1ku List Price: Starting From $7.01
