LTC699

PRODUCTION

Microprocessor Supervisory Circuit

Data Sheet

Part Models: 6
1ku List Price: Starting From $3.27

Viewing:

Part Details

Guaranteed Reset Assertion at V_CC = 1V
1.5mA Maximum Supply Current
SO-8 Packaging
4.65V Precision Voltage Monitor
Power OK/Reset Time Delay: 200ms
Minimum External Component Count
Performance Specified Over Temperature
Superior Upgrade for MAX699

Part Models: 6
1ku List Price: Starting From $3.27

Documentation

Data Sheet 1

LTC699: Microprocessor Supervisory Circuit Data Sheet 08/23/2007

Reliability Data 1

R163 Reliability Data 03/26/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

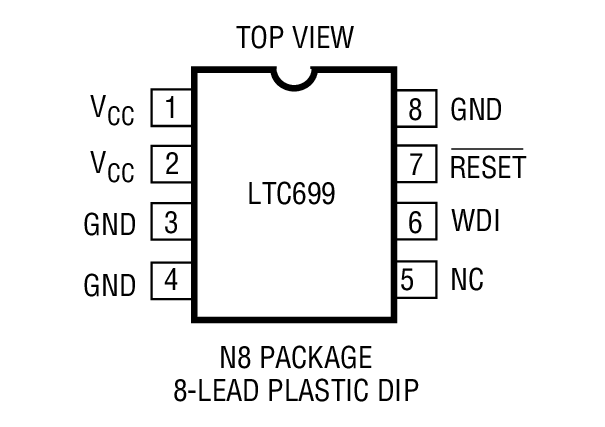

LTC699CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

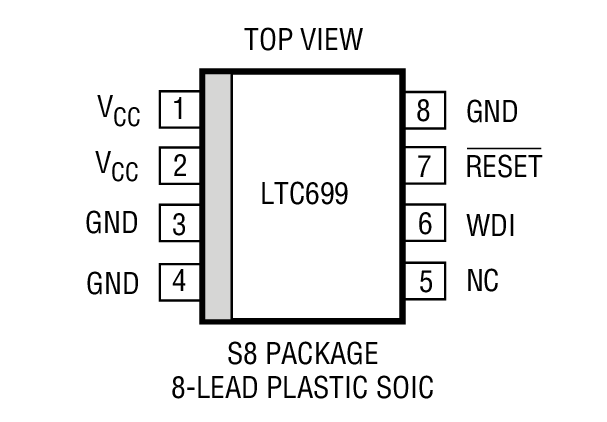

LTC699CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC699CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC699IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC699IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC699IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LTC699CN8#PBF	PRODUCTION
LTC699IN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LTC699CN8#PBF	PRODUCTION
LTC699IN8#PBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC699CS8#PBF	PRODUCTION
LTC699CS8#TRPBF	PRODUCTION
LTC699IS8#PBF	PRODUCTION
LTC699IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 1

LT1086 - LDO Linear Regulators, LTC699 - Supervisory Circuits

Models for the following parts are available in LTspice:

LTC699

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
