LTC4370

RECOMMENDED FOR NEW DESIGNS

Two-Supply Diode-OR Current Balancing Controller

Data Sheet

Part Models: 8
1ku List Price: Starting From $5.90

Viewing:

Part Details

Shares Load Between Two Supplies
Eliminates Need for Active Control of Input Supplies
No Share Bus Required
Blocks Reverse Current
No Shoot-Through Current During Start-Up or Faults
0V to 18V High Side Operation
Enable Inputs
MOSFET On Status Outputs
Dual Ideal Diode Mode

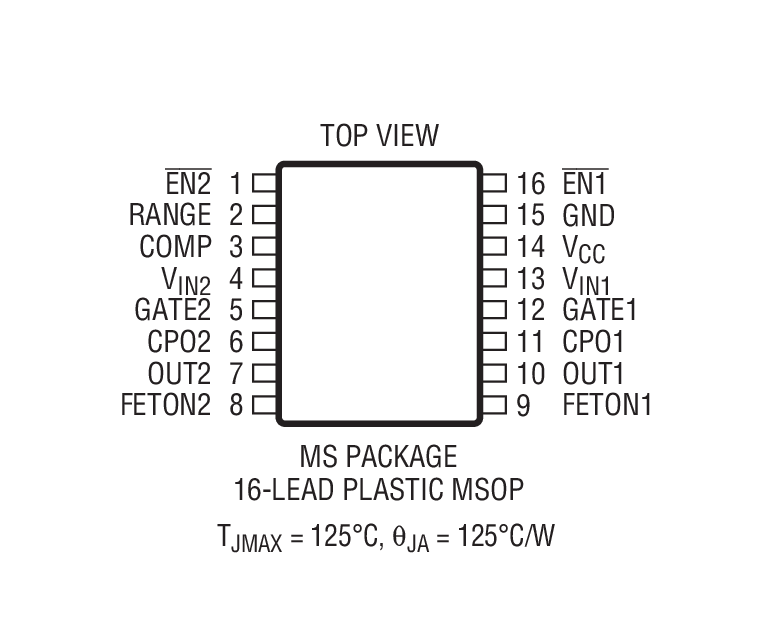

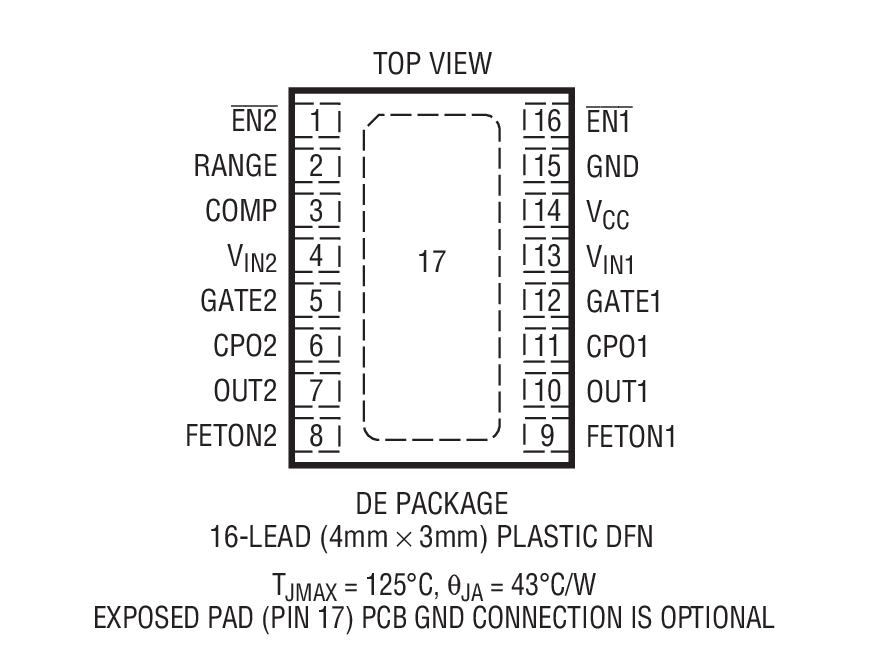

16-Lead DFN (4mm × 3mm) and MSOP Packages

Part Models: 8
1ku List Price: Starting From $5.90
