LTC4260

RECOMMENDED FOR NEW DESIGNS

Positive High Voltage Hot Swap Controller with I²C Compatible Monitoring

Data Sheet

Part Models: 12
1ku List Price: Starting From $7.84

Viewing:

Part Details

Allows Safe Insertion into Live Backplane
8-Bit ADC Monitors Current and Voltage
I²C^™/SMBus Interface
Wide Operating Voltage Range: 8.5V to 80V
High Side Drive for External N-Channel MOSFET
Input Overvoltage/Undervoltage Protection
Optional Latchoff or Autoretry After Faults
Alerts Host After Faults
Foldback Current Limiting
Available in 24-Lead SO, 24-Lead Narrow SSOP and 32-Lead (5mm × 5mm) QFN Packages

Part Models: 12
1ku List Price: Starting From $7.84

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4260CGN#PBF	24-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260CGN#TRPBF	24-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260CSW#PBF	24-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260CSW#TRPBF	24-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260CUH#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260CUH#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260IGN#PBF	24-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260IGN#TRPBF	24-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260ISW#PBF	24-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260ISW#TRPBF	24-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260IUH#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4260IUH#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Aug 10, 2022 - 22_0177 Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL
		PCN22_0177_Form Material_Report Delta Qualification Matrix
LTC4260CGN#PBF	PRODUCTION
LTC4260CGN#TRPBF	PRODUCTION
LTC4260IGN#PBF	PRODUCTION
LTC4260IGN#TRPBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LTC4260CSW#PBF	PRODUCTION
LTC4260CSW#TRPBF	PRODUCTION
LTC4260ISW#PBF	PRODUCTION
LTC4260ISW#TRPBF	PRODUCTION
Jan 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
		PCN21_0269_Form Material_Report Detailed Change Description Qualification Results Summary
LTC4260CUH#PBF	PRODUCTION
LTC4260CUH#TRPBF	PRODUCTION
LTC4260IUH#PBF	PRODUCTION
LTC4260IUH#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 1
LTC4355	RECOMMENDED FOR NEW DESIGNS	Positive High Voltage Ideal Diode-OR with Input Supply and Fuse Monitors
Switching Regulators & Controllers 1
LTM9100	PRODUCTION	Anyside^™ High Voltage Isolated Switch Controller with I²C Command and Telemetry

Tools & Simulations

LTspice 1

LTC4260 - Hot Swap Controllers

Models for the following parts are available in LTspice:

LTC4260

Linduino 3

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

Evaluation Kits

LTC4260CGN | 200W Positive 48V Hot Swap Controller With Current and Voltage Monitoring (requires DC590)

Buy Now View Details

Product Details

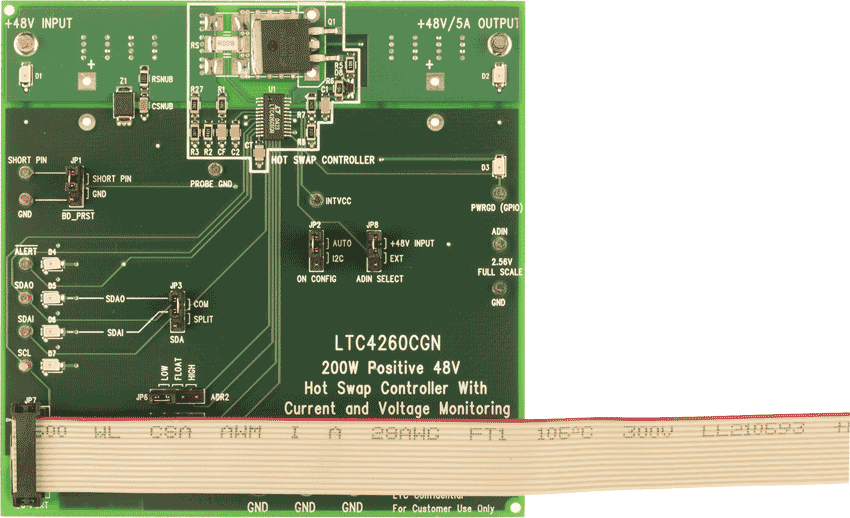

DC786A: Demo Board for LTC4260 Positive High Voltage Hot Swap Controller with I2C Compatible Monitoring.
