LTC4242

RECOMMENDED FOR NEW DESIGNS

Dual Slot Hot Swap Controller for PCI Express

Part Models
8
1ku List Price
Starting From $3.96
Viewing:

Part Details

  • Allows Live Insertion into PCI Express® Backplane
  • Controls Two Independent PCI Express Slots
  • Independent Control of Main and Auxiliary Supplies
  • 20V Rating for 12V Supply Input Pins
  • Integrated 0.25Ω AUX Switches
  • Limits Fault Current in ≤1µs
  • Force On Test Mode
  • Adjustable Supply Voltage Power-Up Rate
  • High Side Drivers for N-Channel MOSFETs
  • Thermal Shutdown Protection

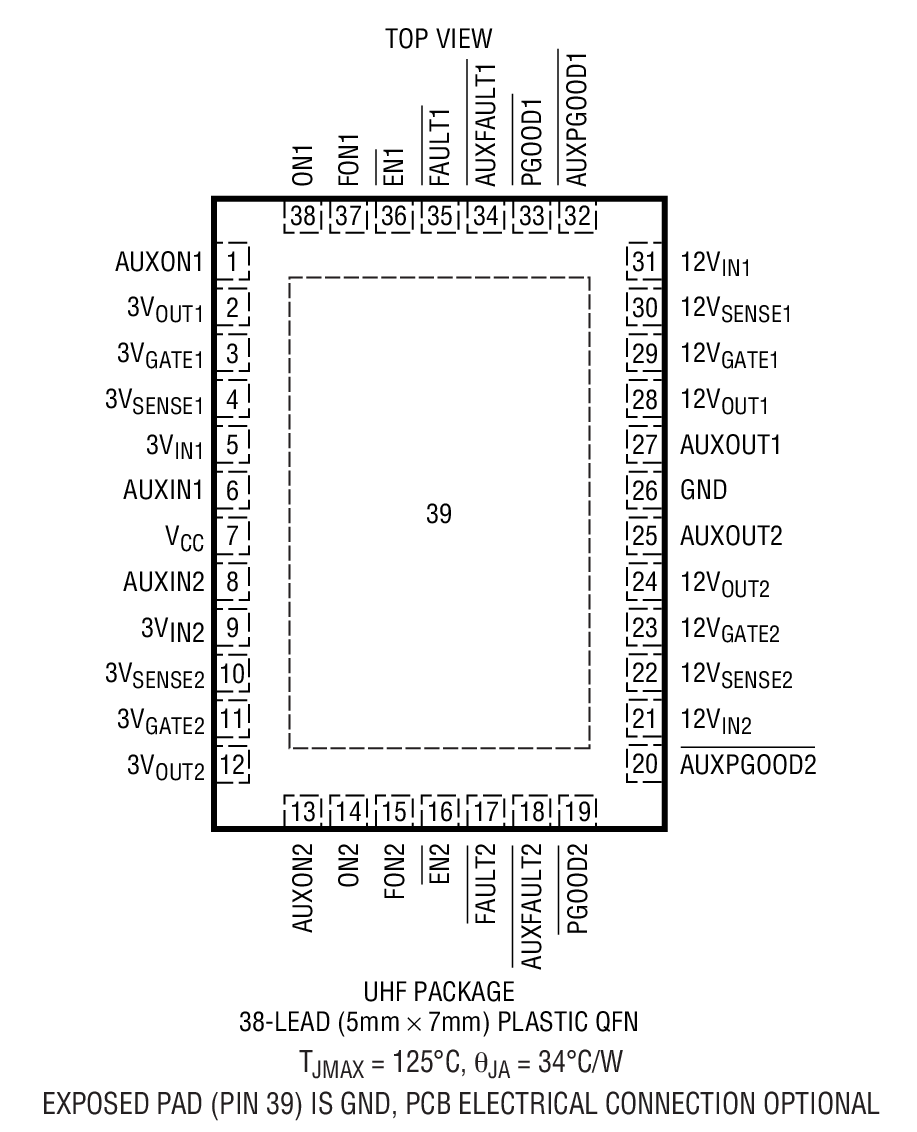

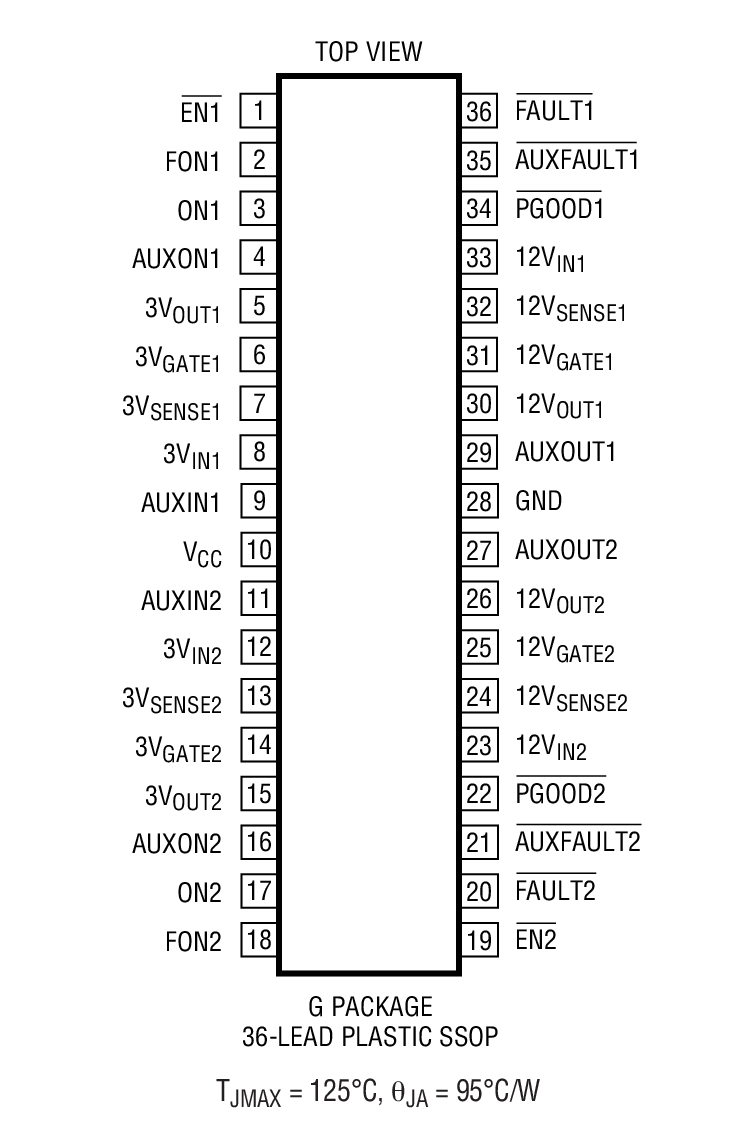

  • Available in 38-Lead QFN and 36-Lead SSOP Packages
LTC4242
Dual Slot Hot Swap Controller for PCI Express

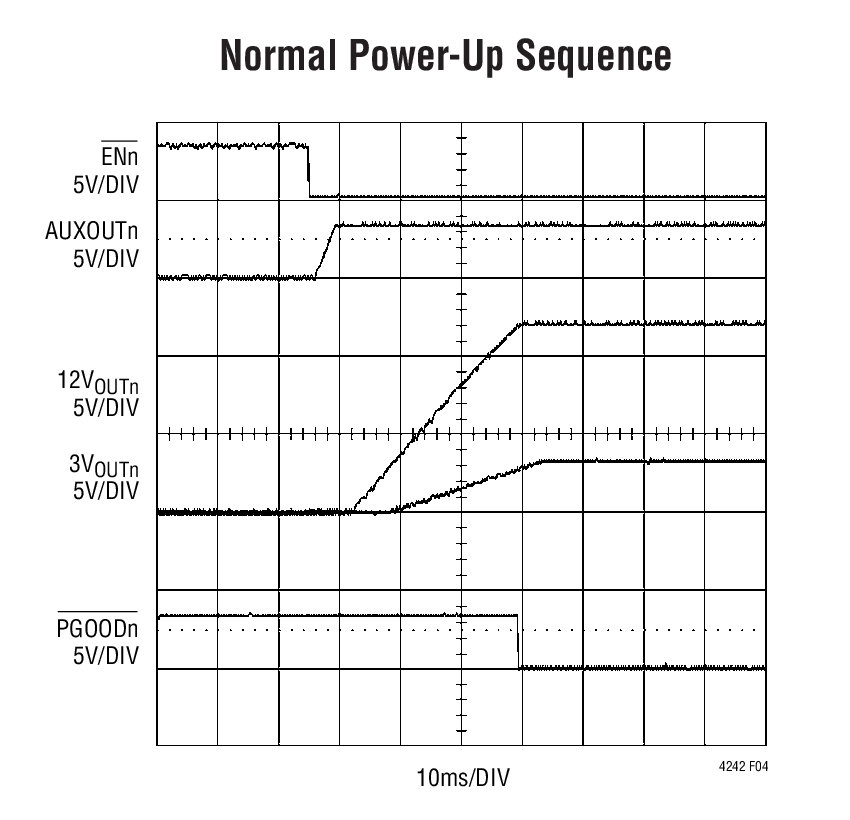

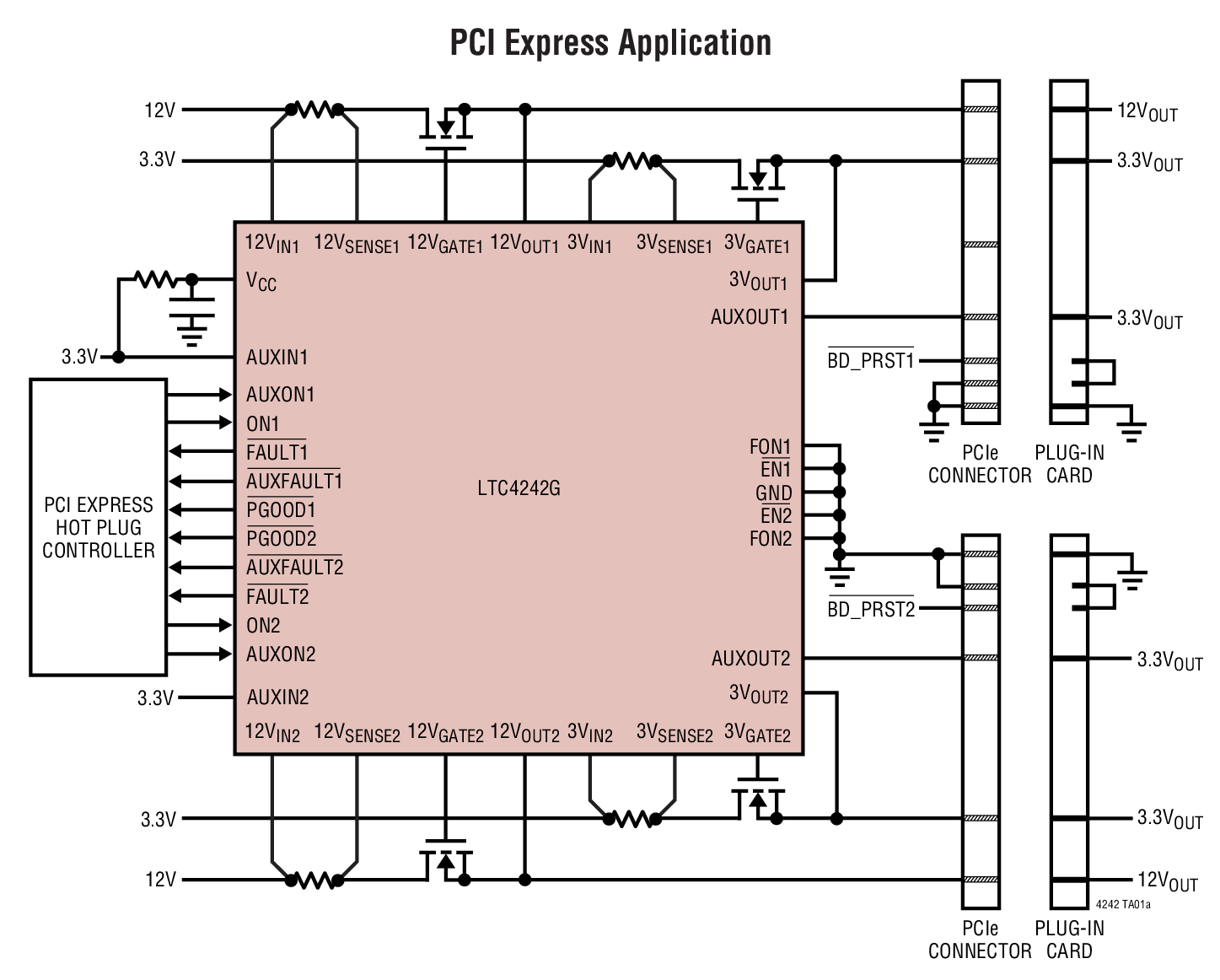

PCI Express Application Normal Power-Up Sequence Product Package 1 Product Package 2
