LTC4219

RECOMMENDED FOR NEW DESIGNS

5A Integrated Hot Swap Controller

Data Sheet

Part Models: 8
1ku List Price: Starting From $4.01

Viewing:

Part Details

Small Footprint
33mΩ MOSFET with R_SENSE
Available in Preset 12V and 5V Versions
Adjustable, 10% Accurate Current Limit
Current and Temperature Monitor Outputs
Overtemperature Protection
Adjustable Current Limit Timer Before Fault
Power Good and Fault Outputs
Adjustable Inrush Current Control

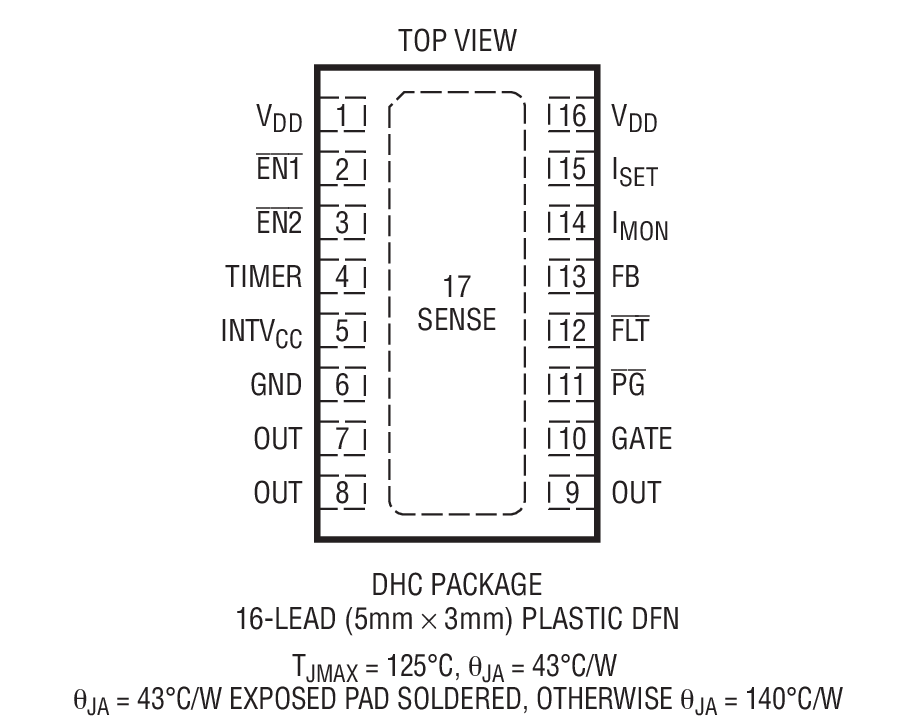

Available in 16-Lead 5mm × 3mm DFN Packages

Part Models: 8
1ku List Price: Starting From $4.01

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4219CDHC-12#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219CDHC-12#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219CDHC-5#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219CDHC-5#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219IDHC-12#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219IDHC-12#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219IDHC-5#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4219IDHC-5#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LTC4232	RECOMMENDED FOR NEW DESIGNS	5A Integrated Hot Swap Controller
LTC4217	RECOMMENDED FOR NEW DESIGNS	2A Integrated Hot Swap Controller

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTC4219-12
LTC4219-5

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
