LTC4110

PRODUCTION

Battery Backup System Manager

Data Sheet
Part Models
2
1ku List Price
Starting From $10.96
Viewing:

Part Details

  • Complete Backup Battery Manager for Li-Ion/Polymer, Lead Acid, NiMH/NiCd Batteries and Super Capacitors
  • Charge and Discharge Battery with Voltages Above and Below the Input Supply Voltage
  • “No Heat” Battery Calibration Discharge Using System Load
  • Automatic Battery Backup with Input Supply Removal Using PowerPath™ Control
  • Standalone for Li-Ion/Polymer, SLA, and Supercaps
  • Optional SMBus/I2C Support Allows Battery Capacity Calibration Operation with Host
  • Over- and Under-Battery Voltage Protection
  • Adjustable Battery Float Voltage
  • Precision Charge Voltage ±0.5%
  • Programmable Charge/Calibration Current Up to 3A with ±3% Accuracy
  • Optional Temperature Qualified Charging
  • Wide Backup Battery Supply Range: 2.7V to 19V
  • Wide Input Supply Range: 4.5V to 19V

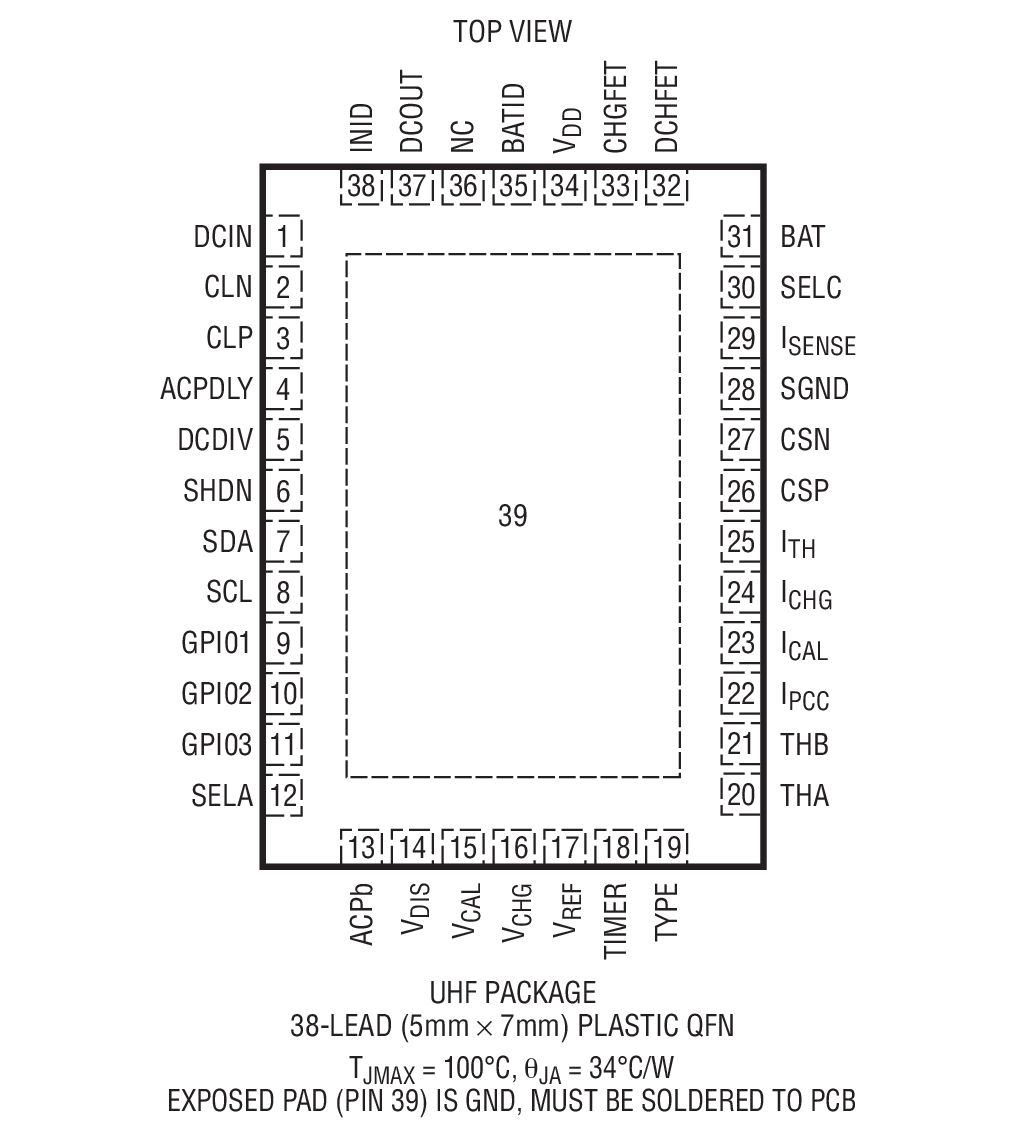

  • 38-Lead (5mm × 7mm) QFN Package
LTC4110
Battery Backup System Manager

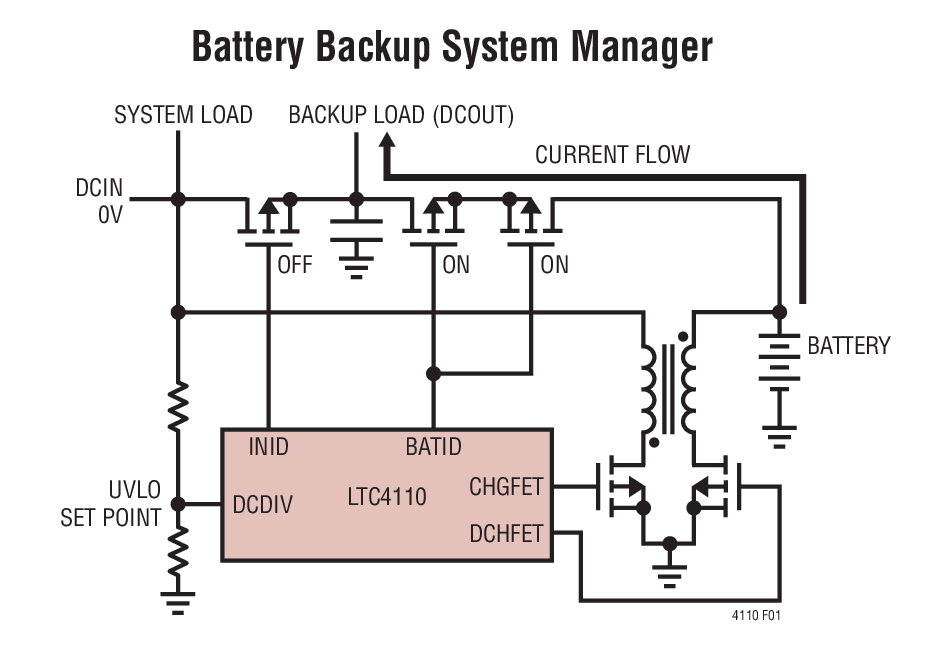

Battery Backup System Manager Server Backup System (In Backup Mode) Product Package 1
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 1

Application Note 1

Technical Articles 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Battery Chargers 1
LTM8062
RECOMMENDED FOR NEW DESIGNS 32VIN, 2A μModule (Power Module) Power Tracking Battery Charger
Battery Monitors & Fuel Gauges 1
LTC2942-1
Obsolete 1A Battery Gas Gauge with Internal Sense Resistor and Temperature/Voltage Measurement
Circuit Monitors 1
LTC4365
RECOMMENDED FOR NEW DESIGNS Overvoltage, Undervoltage and Reverse Supply Protection Controller
Supervisors & Resets 1
LTC2954
RECOMMENDED FOR NEW DESIGNS Push Button On/Off Controller with µP Interrupt
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

eval board
schematic 1

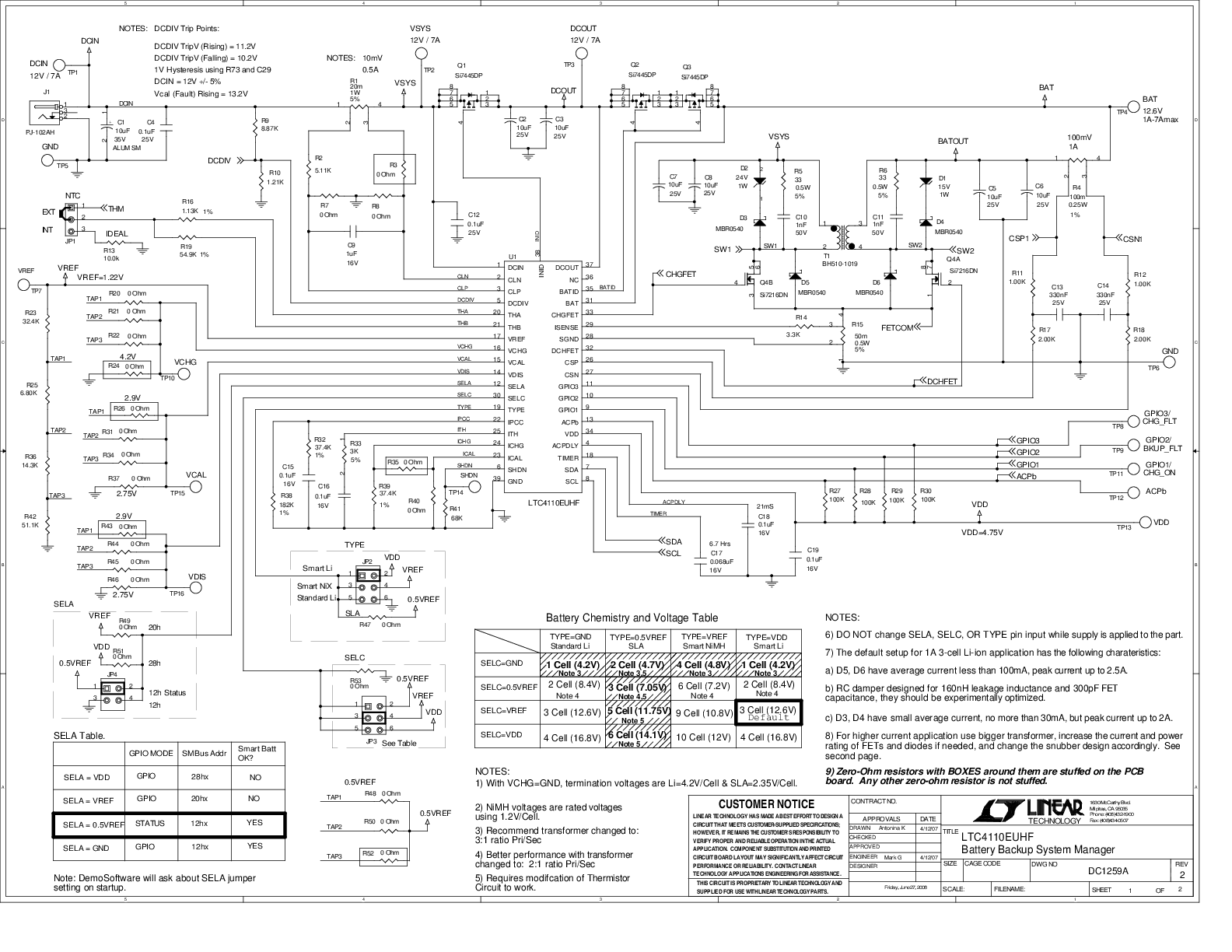

schematic 2
schematic 3
schematic 4
schematic 5
DC1259A

LTC4110EUHF Demo Board | Multi-Chemistry Flyback Battery Backup System Charger/Manager

Buy Now View Details

Product Details

Demonstration circuit DC1259A is a single-battery battery- backup controller featuring the LTC4110. The LTC4110 controller provides all the features and functions to offer a complete standalone battery-backup system. The LTC4110 is a multi-chemistry flyback battery charger and discharger that is scalable with other LTC4110s to allow a larger battery array for increased capacity and/or redundancy.


The demo board requires a 12V input voltage and is initially configured to charge a 3 Li-Ion Smart Battery at 1A; the charge voltage is 12.6V. However, the Demo board can be easily configured for a standard battery as well. A SMBus interface is offered to allow host communications in control and status and/or support Smart Batteries. However, no host is required to use the LTC4110.
DC1259A
LTC4110EUHF Demo Board | Multi-Chemistry Flyback Battery Backup System Charger/Manager

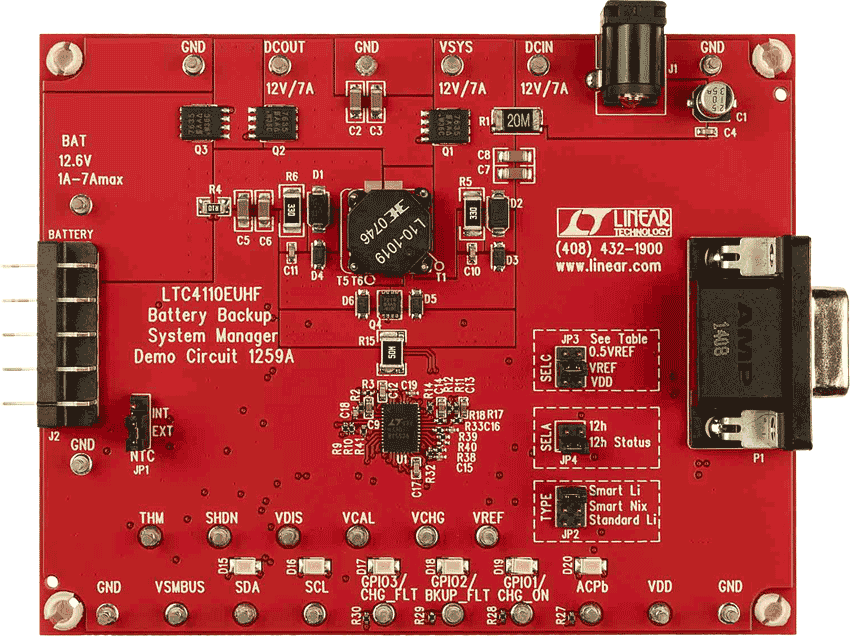

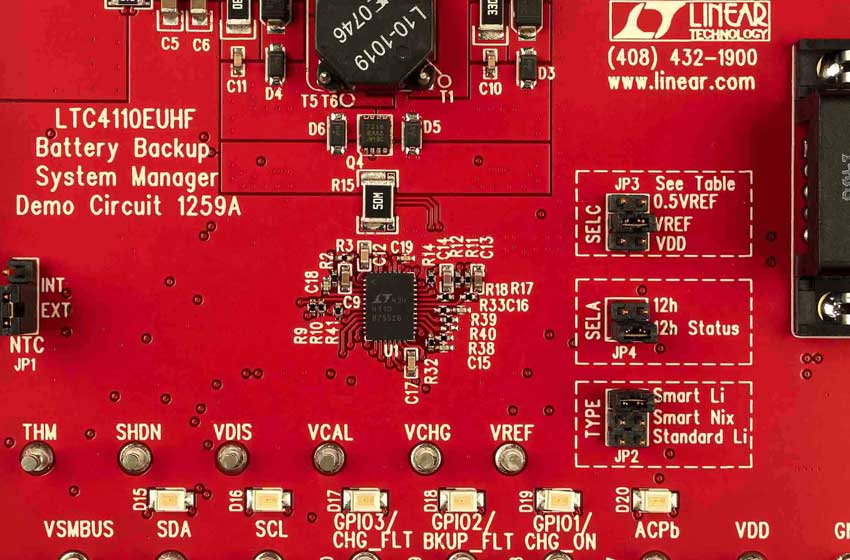

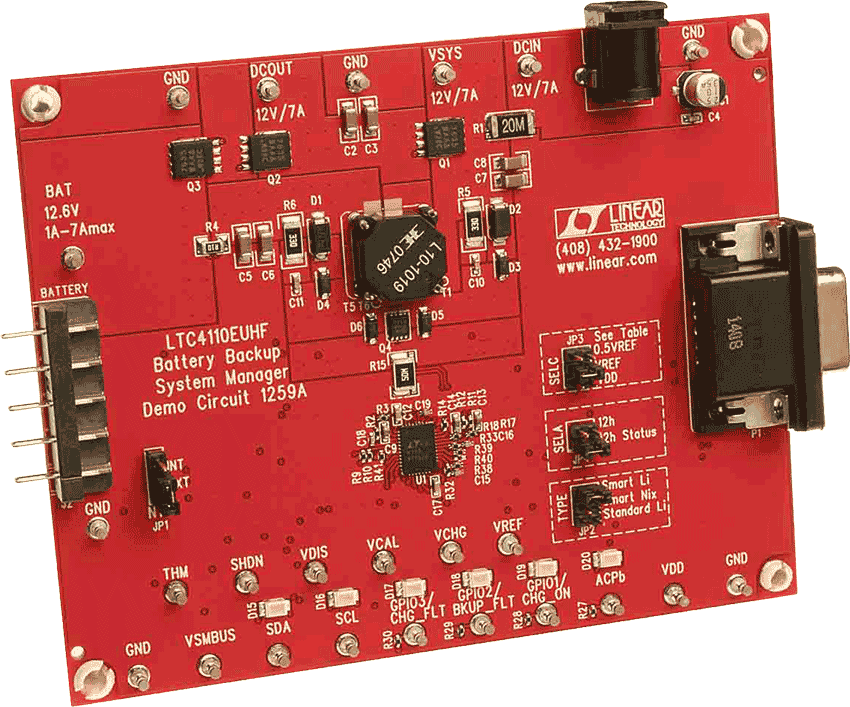

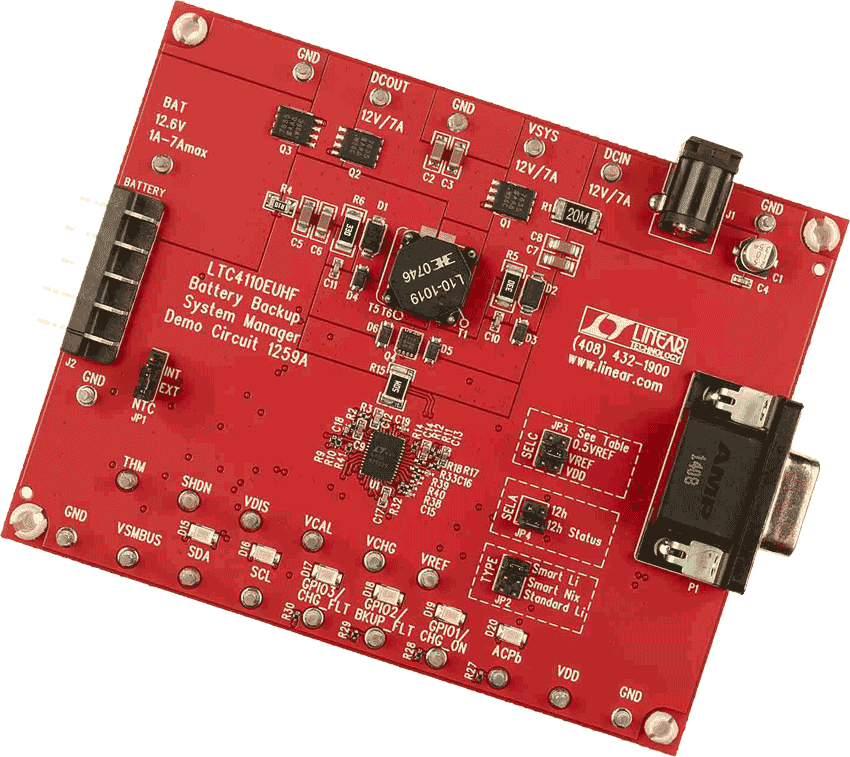

DC1259A Demo Board DC1259A Demo Board DC1259A Demo Board DC1259A Demo Board DC1259A - Schematic
