LTC3851-1

PRODUCTION

Synchronous Step-Down Switching Regulator Controller

Part Models: 6
1ku List Price: Starting From $2.09

Viewing:

Part Details

Wide V_IN Range: 4V to 38V Operation
R_SENSE or DCR Current Sensing
±1% Output Voltage Accuracy
Power Good Output Voltage Monitor
Phase-Lockable Fixed Frequency: 250kHz to 750kHz
Dual N-Channel MOSFET Synchronous Drive
Very Low Dropout Operation: 99% Duty Cycle
Adjustable Output Voltage Soft-Start or Tracking
Output Current Foldback Limiting
Output Overvoltage Protection
OPTI-LOOP^® Compensation Minimizes C_OUT
Selectable Continuous, Pulse-Skipping or Burst Mode^® Operation at Light Loads
Low Shutdown I_Q: 20μA
V_OUT Range: 0.8V to 5.5V

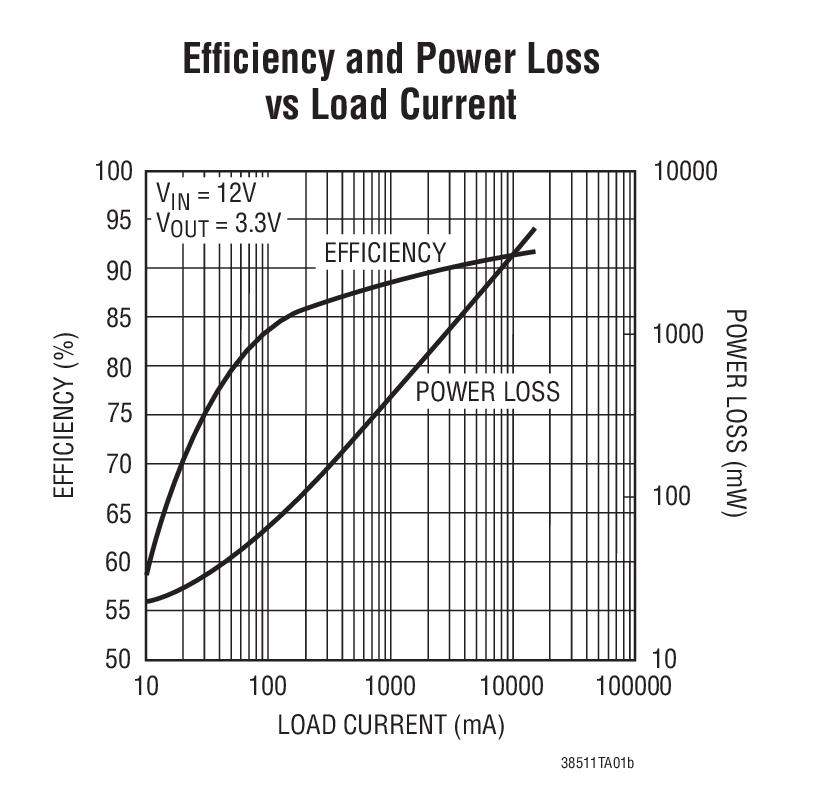

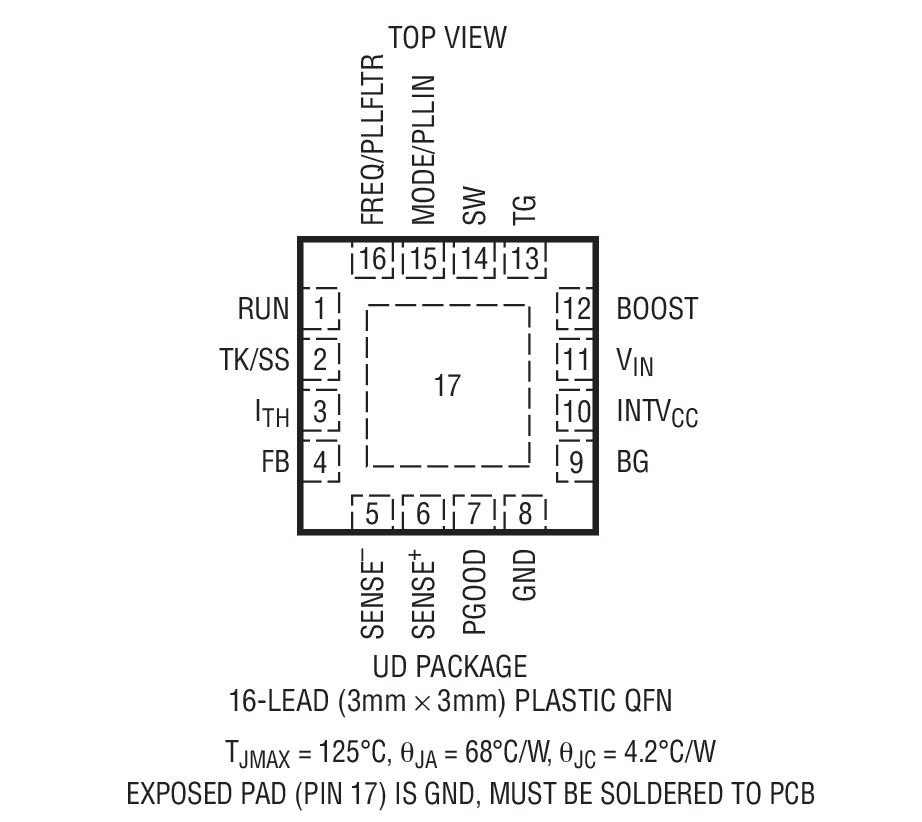

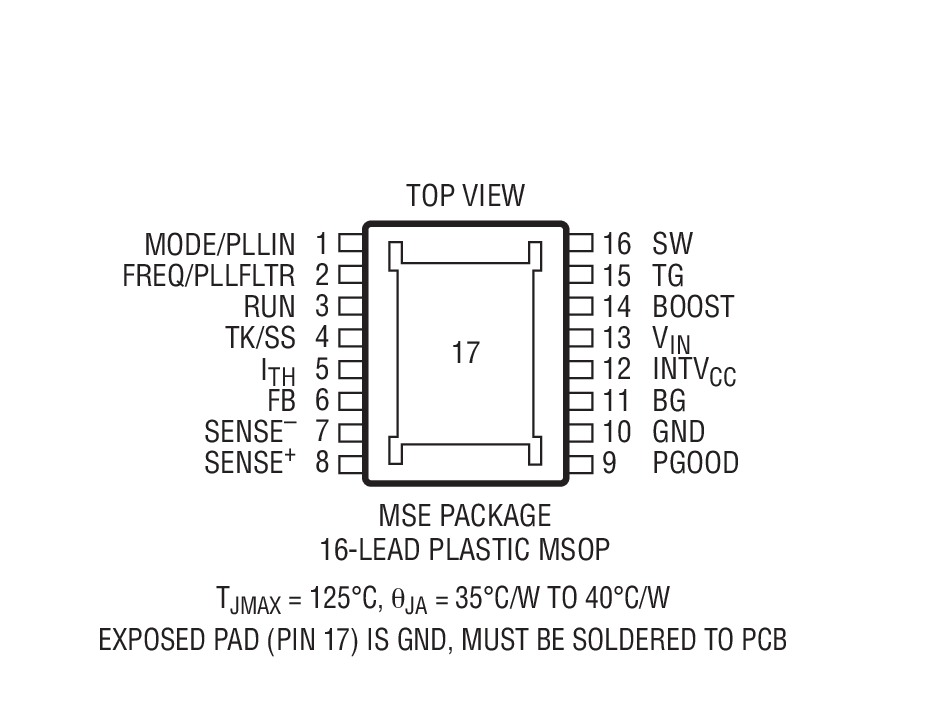

Thermally Enhanced 16-Lead MSOP or 3mm × 3mm QFN Package

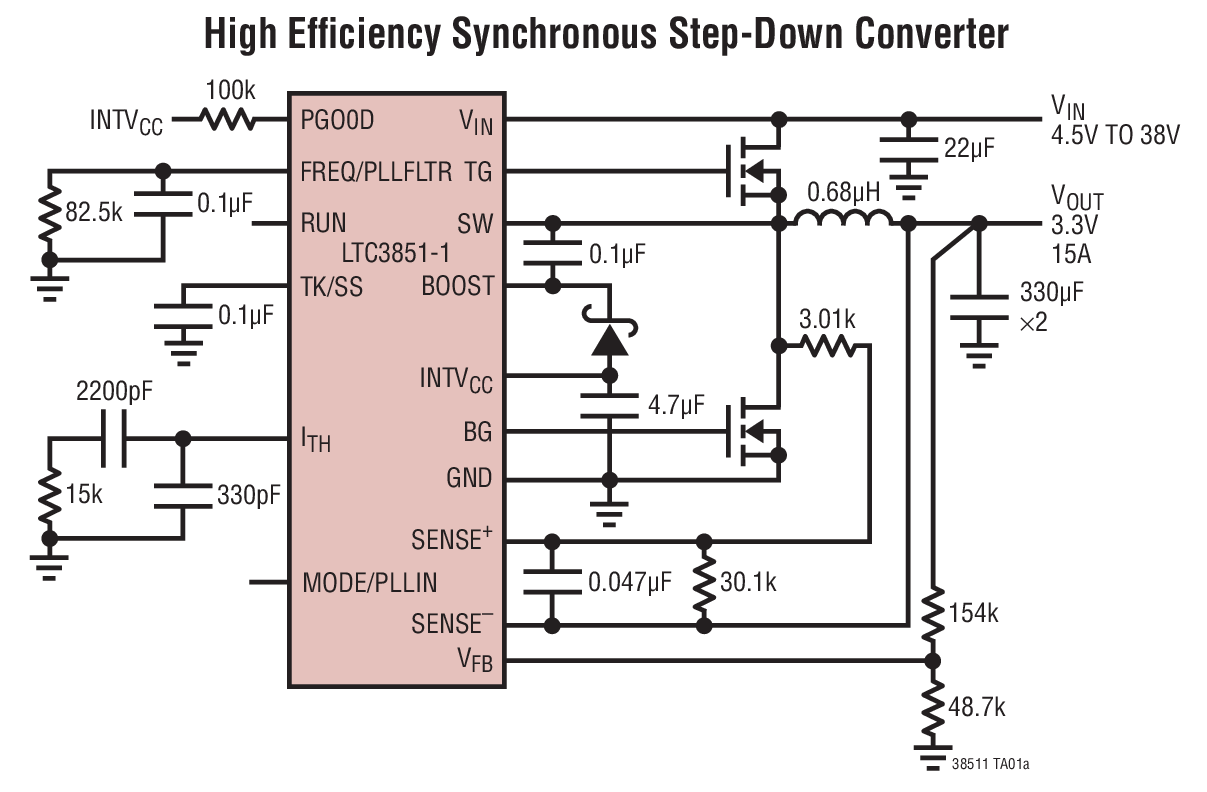

The LTC3851-1 is a high performance synchronous step-down switching regulator controller that drives an all N-channel synchronous power MOSFET stage. A constant frequency current mode architecture allows a phase-lockable frequency of up to 750kHz.

OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3851-1 features a precision 0.8V reference and a power good indicator. A wide 4V to 38V (40V absolute maximum) input supply range encompasses most battery configurations and intermediate bus voltages.

The TK/SS pin ramps the output voltage during start-up and shutdown with coincident or ratiometric tracking. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode operation, pulse skipping mode or continuous inductor current mode at light loads and allows the IC to be synchronized to an external clock.

The LTC3851-1 is identical to the LTC3851 except that the I_LIM pin is replaced by PGOOD.


	Features
LTC3851	Not Recommended For New Designs
LTC3851-1	Not Recommended For New Designs
LTC3851A	Adjustable Current Limit
LTC3851A-1	PGOOD Output

Applications

Automotive Systems
Telecom Systems
Industrial Equipment
Distributed DC Power Systems
