LTC3732

PRODUCTION

3-Phase, 5-Bit VID, 600kHz, Synchronous Buck Switching Regulator Controller

Data Sheet

Part Models: 4
1ku List Price: Starting From $5.24

Viewing:

Part Details

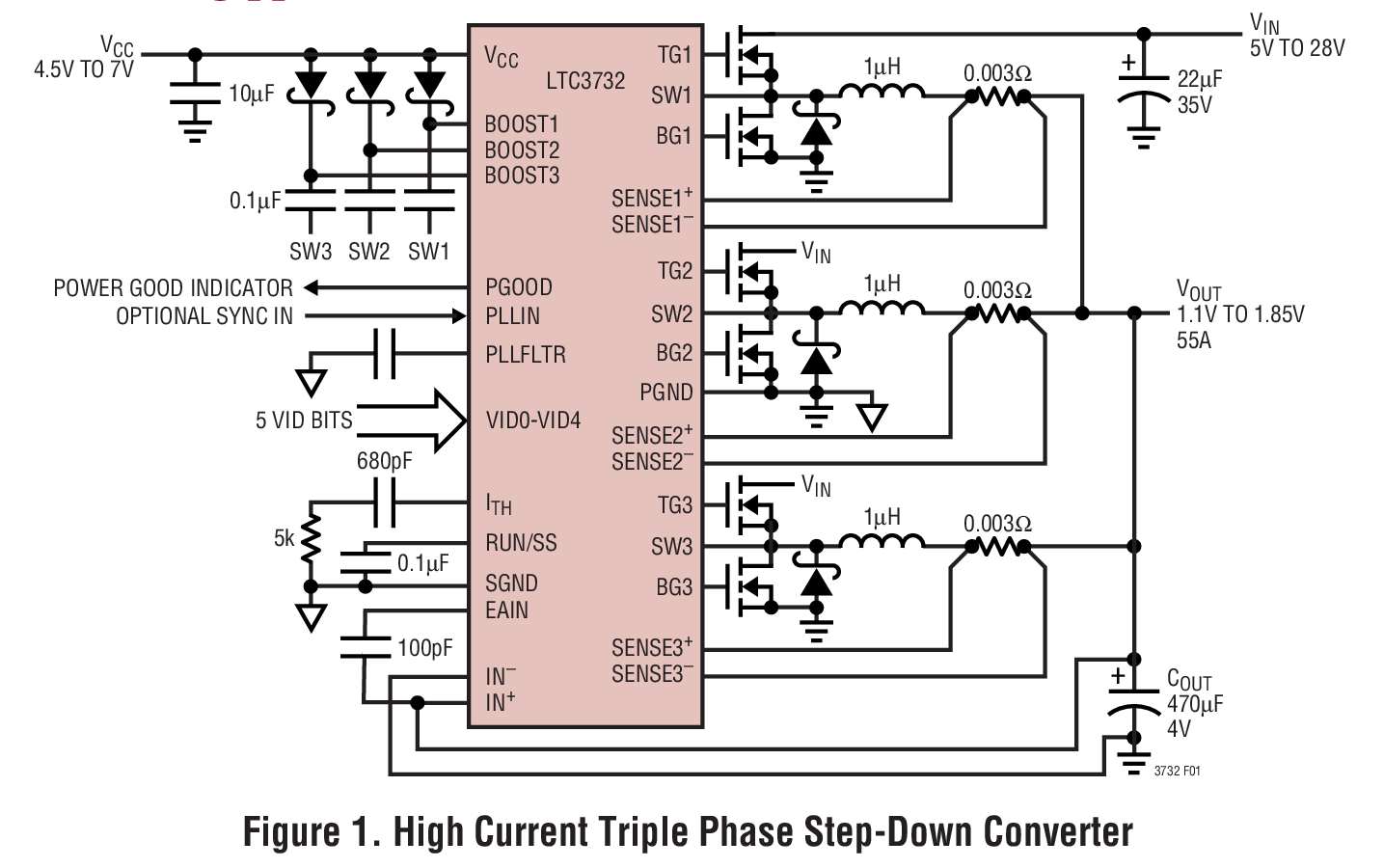

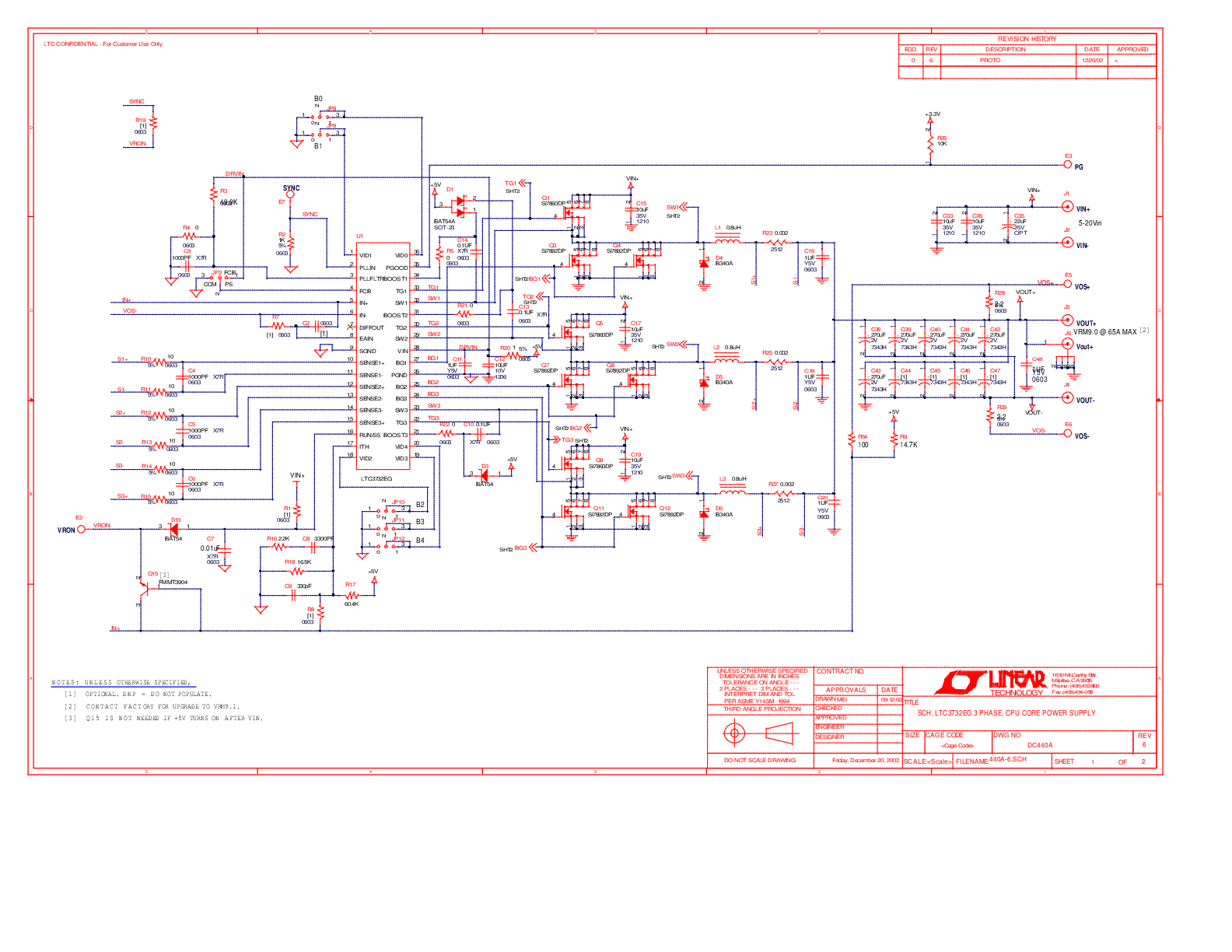

3-Phase Controller with Onboard MOSFET Drivers
±5% Output Current Matching Optimizes Thermal Performance and Size of Inductors and MOSFETs
4.5V </= V_CC </= 7V; 4.5V </= V_IN </= 32V
Differential Amplifier Accurately Senses V_OUT
Reduced Input and Output Capacitance
Reduced Power Supply Induced Noise
VID DAC Programmable from 1.1V to 1.85V (VRM9.0/9.1)
±10% Power Good Output Indicator
250kHz to 600kHz Per Phase, PLL, Fixed Frequency
PWM, Stage Shedding^™ or Burst Mode^® Operation
OPTI-LOOP^® Compensation Minimizes C_OUT
Adjustable Soft-Start Current Ramping
Short-Circuit Shutdown Timer with Defeat Option
Overvoltage Soft Latch

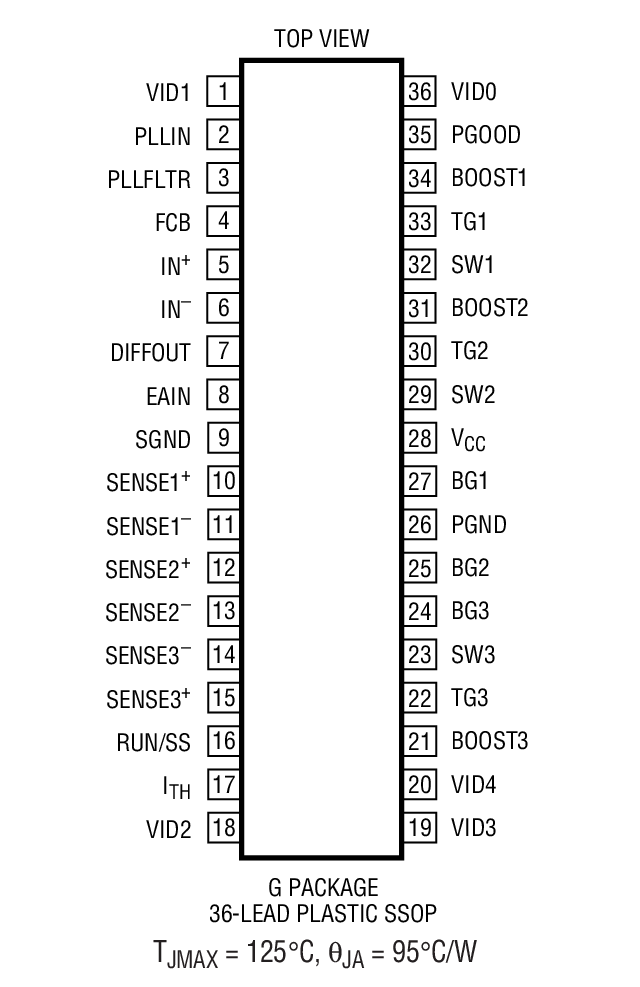

Small 36-Lead Narrow (0.209 inch) SSOP Package

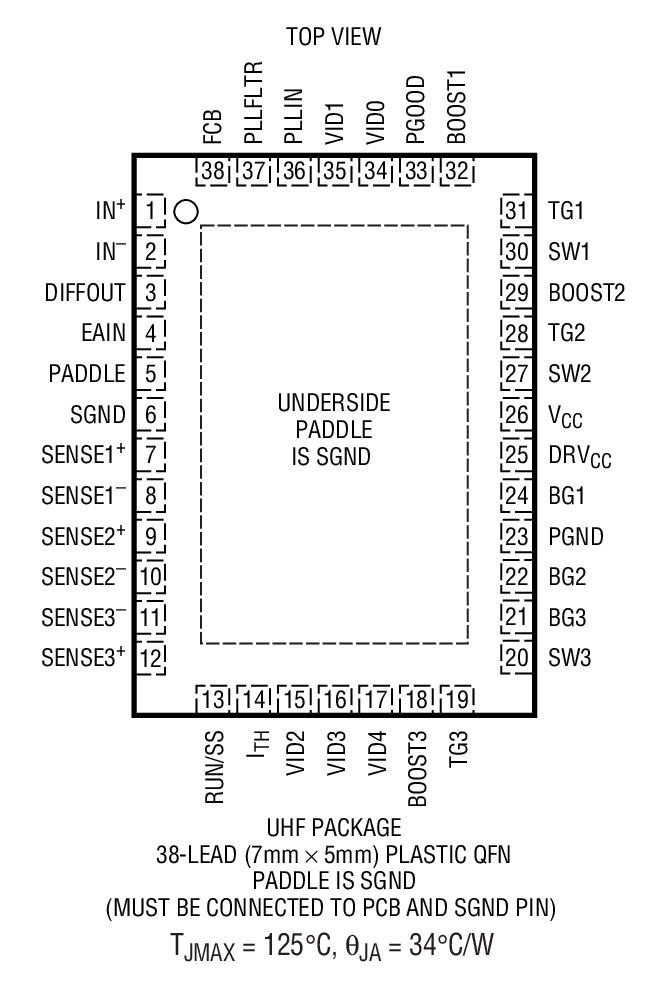

QFN 5mm x 7mm 38-Lead Package

Part Models: 4
1ku List Price: Starting From $5.24

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3732CG#PBF	36-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3732CG#TRPBF	36-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3732CUHF#PBF	38-Lead QFN (5mm x 7mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3732CUHF#TRPBF	38-Lead QFN (5mm x 7mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 18, 2019 - 19_0266 Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC
		PCN19_0266_Form Material_Report Detailed Parts List
LTC3732CG#PBF	PRODUCTION
LTC3732CG#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
