LTC3713

PRODUCTION

Low Input Voltage, High Power, No R_SENSE^™ Synchronous Buck DC/DC Controller

Data Sheet

Part Models: 2
1ku List Price: Starting From $4.94

Viewing:

Part Details

Very Low V_IN(MIN): 1.5V
True Current Mode Control
5V Drive for N-Channel MOSFETs Eliminates Auxillary 5V Supply
No Sense Resistor Required
Uses Standard 5V Logic-Level N-Channel MOSFETs
Adjustable Current Limit
Adjustable Frequency
Switch t_ON(MIN) < 100ns
2% to 90% Duty Cycle at 200kHz
0.8V ±1% Reference
Power Good Output Voltage Monitor
Programmable Soft-Start
Output Overvoltage Protection
Optional Short-Circuit Shutdown Timer

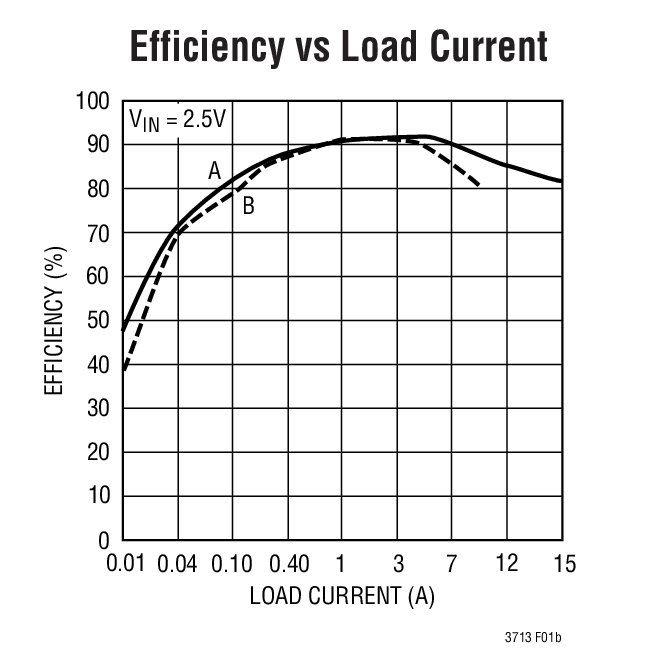

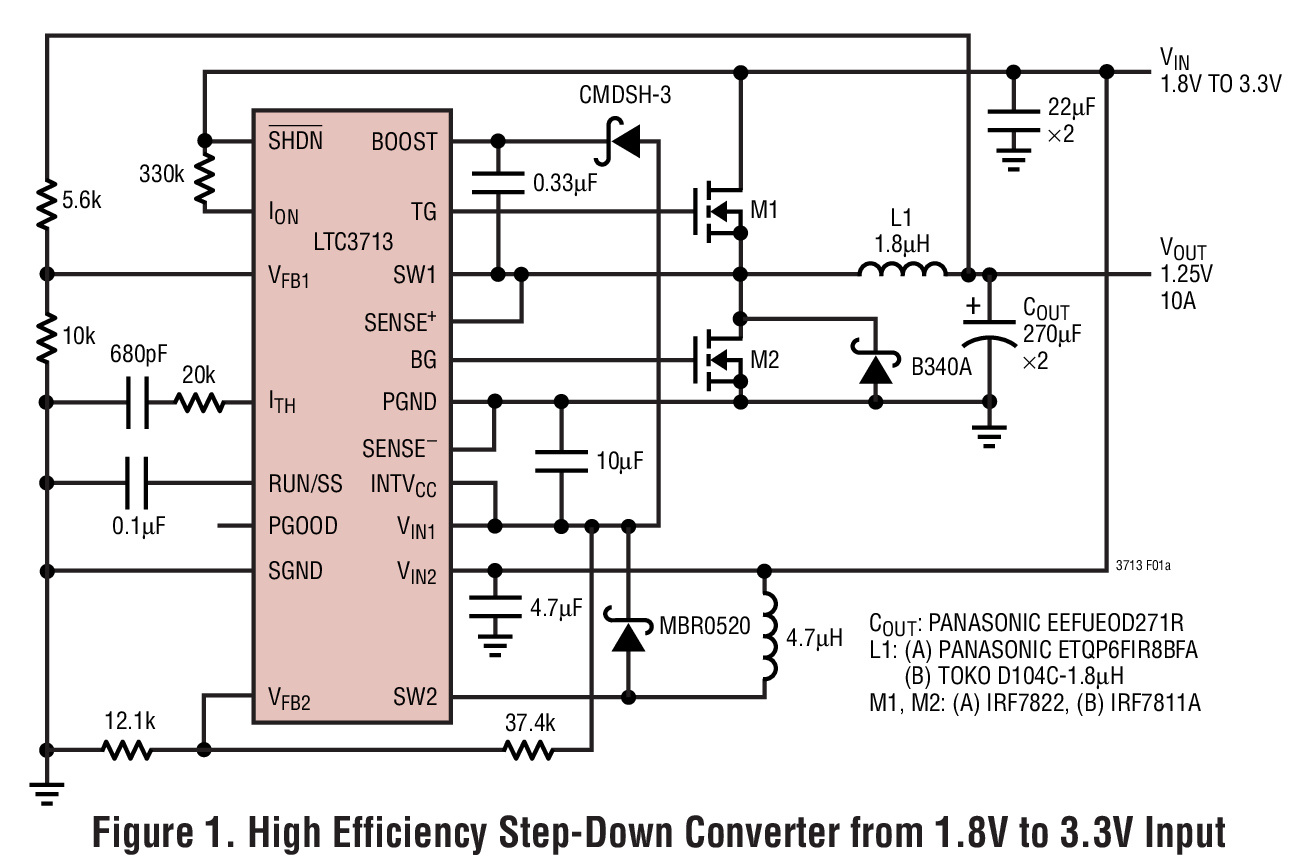

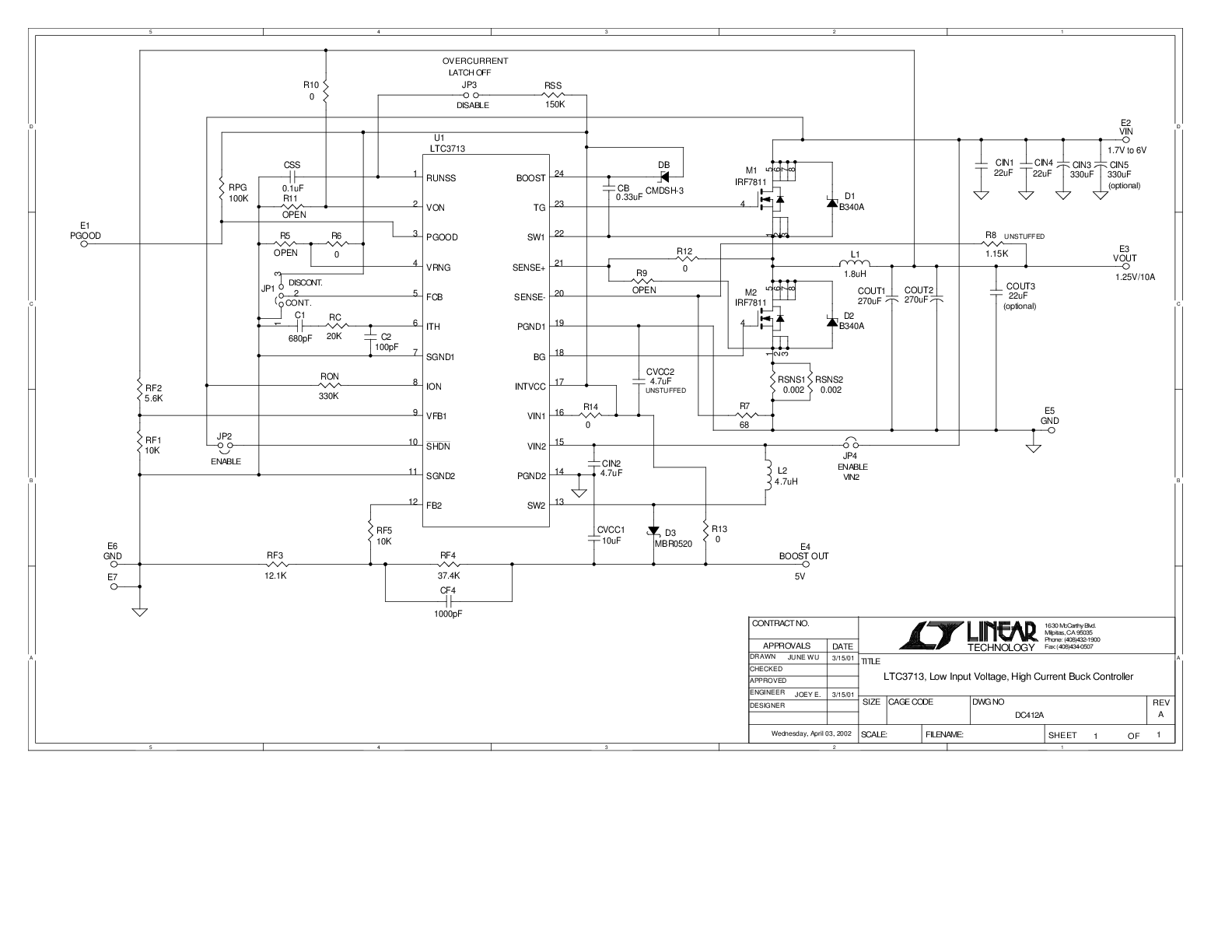

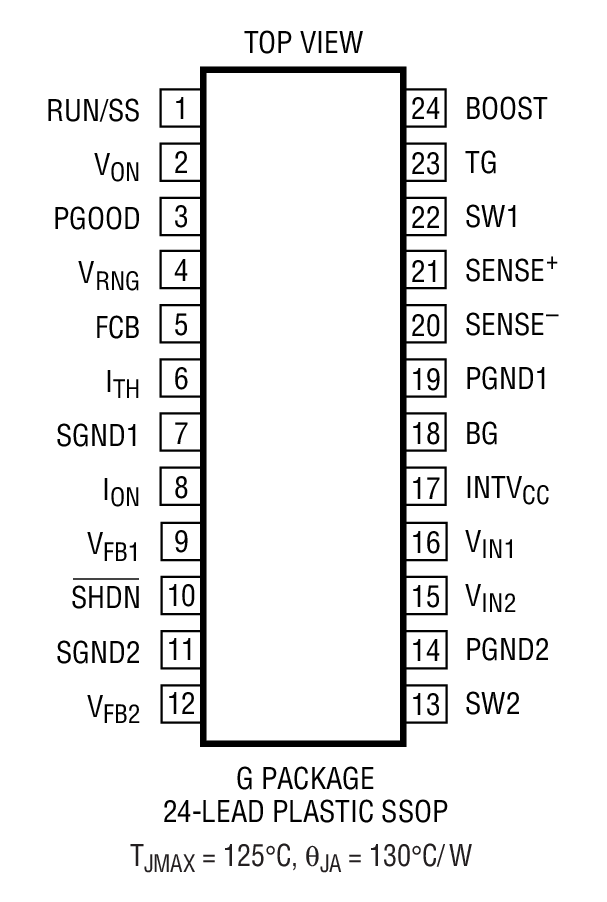

Small 24-Lead SSOP Package

Part Models: 2
1ku List Price: Starting From $4.94

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3713EG#PBF	24-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3713EG#TRPBF	24-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 6, 2022 - 22_0171 Laser Top Mark Conversion for SSOP Packages Assembled in PNG
		PCN22_0171_Form Material_Report Delta Qualification Matrix
LTC3713EG#PBF	PRODUCTION
LTC3713EG#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
