LTC3632

PRODUCTION

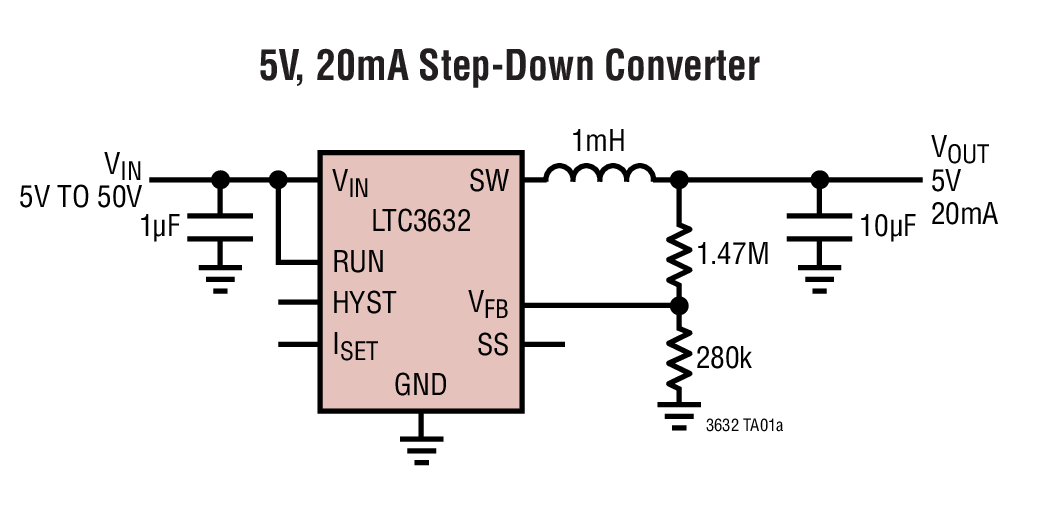

High Efficiency, High Voltage 20mA Synchronous Step-Down Converter

Part Models: 8
1ku List Price: Starting From $2.95

Viewing:

Part Details

Wide Input Voltage Range: Operation from 4.5V to 50V
Overvoltage Lockout Provides Protection Up to 60V
Internal High Side and Low Side Power Switches
No Compensation Required
20mA Output Current
Low Dropout Operation: 100% Duty Cycle
Low Quiescent Current: 12μA
Wide Output Voltage Range: 0.8V to V_IN
0.8V ±1% Feedback Voltage Reference
Adjustable Peak Current Limit
Internal and External Soft-Start
Precise RUN Pin Threshold with Adjustable Hysteresis
Few External Components Required

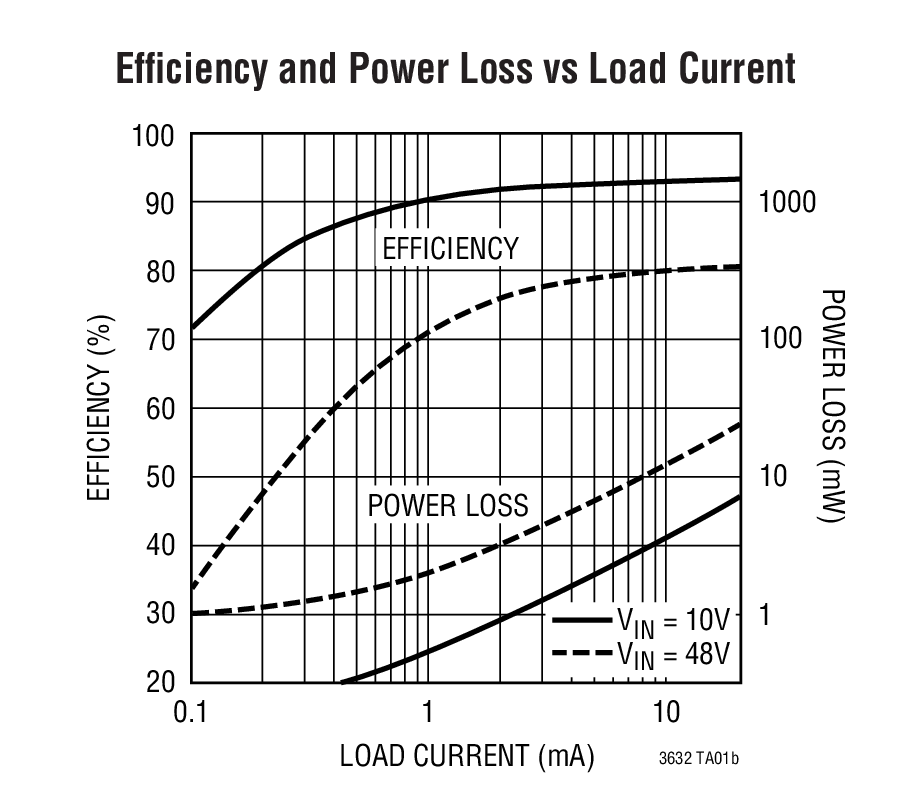

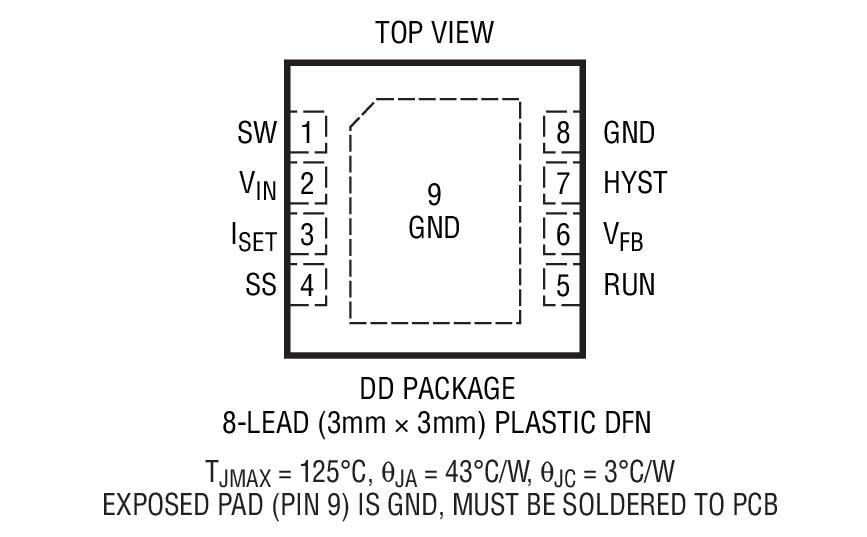

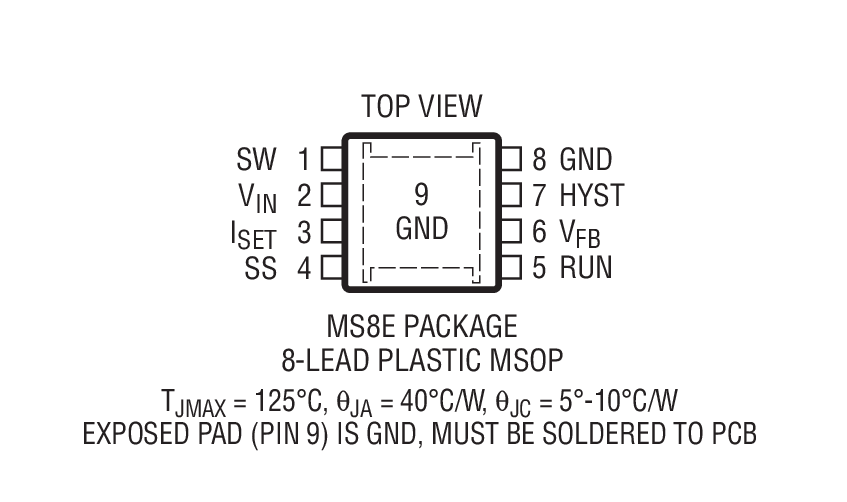

Low Profile (0.75mm) 3mm × 3mm DFN and Thermally Enhanced MS8E Packages

Part Models: 8
1ku List Price: Starting From $2.95

Documentation

Reliability Data 1

R526 Reliability Data 03/26/2018

Technical Articles 2

High Performance Portable DC Bench Power Supply: Save Money and Free Up Bench Real Estate by Building Your Own 07/01/2014

Robust DC/DC Step-Down Converter in 3mm × 3mm DFN Resists 60V Input Surges 09/01/2009

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3632EDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632EDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632EMS8E#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632EMS8E#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632IMS8E#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3632IMS8E#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 28, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC3632EDD#PBF	PRODUCTION
LTC3632EDD#TRPBF	PRODUCTION
LTC3632EMS8E#PBF	PRODUCTION
LTC3632EMS8E#TRPBF	PRODUCTION
LTC3632IDD#PBF	PRODUCTION
LTC3632IDD#TRPBF	PRODUCTION
LTC3632IMS8E#PBF	PRODUCTION
LTC3632IMS8E#TRPBF	PRODUCTION
Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC3632EMS8E#PBF	PRODUCTION
LTC3632EMS8E#TRPBF	PRODUCTION
LTC3632IMS8E#PBF	PRODUCTION
LTC3632IMS8E#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC3632EMS8E#PBF	PRODUCTION
LTC3632EMS8E#TRPBF	PRODUCTION
LTC3632IMS8E#PBF	PRODUCTION
LTC3632IMS8E#TRPBF	PRODUCTION
