LTC3408

PRODUCTION

1.5MHz, 600mA Synchronous Step-Down Regulator with Bypass Transistor

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.62

Viewing:

Part Details

Dynamically Adjustable Output from 0.3V to 3.5V
600mA Output Current
Internal 0.08Ω P-Channel MOSFET Bypass Transistor

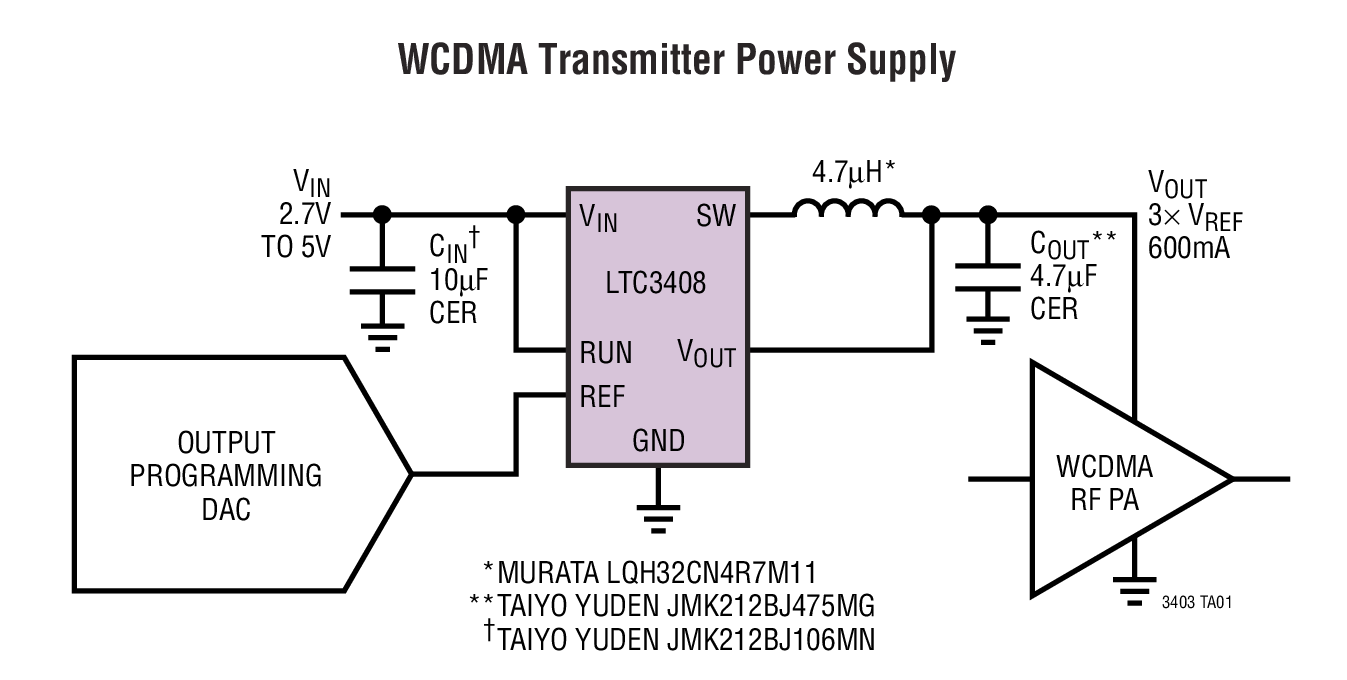

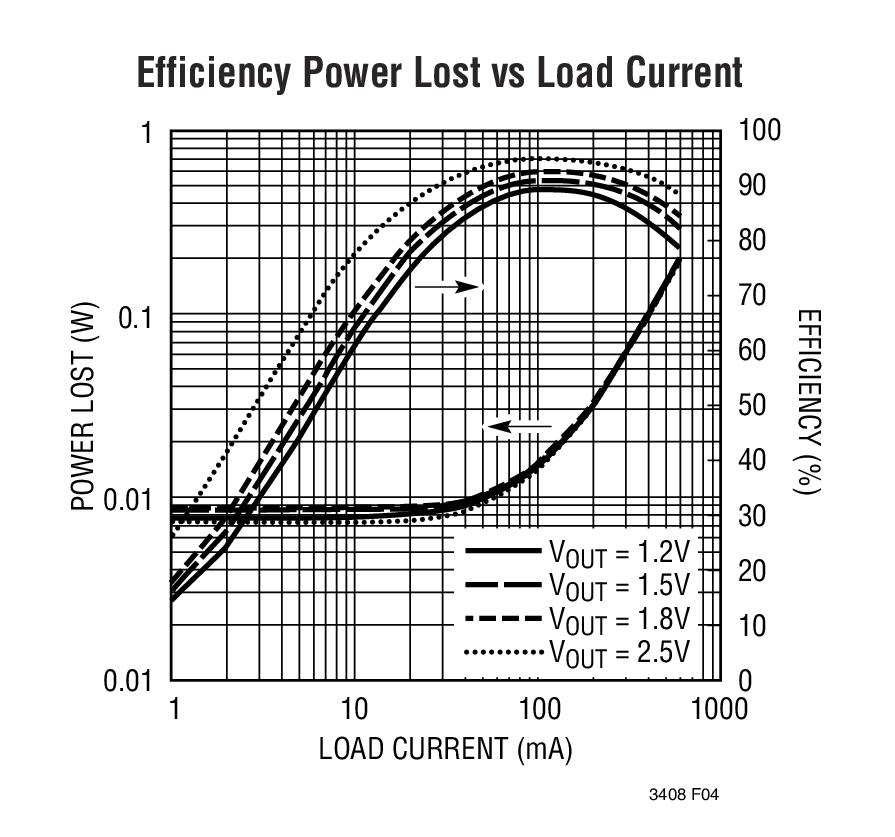

High Efficiency: Up to 96%
1.5MHz Constant Frequency Operation
No Schottky Diode Required
Low Dropout Operation: 100% Duty Cycle
2.5V to 5V Input Voltage Range
Shutdown Mode Draws <1µA Supply Current
Current Mode Operation for Excellent Line and Load Transient Response
Overtemperature Protected

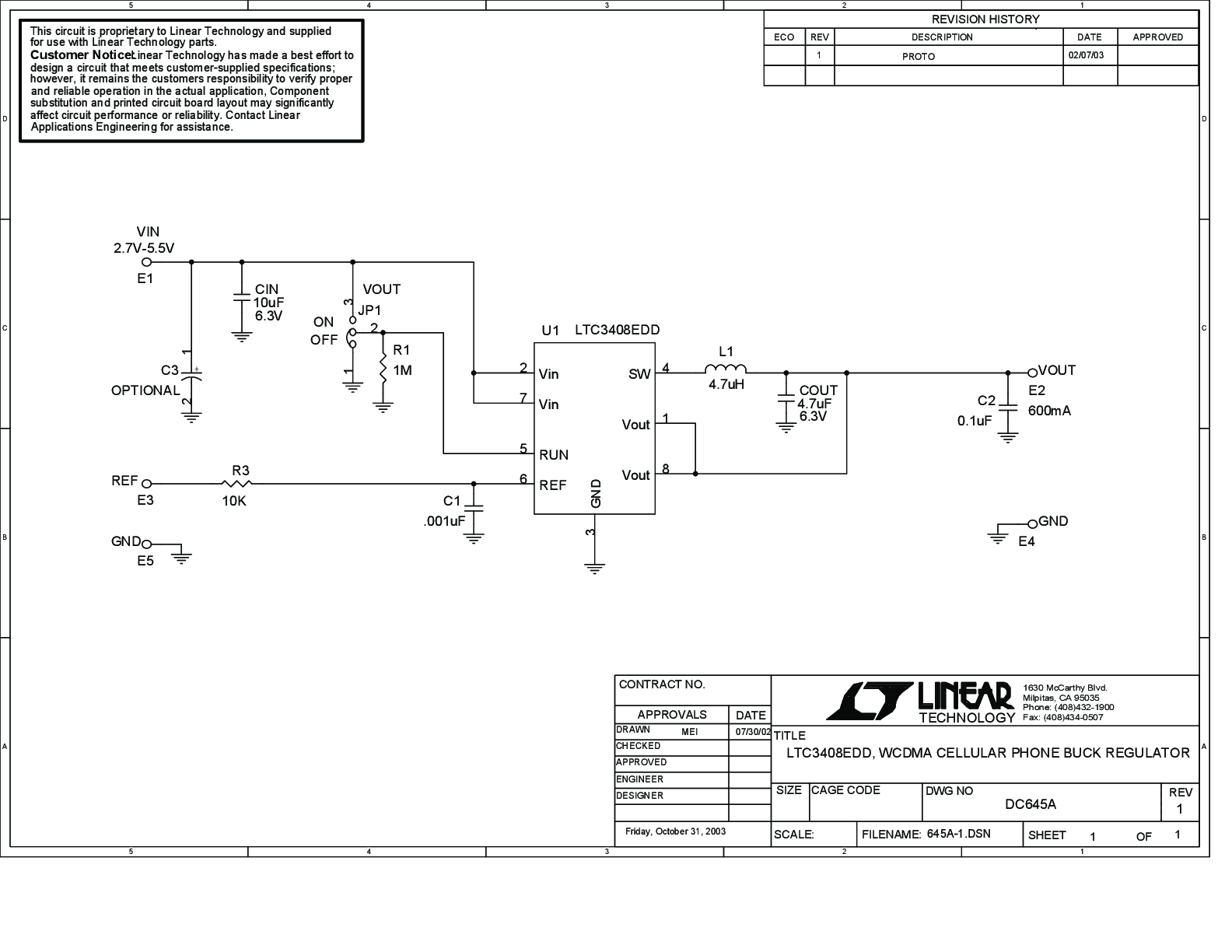

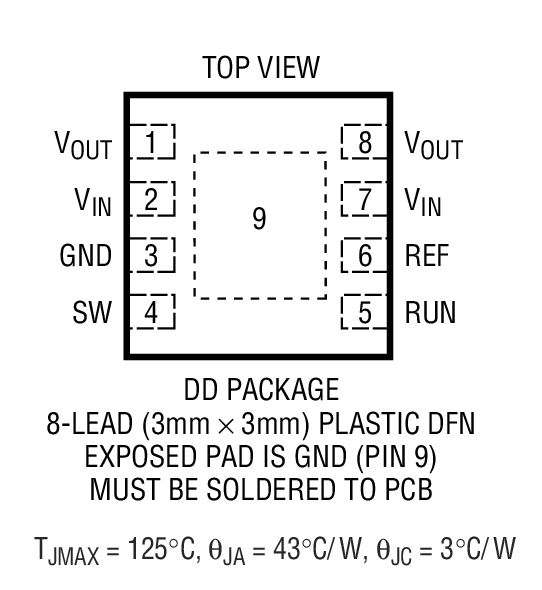

Available in 8-Lead 3mm x 3mm DFN Package

Part Models: 2
1ku List Price: Starting From $2.62

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3408EDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3408EDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
