LTC3407A-2

PRODUCTION

Dual Synchronous 800mA, 2.25MHz Step-Down DC/DC Regulator

Part Models: 8
1ku List Price: Starting From $3.54

Viewing:

Part Details

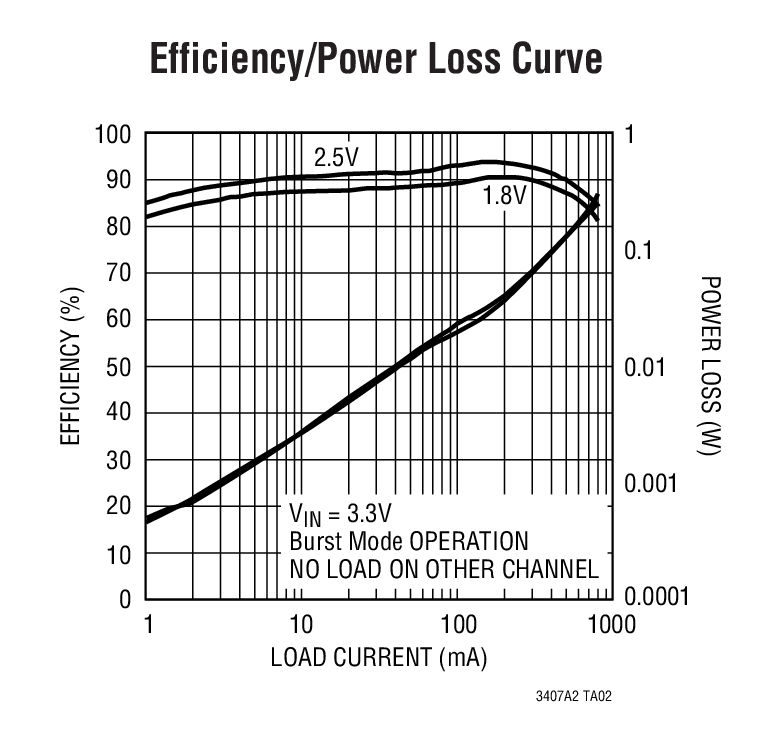

High Efficiency: Up to 95%
Low Ripple (<35mV_PK-PK) Burst Mode Operation; I_Q = 40µA
2.25MHz Constant Frequency Operation
No Schottky Diodes Required
Low R_DS(ON) Internal Switches: 0.35Ω
Current Mode Operation for Excellent Line and Load Transient Response
Short-Circuit Protected
Low Dropout Operation: 100% Duty Cycle
Ultralow Shutdown Current: I_Q <1µA
Output Voltages from 5V down to 0.6V
Power-On Reset Output
Externally Synchronizable Oscillator
Optional External Soft-Start
Small Thermally Enhanced MSOP and 3mm × 3mm DFN Packages

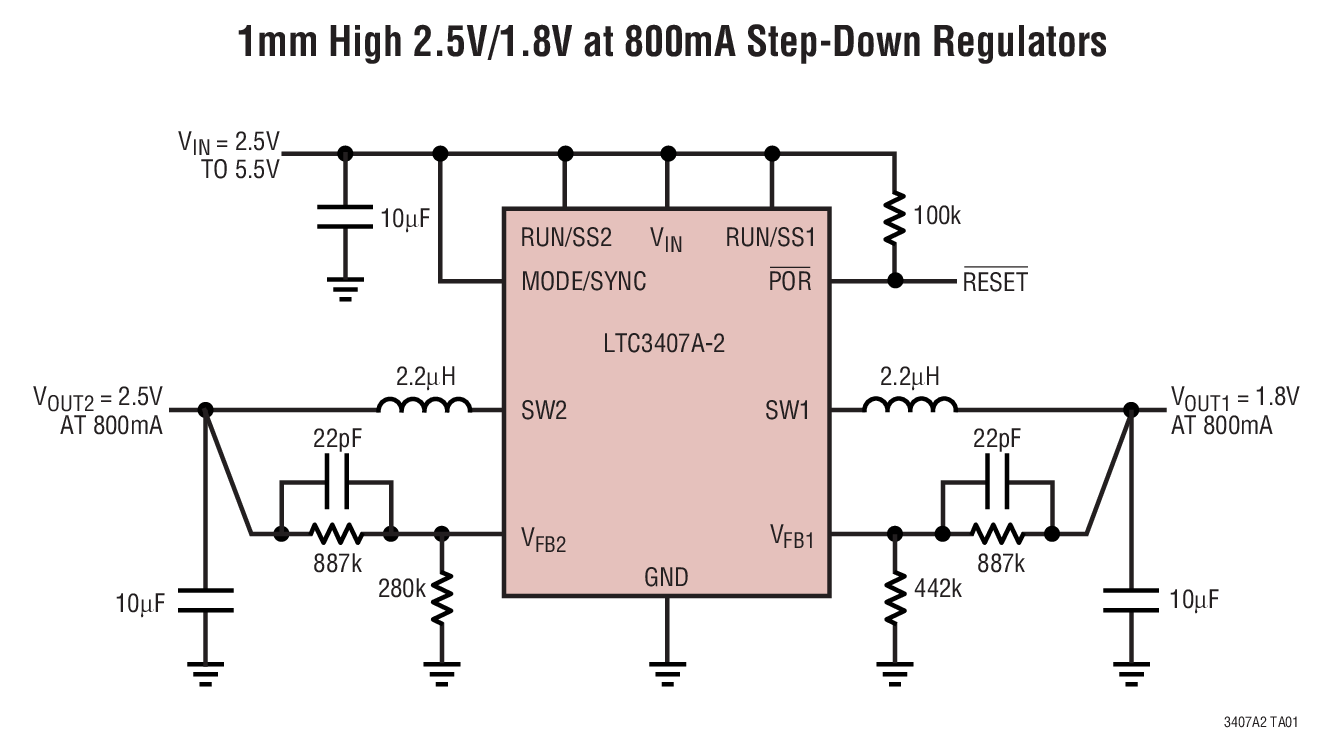

The LTC3407A-2 is a dual, constant frequency, synchronous step-down DC/DC converter. Intended for low power applications, it operates from a 2.5V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, enabling the use of tiny, low cost capacitors and inductors 1mm or less in height. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35Ω, 1A power switches provide high efficiency without the need for external Schottky diodes.

A user selectable mode input is provided to allow the user to trade-off ripple noise for low power efficiency. Burst Mode^® operation provides the highest efficiency at light loads, while Pulse Skip Mode provides the lowest ripple noise at light loads.

To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.


	I_OUT	F_SW	Features
LTC3407	2x 600mA	1.5MHz
LTC3407-2	2x 800mA	2.25MHz
LTC3407-3	2x 800mA	2.25MHz	Fixed 1.8V/3.3V
LTC3407-4	2x 800mA	2.25MHz	Reduced POR Delay
LTC3407A	2x 800mA	1.5MHz	Low Ripple Burst Mode
LTC3407A-2	2x 800mA	2.25MHz	Low Ripple Burst Mode

Applications

PDAs/Palmtop PCs
Digital Cameras
Cellular Phones
Wireless and DSL Modems

Part Models: 8
1ku List Price: Starting From $3.54

Documentation

Data Sheet 1

LTC3407A-2: Dual Synchronous 800mA, 2.25MHz Step-Down DC/DC Regulator Data Sheet 09/25/2007

Reliability Data 1

R415 Reliability Data 03/23/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

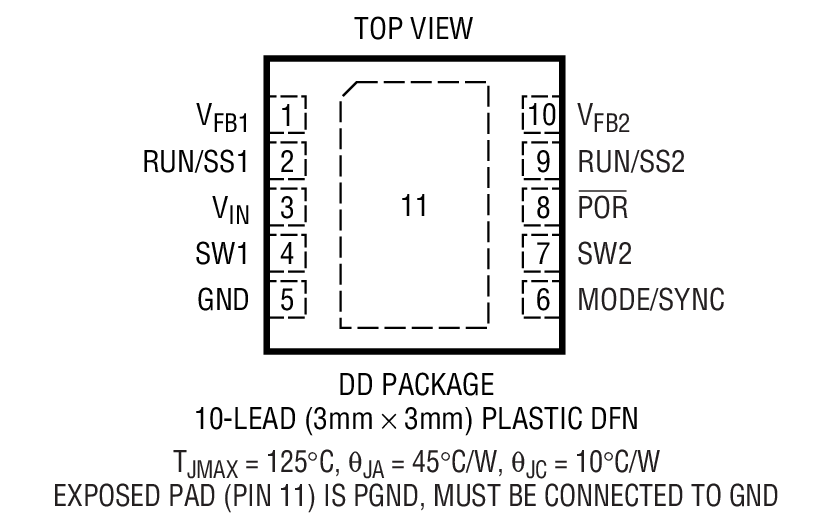

LTC3407AEDD-2#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AEDD-2#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

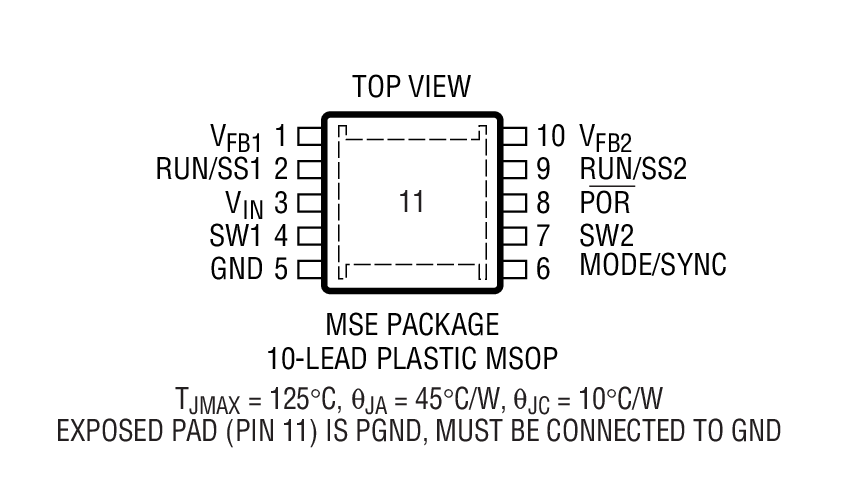

LTC3407AEMSE-2#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AEMSE-2#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIDD-2#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIDD-2#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIMSE-2#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIMSE-2#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC3407AEMSE-2#PBF	PRODUCTION
LTC3407AEMSE-2#TRPBF	PRODUCTION
Jul 12, 2022 - 22_0157 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]
		PCN22_0157_Form Material_Report Qualification Results Summary Delta Qualification Matrix Detailed Parts List
LTC3407AEMSE-2#PBF	PRODUCTION
LTC3407AEMSE-2#TRPBF	PRODUCTION
Jun 21, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices
		PCN22_0050_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC3407AEMSE-2#PBF	PRODUCTION
LTC3407AEMSE-2#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC3407AEMSE-2#PBF	PRODUCTION
LTC3407AEMSE-2#TRPBF	PRODUCTION
LTC3407AIMSE-2#PBF	PRODUCTION
LTC3407AIMSE-2#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Oscillators 1
LTC6908		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller
Supervisory Circuits & Reset ICs 1
LTC2935	PRODUCTION	Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds

Tools & Simulations

LTspice 1

LTC3407A-2 - Step-Down (Buck) Regulators

Models for the following parts are available in LTspice:

LTC3407
LTC3407-2
LTC3407-3
LTC3407-4
LTC3407A
LTC3407A-2

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTC3407
LTC3407-2
LTC3407-3
LTC3407-4

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
