LTC2637

PRODUCTION

Octal 12-/10-/8-Bit I2C VOUT DACs with 10ppm/°C Reference

Data Sheet (Rev. D) Product Selection Table
Viewing:

Part Details

  • Integrated Precision Reference:
    • 2.5V Full-Scale 10ppm/°C (LTC2637-L)
    • 4.096V Full-Scale 10ppm/°C (LTC2637-H)
  • Maximum INL Error: 2.5LSB (LTC2637-12)
  • Low Noise: 0.75mVP-P 0.1Hz to 200KHz
  • Guaranteed Monotonic Over –40°C to 125°C Temperature Range
  • Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range (LTC2637-L)
  • Ultralow Crosstalk Between DACs (<3nV•s)
  • Low Power: 100μA per DAC at 3V (LTC2637-L)
  • Power-On-Reset to Zero-Scale/Mid-Scale
  • Double-Buffered Data Latches
  • Tiny 14-Lead 4mm × 3mm DFN and 16-Lead MSOP Packages
LTC2637
Octal 12-/10-/8-Bit I2C VOUT DACs with 10ppm/°C Reference

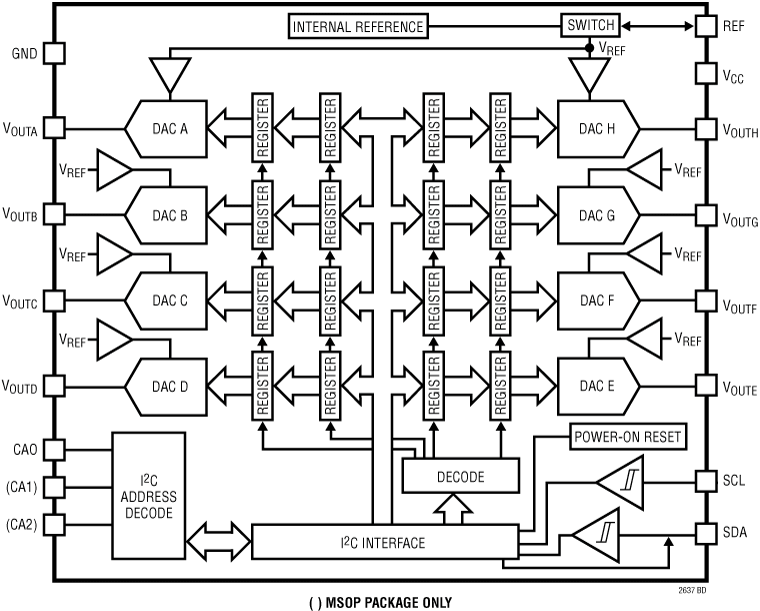

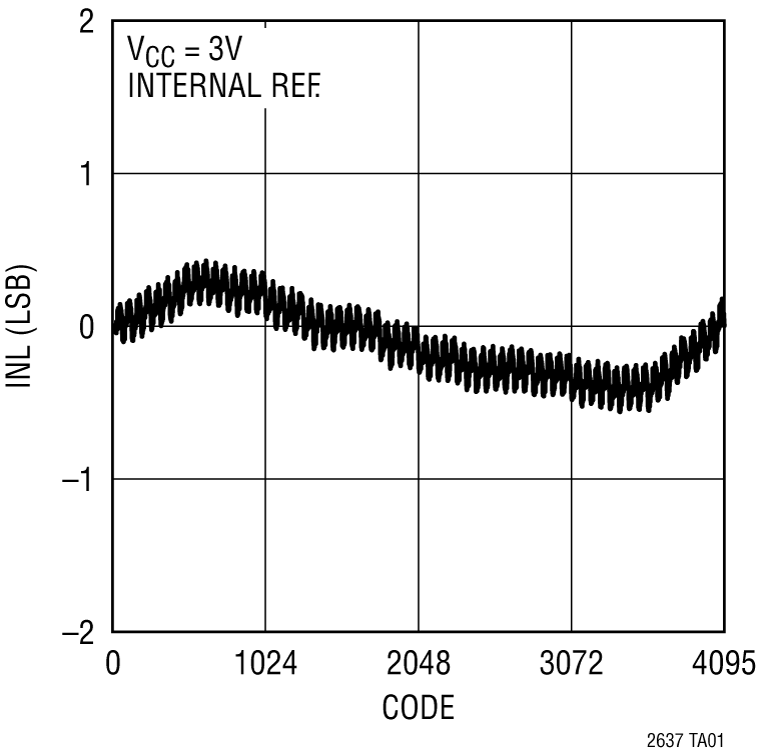

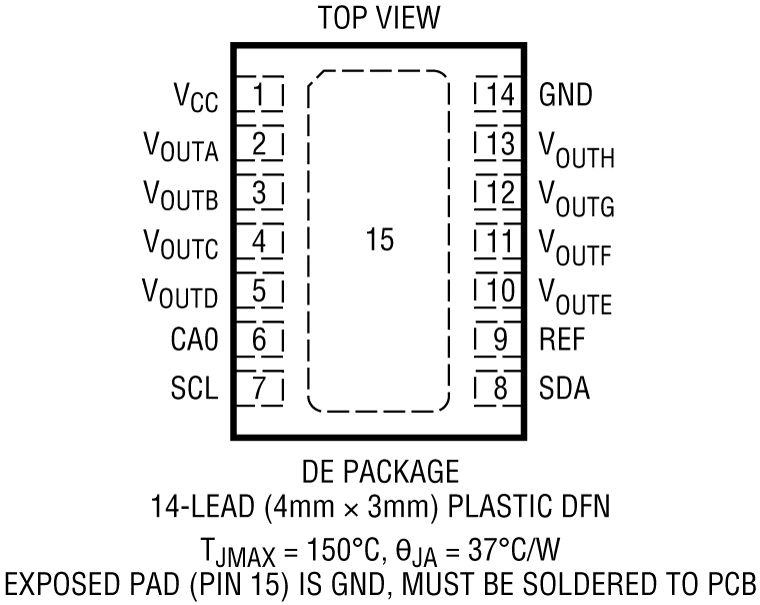

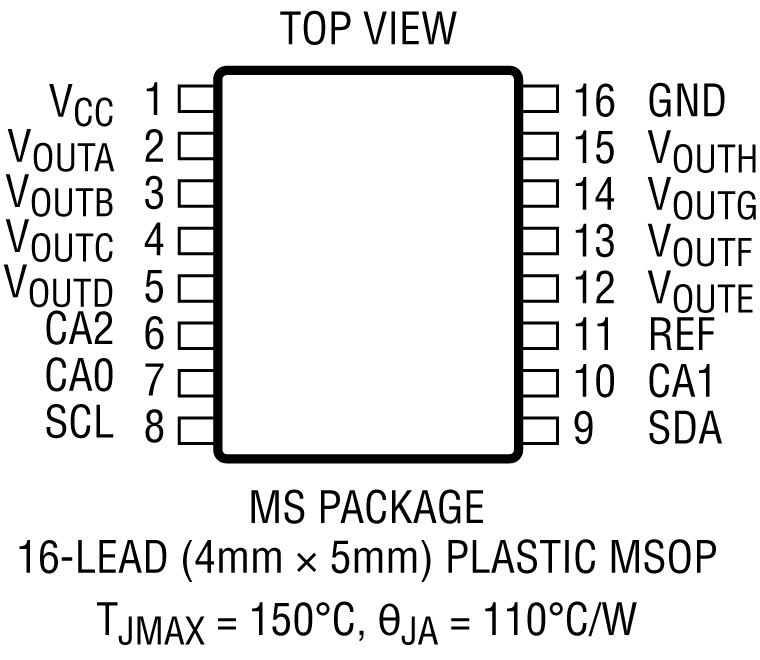

LTC2637 Application Circuit LTC2637 Pin Configuration LTC2637 Pin Configuration LTC2637 Performance Graph
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Interface Transceivers & Isolators 1
LTM2883
PRODUCTION SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power
Level Translators & Buffers 1
LTC4317
PRODUCTION Dual I2C/SMBus Address Translator
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

Linduino 3

LTpowerPlay®

LTpowerPlay® is a powerful, Windows-based development environment supporting Linear Technology's Digital Power System Management (PSM) products.

Open Tool

Evaluation Kits

eval board

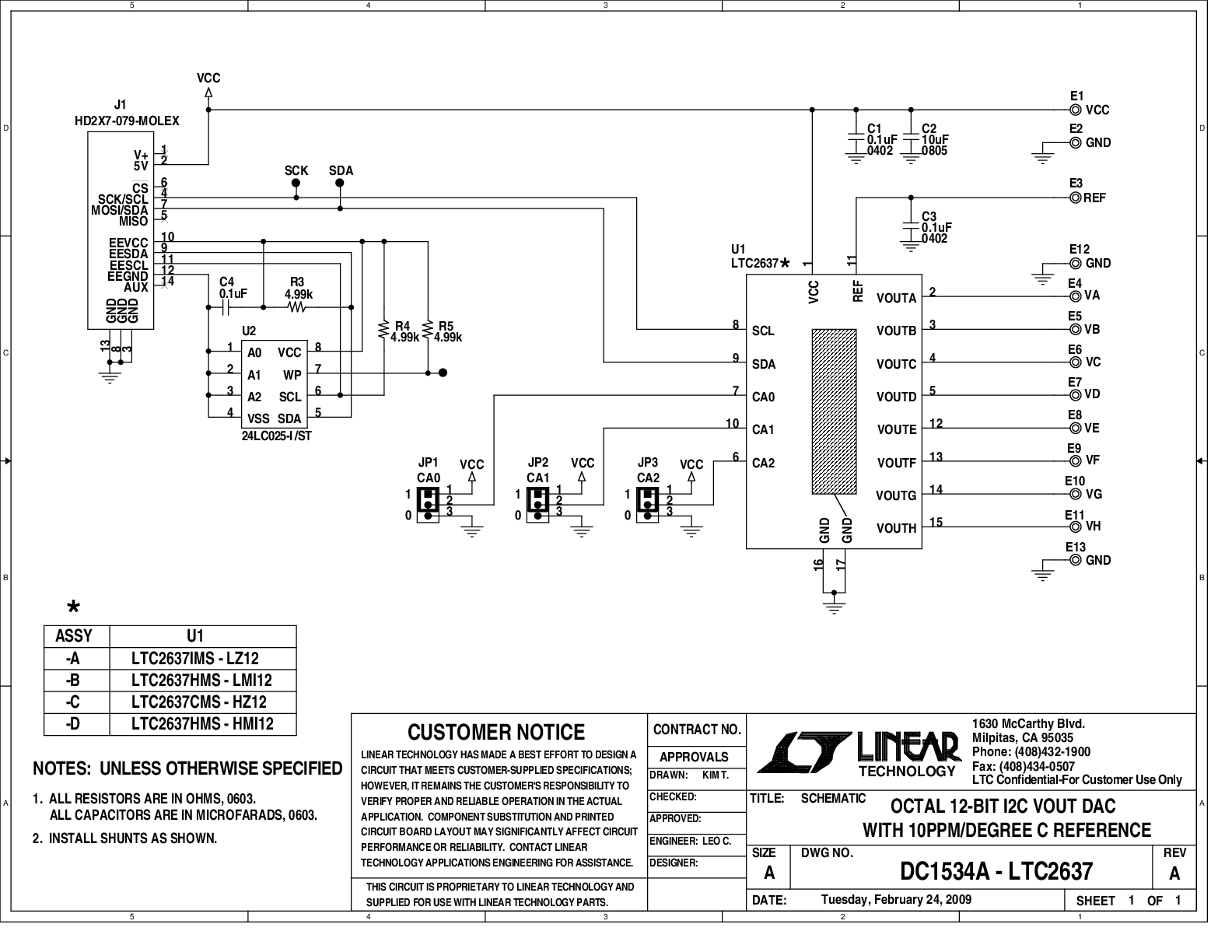

schematic 1
