LTC2634

PRODUCTION

Quad 12-/10-/8-Bit Rail-to-Rail DACs with 10ppm/°C Reference

Data Sheet (Rev. E) Product Selection Table
Viewing:

Part Details

  • AEC-Q100 Qualified for Automotive Applications
  • Integrated Precision Reference
    • 2.5V Full-Scale 10ppm/°C (LTC2634-L)
    • 4.096V Full-Scale 10ppm/°C (LTC2634-H)
  • Maximum INL Error: ±2.5 LSB (LTC2634-12)
  • Low Noise: 0.75mVP-P 0.1Hz to 200KHz
  • Guaranteed Monotonic over −40°C to 125°C Temperature Range
  • Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range (LTC2634-L)
  • Ultralow Crosstalk Between DACs (2.4nV•s)
  • Low Power: 0.6mA at 3V
  • Power-On Reset to Zero-Scale/Mid-Scale
  • Double Buffered Data Latches
  • Tiny 16-Lead 3mm × 3mm QFN and 10-Lead MSOP Packages
    •
    LTC2634
    Quad 12-/10-/8-Bit Rail-to-Rail DACs with 10ppm/°C Reference

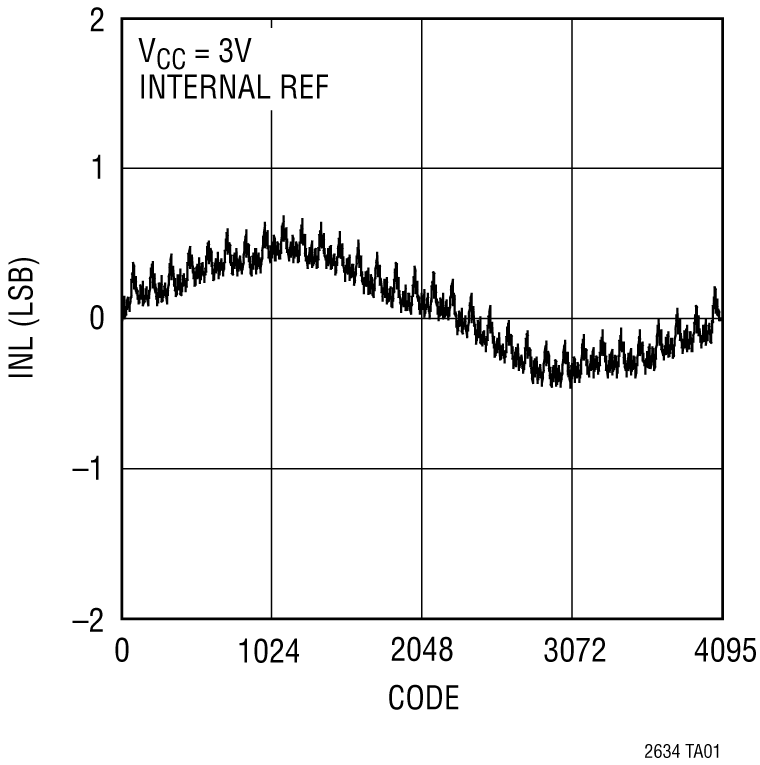

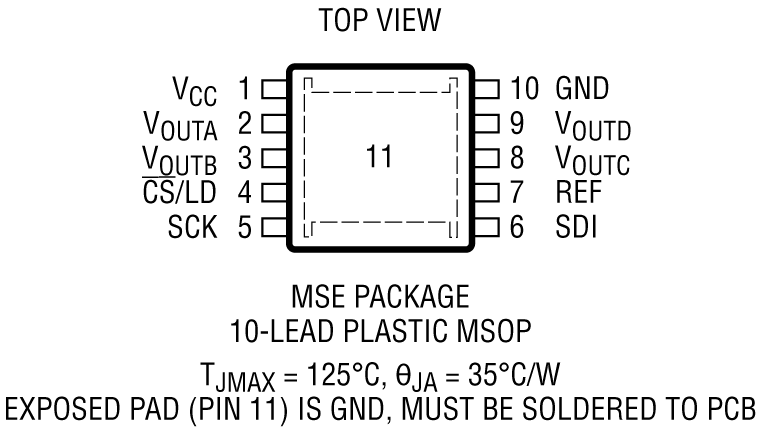

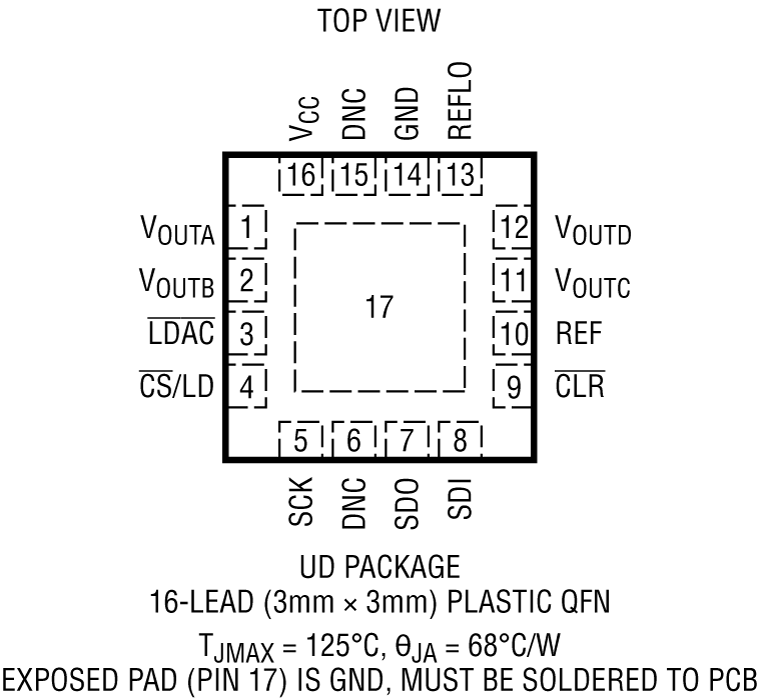

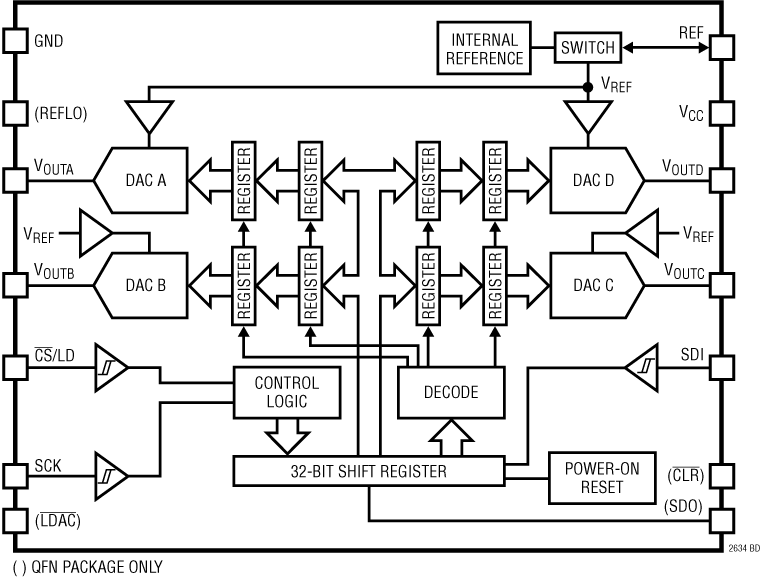

    LTC2634 Application Circuit LTC2634 Pin Configuration LTC2634 Pin Configuration LTC2634 Performance Graph
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    User Guide 1

    Learn More
    Add to myAnalog

    Add media to the Resources section of myAnalog, to an existing project or to a new project.

    Create New Project

    Software Resources

    Device Drivers 1

    Hardware Ecosystem

    Parts Product Life Cycle Description
    Digital-to-Analog Converters (DACs) 1
    LTC2645
    		PRODUCTION Quad 12-/10-/8-Bit PWM to VOUT DACs with 10ppm/°C Reference
    Interface Transceivers & Isolators 1
    LTM2883
    		PRODUCTION SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power
    Modal heading
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Tools & Simulations

    Linduino 3

    Evaluation Kits

    eval board
    schematic 1
    DC1488A-D

    LTC2634-HMI12: 12-Bit VOUT Quad DAC (4.096V Reference, Reset to Mid-scale, Internal Reference), (Requires DC590)

    Buy Now View Details

    Product Details

    DC1488A-D: Demo Board for the LTC2634-12 Quad 12-Rail-to-Rail DACs with 10ppm/°C Reference.

    eval board
    schematic 2
    DC1488A-B

    LTC2634-LMI12: 12-Bit Quad VOUT DAC (2.5V Reference, Reset to Mid-scale, Internal Reference), (Requires DC590)

    Buy Now View Details

    Product Details

    DC1488A-B: Demo Board for the LTC2634-12 Quad 12-Rail-to-Rail DACs with 10ppm/°C Reference.

    eval board
    schematic 3
    DC1488A-A

    LTC2634-LZ12 | 12-Bit Quad VOUT DAC (2.5V Reference, Reset to Zero-scale), (Requires DC590)

    Buy Now View Details

    Product Details

    DC1488A-A: Demo Board for the LTC2634-12 Quad 12-Rail-to-Rail DACs with 10ppm/°C Reference.

    eval board
    schematic 4
    DC1488A-C

    LTC2634-HZ12: 12-Bit VOUT Quad DAC (4.096V Reference, Reset to Zero-scale), (Requires DC590)

    Buy Now View Details

    Product Details

    DC1488A-C: Demo Board for the LTC2634-12 Quad 12-Rail-to-Rail DACs with 10ppm/°C Reference.
    DC1488A-D
    LTC2634-HMI12: 12-Bit VOUT Quad DAC (4.096V Reference, Reset to Mid-scale, Internal Reference), (Requires DC590)

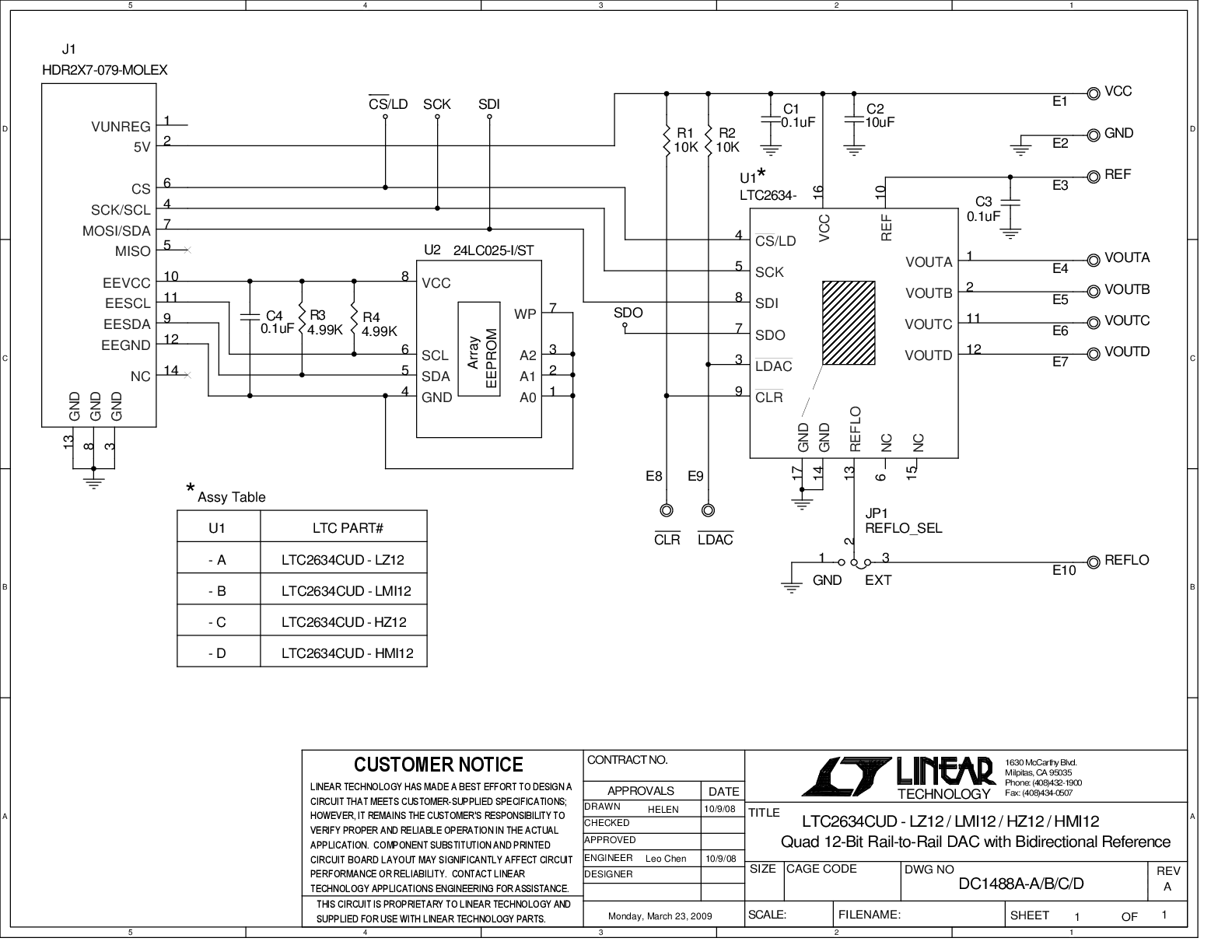

    DC1488A-A - Schematic
    DC1488A-B
    LTC2634-LMI12: 12-Bit Quad VOUT DAC (2.5V Reference, Reset to Mid-scale, Internal Reference), (Requires DC590)
    DC1488A-A - Schematic
    DC1488A-A
    LTC2634-LZ12 | 12-Bit Quad VOUT DAC (2.5V Reference, Reset to Zero-scale), (Requires DC590)
    DC1488A-A - Schematic
    DC1488A-C
    LTC2634-HZ12: 12-Bit VOUT Quad DAC (4.096V Reference, Reset to Zero-scale), (Requires DC590)
    DC1488A-A - Schematic
