LTC2240-12

PRODUCTION

12-Bit, 170Msps ADC

Part Models: 4
1ku List Price: Starting From $45.07

Viewing:

Part Details

Sample Rate: 170Msps
65.6dB SNR

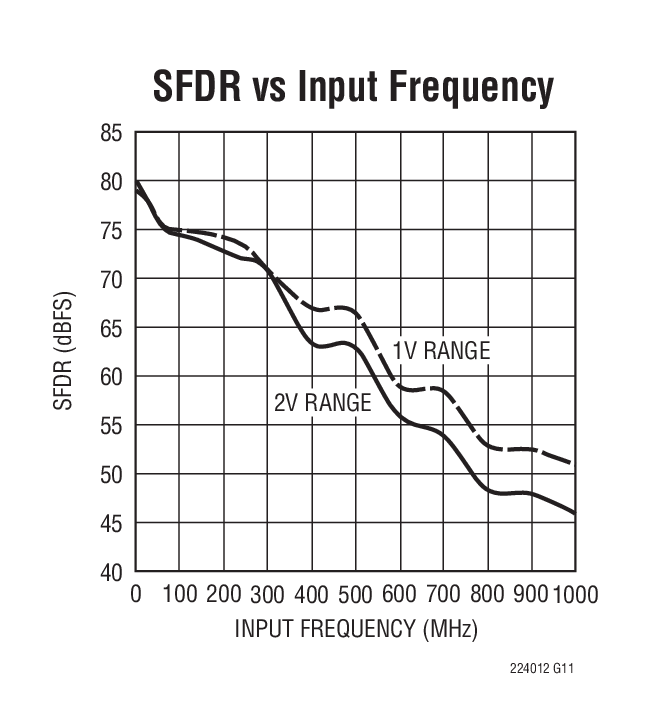

80dB SFDR
1.2GHz Full Power Bandwidth S/H
Single 2.5V Supply
Low Power Dissipation: 445mW
LVDS, CMOS, or Demultiplexed CMOS Outputs
Selectable Input Ranges: ±0.5V or ±1V
No Missing Codes
Optional Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Data Ready Output Clock
Pin Compatible Family
- 250Msps: LTC2242-12 (12-Bit), LTC2242-10(10-Bit)
- 210Msps: LTC2241-12 (12-Bit), LTC2241-10 (10-Bit)
- 170Msps: LTC2240-12 (12-Bit), LTC2240-10 (10-Bit)
- 185Msps: LTC2220-1 (12-Bit)*
- 170Msps: LTC2220 (12-Bit), LTC2230 (10-Bit)*
- 135Msps: LTC2221 (12-Bit), LTC2231 (10-Bit)*

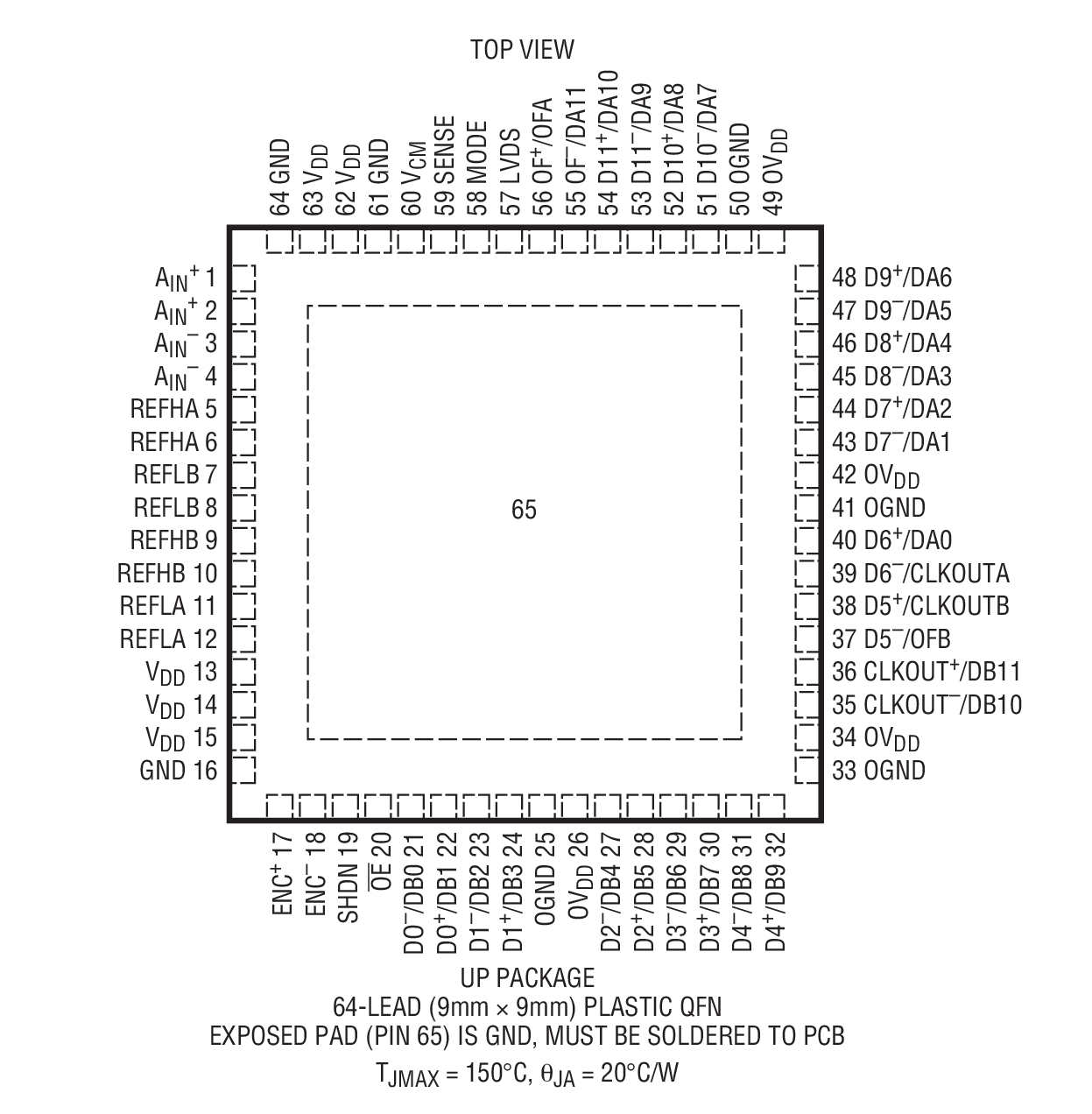

64-Pin 9mm × 9mm QFN Package

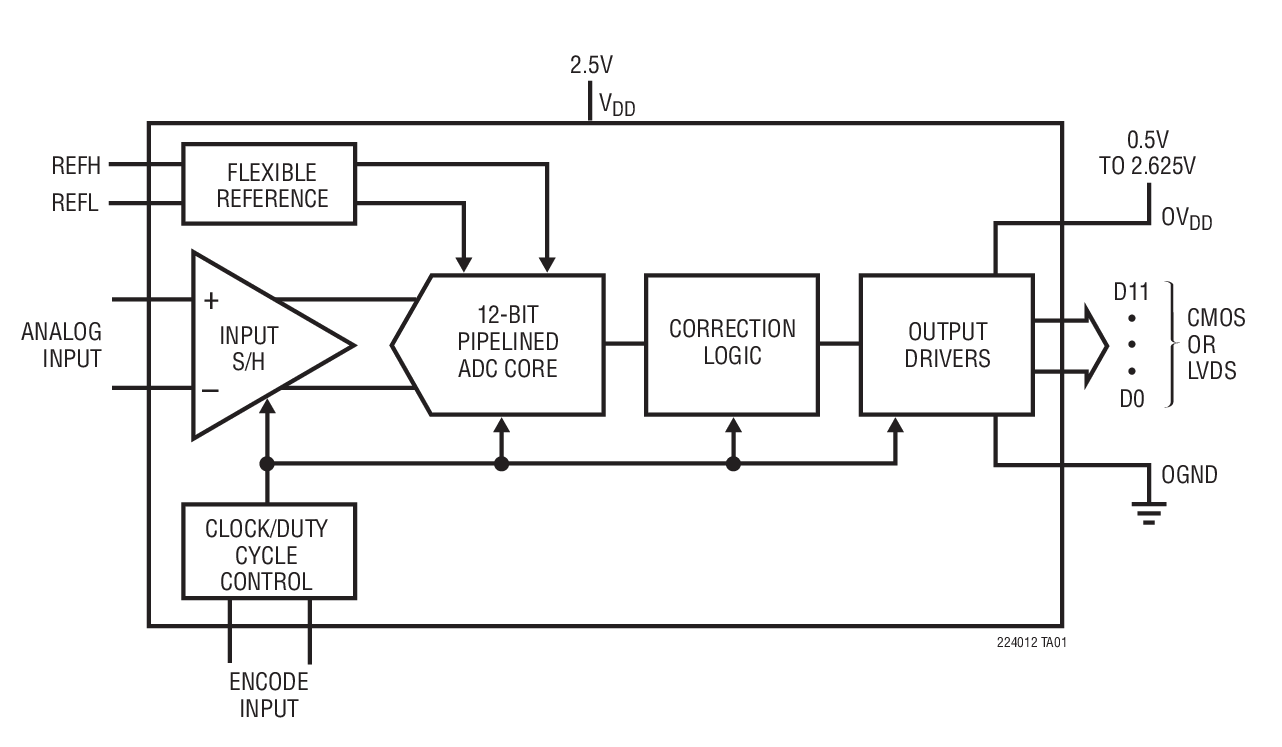

The LTC2240-12 is a 170Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2240-12 is perfect for demanding communications applications with AC performance that includes 65.6dB SNR and 80dB SFDR. Ultralow jitter of 95fs_RMS allows IF undersampling with excellent noise performance.

DC specs include ±0.6LSB INL (typ), ±0.4LSB DNL (typ) and no missing codes over temperature.

The digital outputs can be either differential LVDS, or single-ended CMOS. There are three format options for the CMOS outputs: a single bus running at the full data rate or two demultiplexed buses running at half data rate with either interleaved or simultaneous update. A separate output power supply allows the CMOS output swing to range from 0.5V to 2.625V.

The ENC⁺ and ENC^– inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance over a wide range of clock duty cycles.


	Bits
LTC2240-10	10
LTC2240-12	12

Applications

Wireless and Wired Broadband Communication
Cable Head-End Systems
Power Amplifier Linearization
Communications Test Equipment

Part Models: 4
1ku List Price: Starting From $45.07

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC2240CUP-12#PBF	64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2240CUP-12#TRPBF	64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2240IUP-12#PBF	64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2240IUP-12#TRPBF	64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 6, 2021 - 21_0108 Moisture Sensitivity Level Rating Downgrade for LTC2240 QFN (UP64) package
		PCN21_0108_Form Material_Report
LTC2240CUP-12#PBF	PRODUCTION
LTC2240CUP-12#TRPBF	PRODUCTION
LTC2240IUP-12#PBF	PRODUCTION
LTC2240IUP-12#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Evaluation Software 1

LinearLab Tools

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

LinearLab Tools

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Analog-to-Digital Converters (ADCs) 1
LTC2150-14	PRODUCTION	Single 14-Bit 170Msps ADCs
Differential Amplifiers 1
LTC6401-20	LAST TIME BUY	1.3GHz Low Noise, Low Distortion Differential ADC Driver for 140MHz IF
