LTC1516

PRODUCTION

Micropower, Regulated 5V Charge Pump DC/DC Converter

Data Sheet
Part Models
4
1ku List Price
Starting From $4.19
Viewing:

Part Details

  • Ultralow Power: Typical Operating ICC = 12µA
  • Short Circuit/Thermal Protection
  • Regulated 5V ±4% Output
  • 2V to 5V Input Range
  • No Inductors
  • ICC in Shutdown: < 1µA
  • Output Current:
    • 20mA (VIN > 2V)
    • 50mA (VIN > 3V)
  • Shutdown Disconnects Load from VIN
  • Internal Oscillator: 600kHz
  • Compact Application Circuit (0.1 in2)

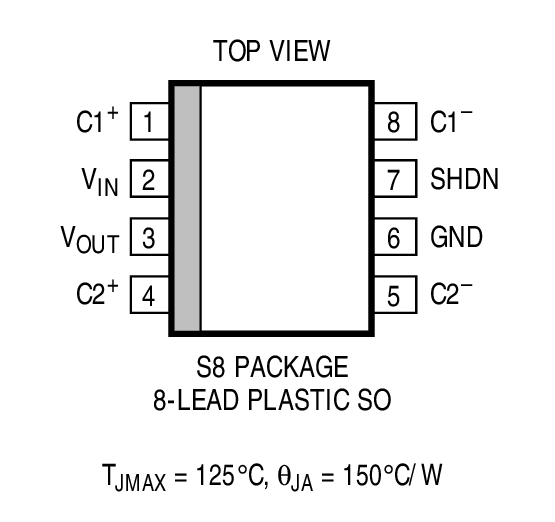

  • 8-Pin SO Package
LTC1516
Micropower, Regulated 5V Charge Pump DC/DC Converter

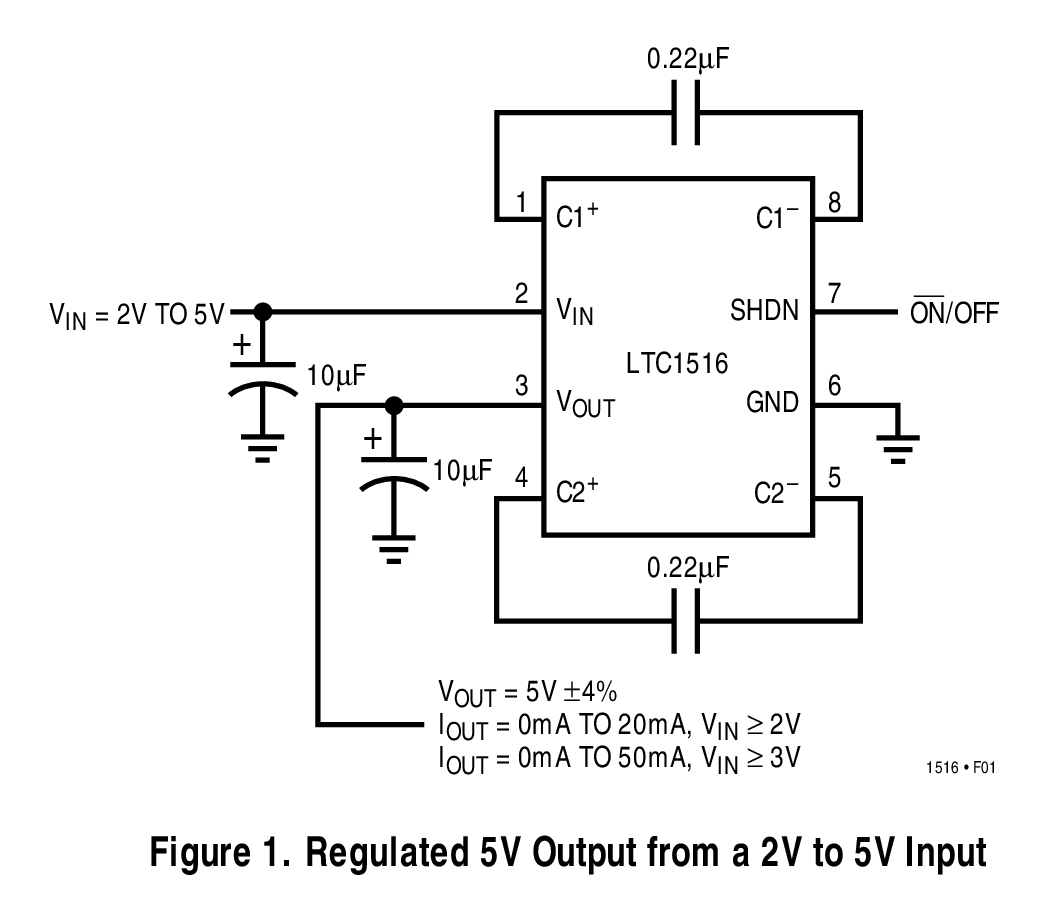

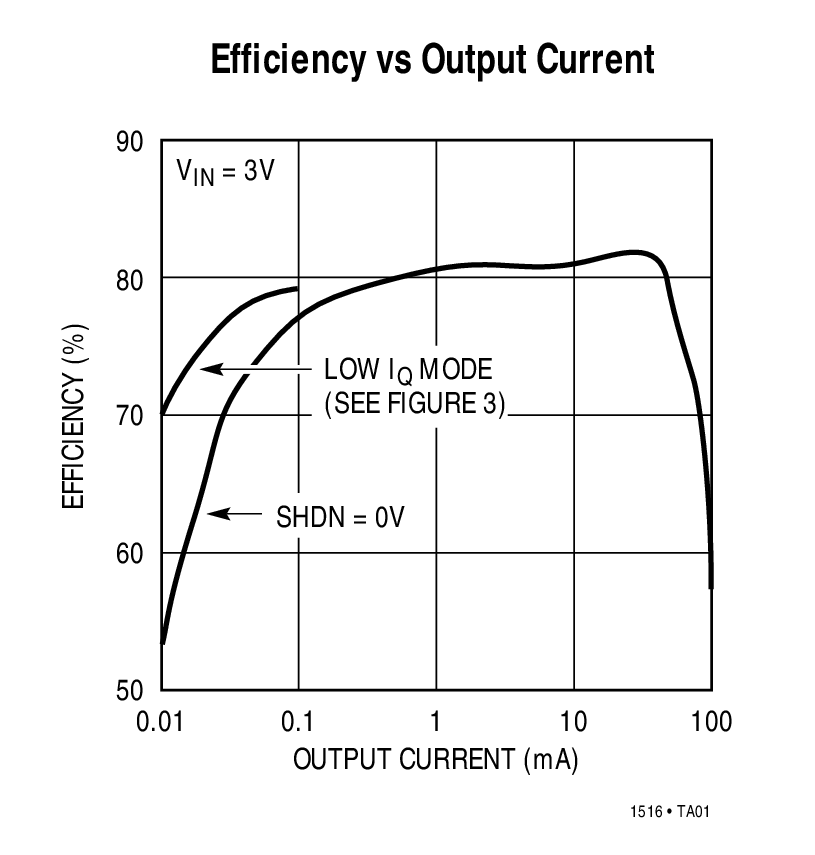

Figure 1. Regulated 5V Output from a 2V to 5V Input Efficiency vs Output Current Product Package 1
