LTC1392
PRODUCTIONMicropower Temperature, Power Supply and Differential Voltage Monitor
- Part Models
- 6
- 1ku List Price
- Starting From $4.86
Part Details
- Complete Ambient Temperature Sensor Onboard
- System Power Supply Monitor
- 10-Bit Resolution Rail-to-Rail Common-Mode Differential Voltage Input

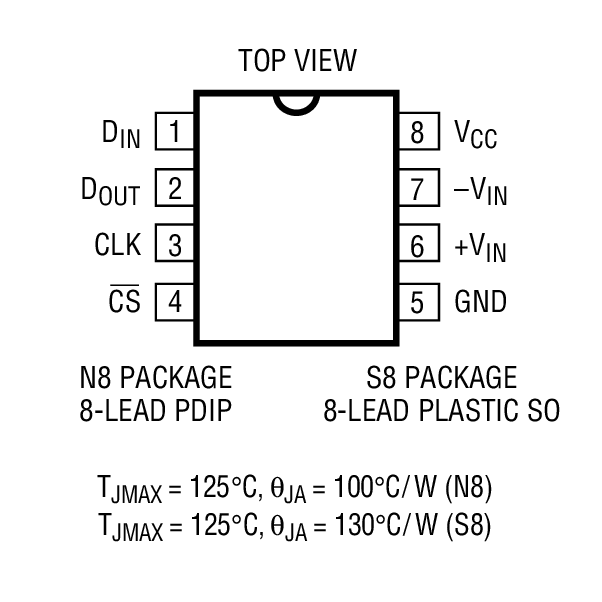

- Available in 8-Pin SO and PDIP
- 0.2µA Supply Current When Idle
- 700µA Supply Current When Sampling at Maximum Rate
- Single Supply Voltage: 4.5V to 6V
- 3-Wire Half-Duplex Serial I/O
- Communicates with Most MPU Serial Ports and All MPU Parallel I/O Ports
The LTC1392 is a micropower data acquisition system designed to measure temperature, on-chip supply voltage and a differential voltage. The differential inputs feature rail-to-rail common mode input voltage range. The LTC1392 contains a temperature sensor, a 10-bit A/D converter with sample-and-hold, a high accuracy bandgap reference and a 3-wire half-duplex serial interface.

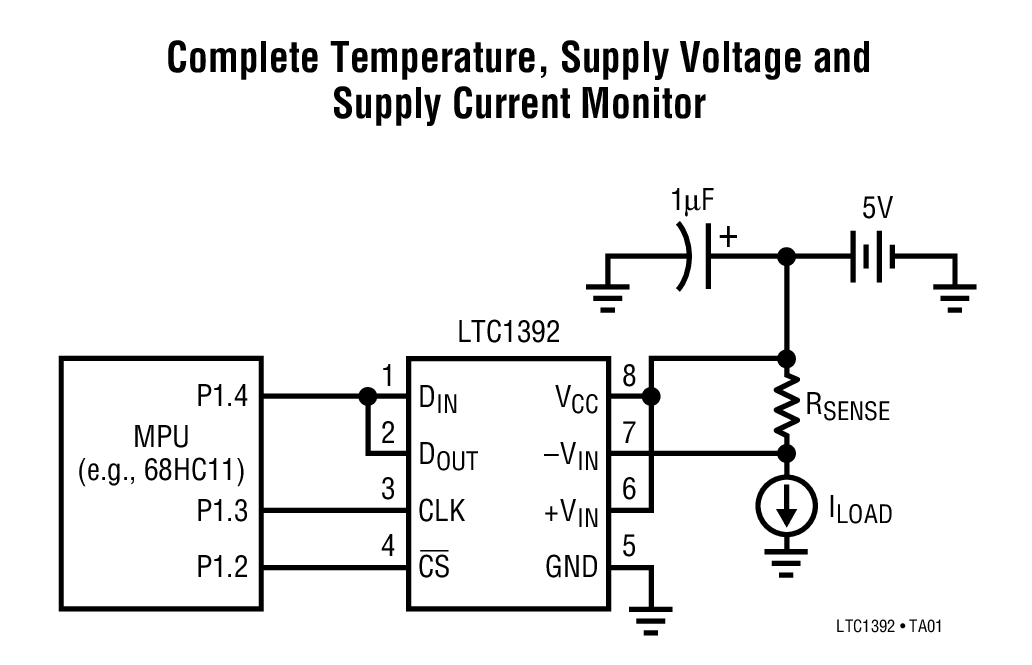

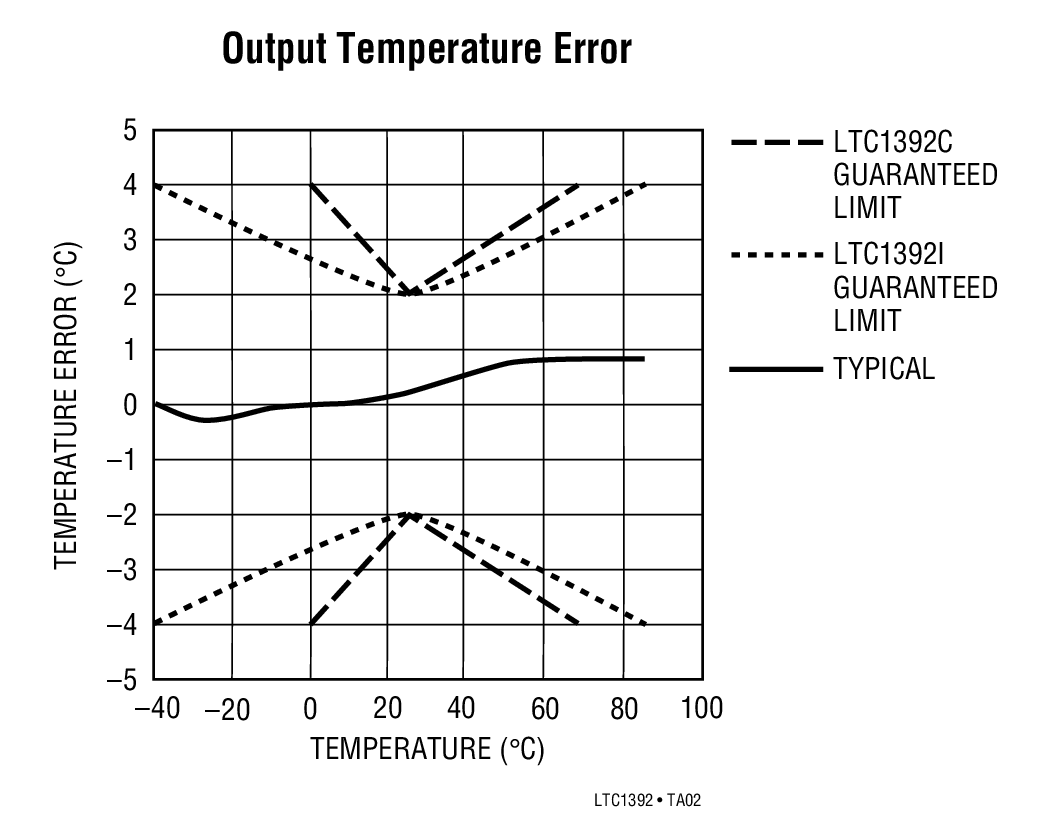

The LTC1392 can be programmed to measure ambient temperature, power supply voltage and an external voltage at the differential input pins, that can also be used for current measurement using an external sense resistor. When measuring temperature, the output code of the A/D converter is linearly proportional to the temperature in °C. Production trimming achieves ±2°C initial accuracy at room temperature and ±4°C over the full -40°C to 85°C temperature range.
The on-chip serial port allows efficient data transfer to a wide range of MPUs over three or four wires. This, coupled with low power consumption, makes remote location sensing possible and facilitates transmitting data through isolation barriers.
Applications
- Temperature Measurement
- Power Supply Measurement
- Current Measurement
- Remote Data Acquisition
- Environment Monitoring
Documentation
Data Sheet 1
Reliability Data 1
Application Note 1
Design Note 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC1392CN8#PBF | 8-Lead PDIP (Narrow 0.3 Inch) | ||
| LTC1392CS8#PBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LTC1392CS8#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LTC1392IN8#PBF | 8-Lead PDIP (Narrow 0.3 Inch) | ||
| LTC1392IS8#PBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LTC1392IS8#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package |
||
| LTC1392CN8#PBF | PRODUCTION | |
| LTC1392IN8#PBF | PRODUCTION | |
|
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG] |
||
| LTC1392CN8#PBF | PRODUCTION | |
| LTC1392IN8#PBF | PRODUCTION | |
|
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2) |
||
| LTC1392CS8#PBF | PRODUCTION | |
| LTC1392CS8#TRPBF | PRODUCTION | |
| LTC1392IS8#PBF | PRODUCTION | |
| LTC1392IS8#TRPBF | PRODUCTION | |
|
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM |
||
| LTC1392CS8#PBF | PRODUCTION | |
| LTC1392CS8#TRPBF | PRODUCTION | |
| LTC1392IS8#PBF | PRODUCTION | |
| LTC1392IS8#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
