LTC1337

PRODUCTION

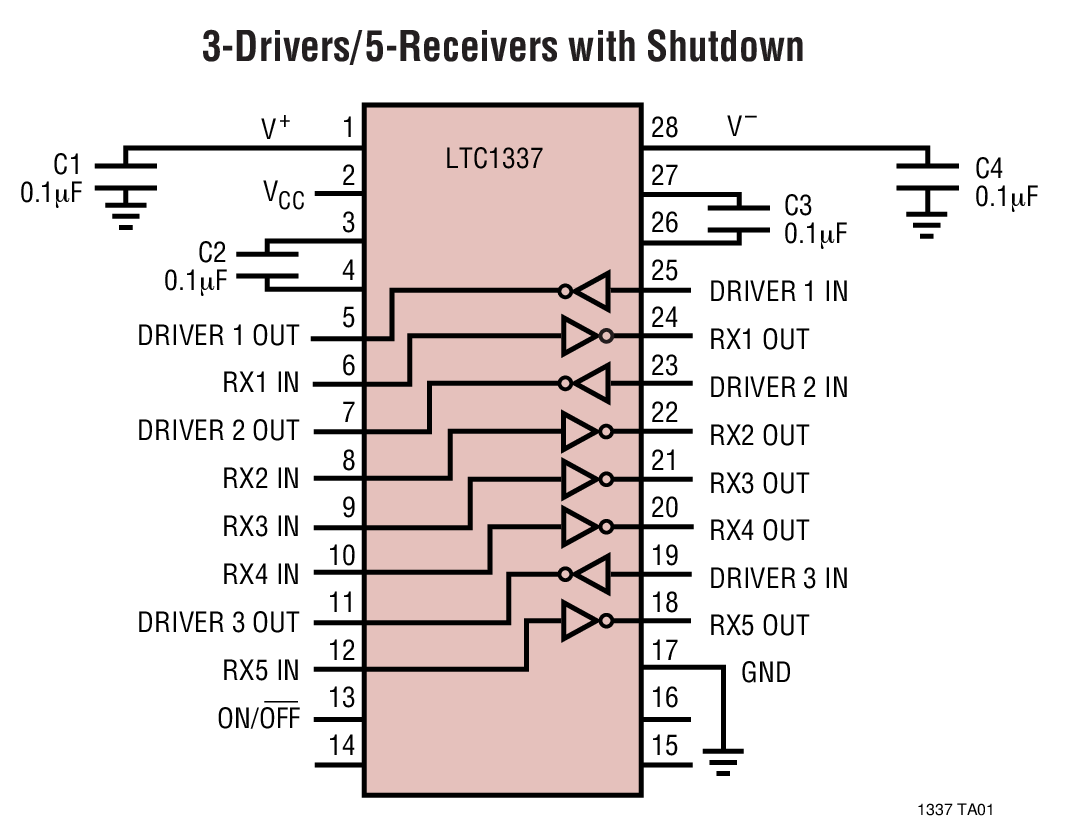

5V Low Power RS232 3-Driver/5-Receiver Transceiver

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: Starting From $6.95

Viewing:

Part Details

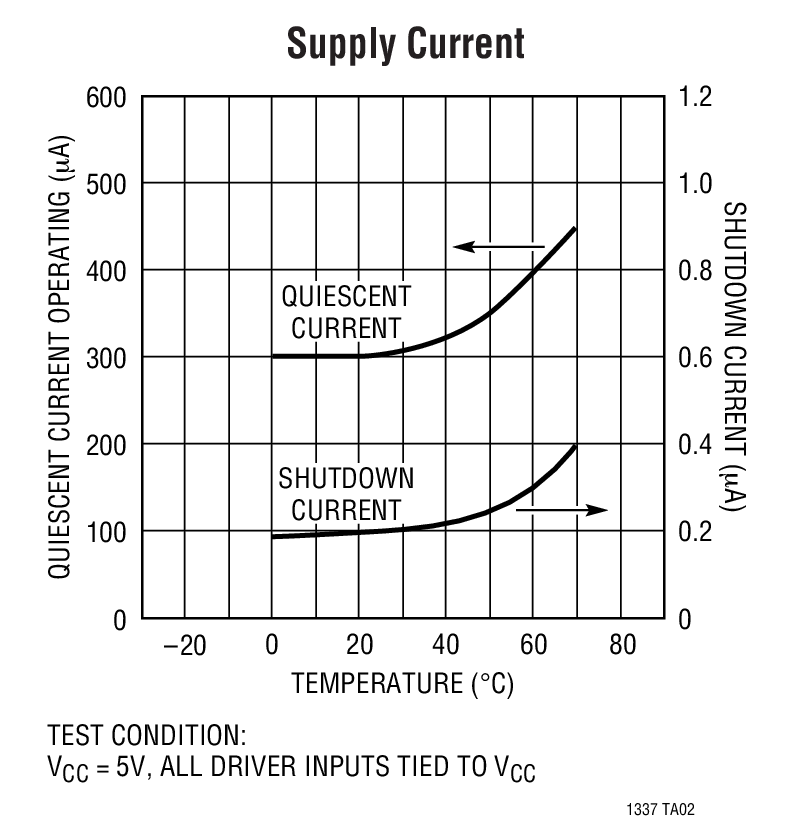

Low Supply Current: 300µA
ESD Protection: Over ±10kV
1µA Supply Current in Shutdown
Operates from a Single 5V Supply
Uses Small Capacitors: 0.1µF
Operates to 120k Baud
Three-State Outputs Are High Impedance When Off
Output Overvoltage Does Not Force Current Back into Supplies
RS232 I/O Lines Can Be Forced to ±25V without Damage
Pin Compatible with LT^®1137A and LT1237
Flowthrough Architecture

Part Models: 4
1ku List Price: Starting From $6.95

Documentation

Data Sheet 1

LTC1337: 5V Low Power RS232 3-Driver/5-Receiver Transceiver Data Sheet 08/24/2007

Reliability Data 1

R277 Reliability Data 03/23/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1337CG#PBF	28-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1337CG#TRPBF	28-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1337CSW#PBF	28-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1337CSW#TRPBF	28-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 6, 2022 - 22_0171 Laser Top Mark Conversion for SSOP Packages Assembled in PNG
		PCN22_0171_Form Material_Report Delta Qualification Matrix
LTC1337CG#PBF	PRODUCTION
LTC1337CG#TRPBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LTC1337CSW#PBF	PRODUCTION
LTC1337CSW#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
