LTC1159

PRODUCTION

High Efficiency Synchronous Step-Down Switching Regulators

Part Models
18
1ku List Price
Starting From $7.18
Viewing:

Part Details

  • Operation from 4V to 40V Input Voltage
  • 20µA Supply Current in Shutdown
  • High Efficiency Maintained Over Wide Current Range
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Very Low Dropout Operation: 100% Duty Cycle
  • Short-Circuit Protection
  • Synchronous FET Switching for High Efficiency
  • Adaptive Non-Overlap Gate Drives
  • Ultrahigh Efficiency: Up to 95%

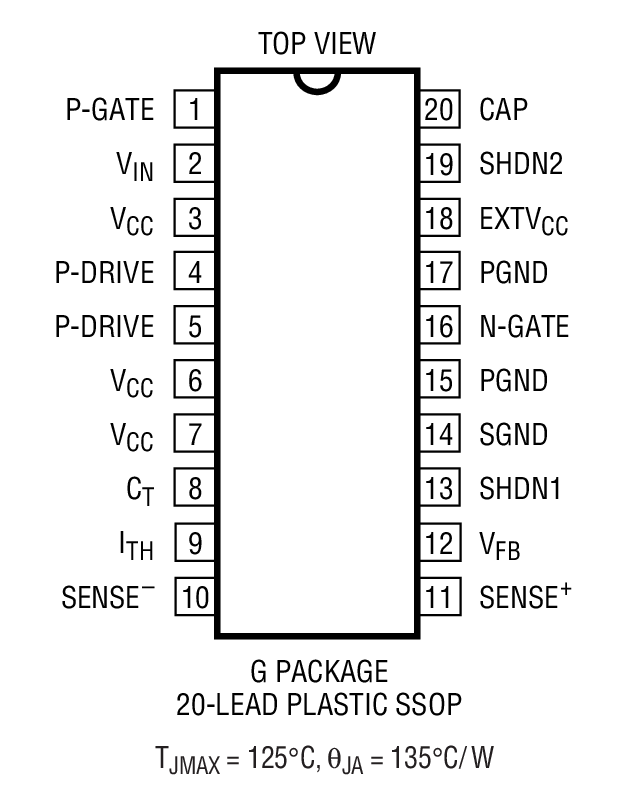

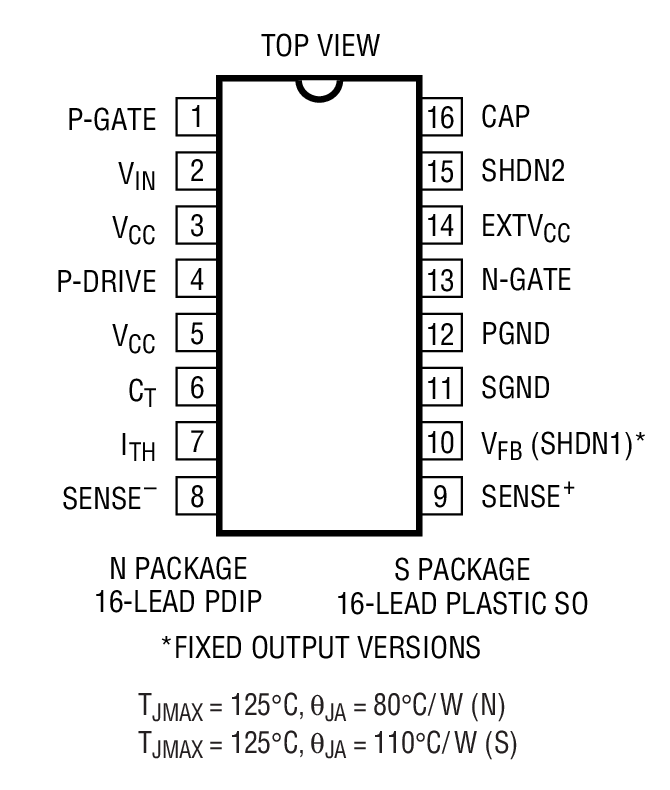

  • Available in SSOP and SO Packages
LTC1159
High Efficiency Synchronous Step-Down Switching Regulators

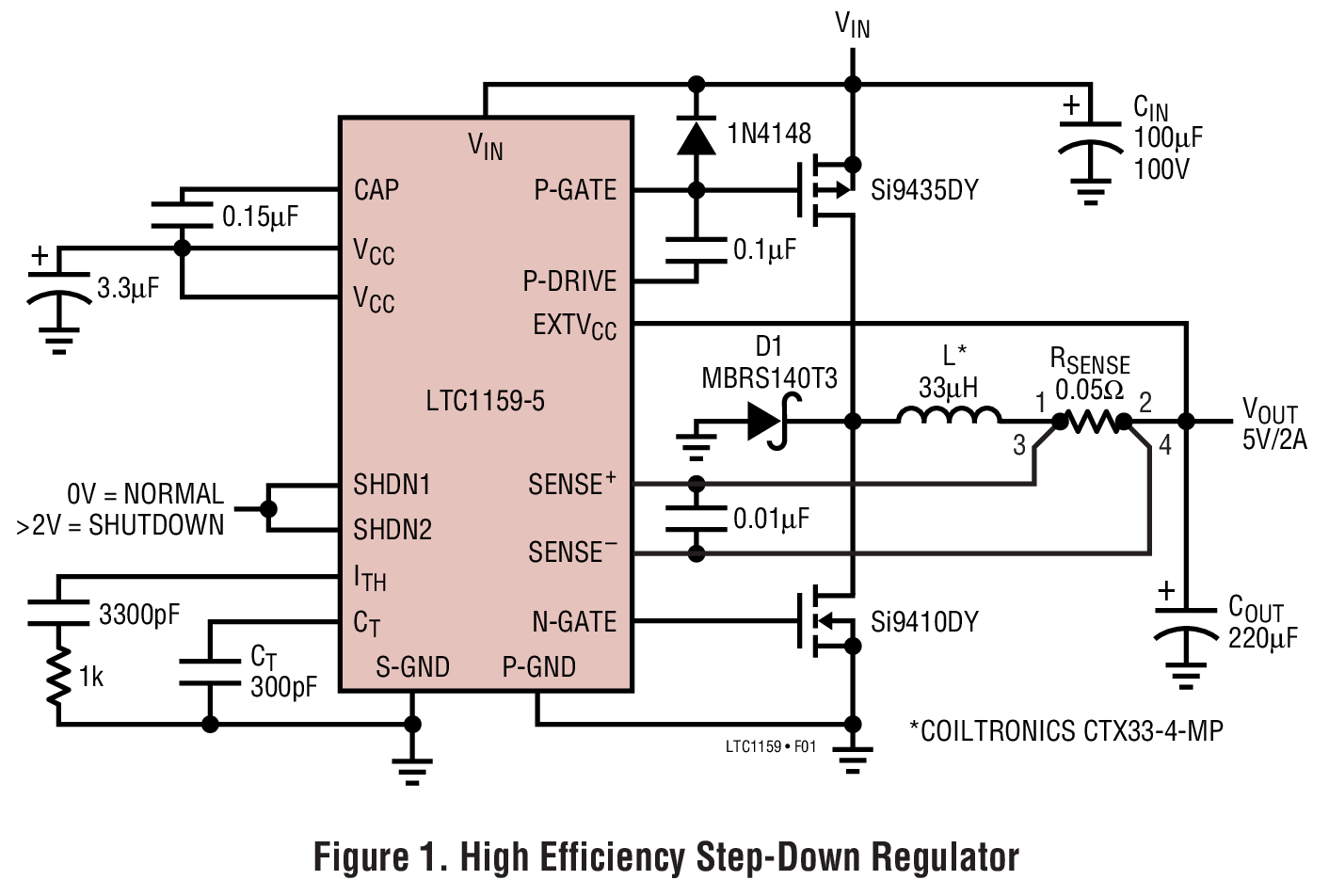

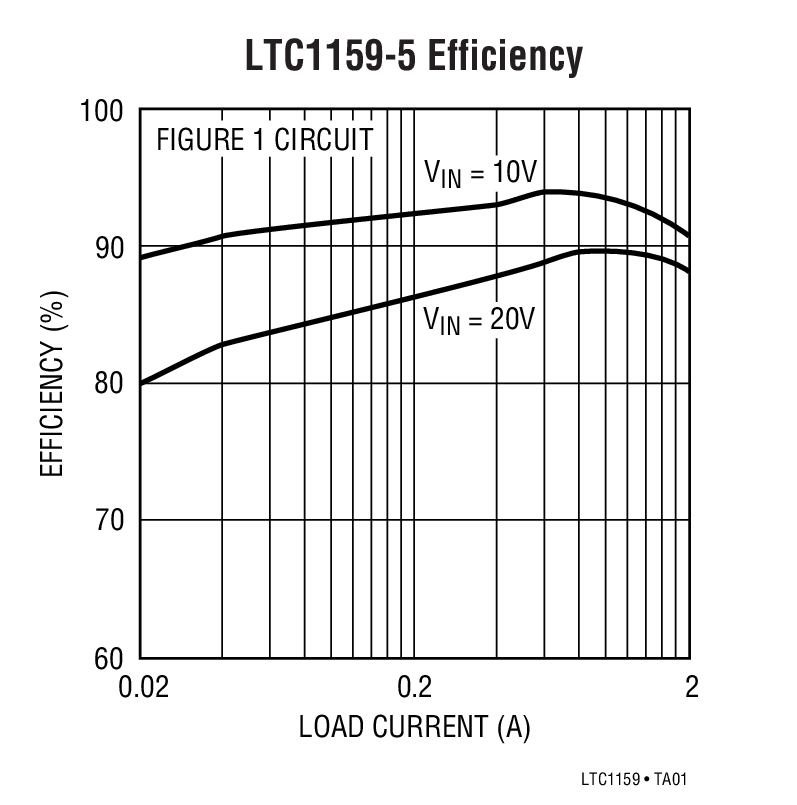

Figure 1. High Efficiency Step-Down Regulator LTC1159-5 Efficiency Product Package 1 Product Package 2
