LTC1153

PRODUCTION

Auto-Reset Electronic Circuit Breaker

Data Sheet
Part Models
6
1ku List Price
Starting From $3.04
Viewing:

Part Details

  • Programmable Trip Delay: 15µs to >100ms
  • Programmable Trip Current: 1mA to >20A
  • Programmbale Auto-Reset Time: 1ms to >10 sec.
  • 4.5V to 18V Supply Range
  • Drives Low RDS(ON) N-Channel MOSFETs
  • Status Output Indicates Fault Condition
  • Thermal Trip with PTC Thermistor
  • 8µA IQ in Standby Mode
  • No External Charge Pump Capacitors
  • Available in 8-Pin SOIC
LTC1153
Auto-Reset Electronic Circuit Breaker

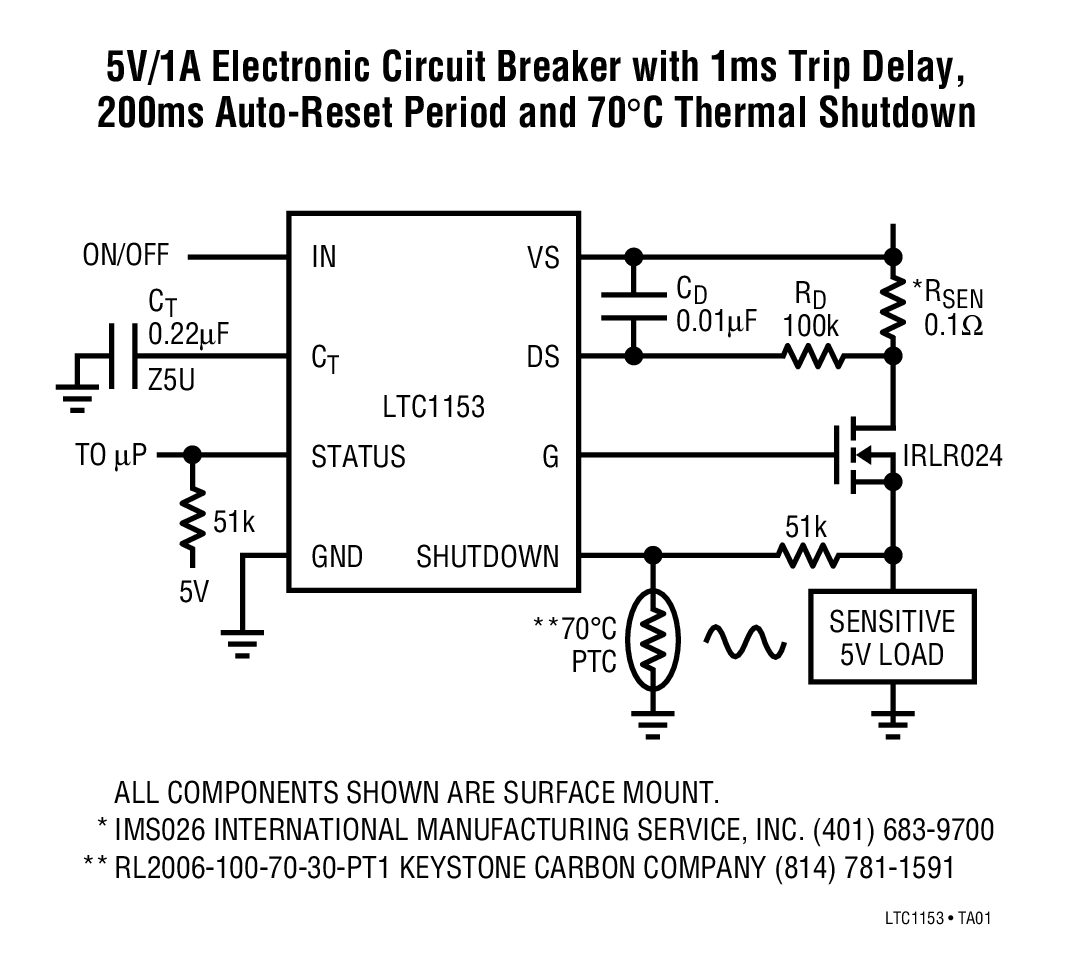

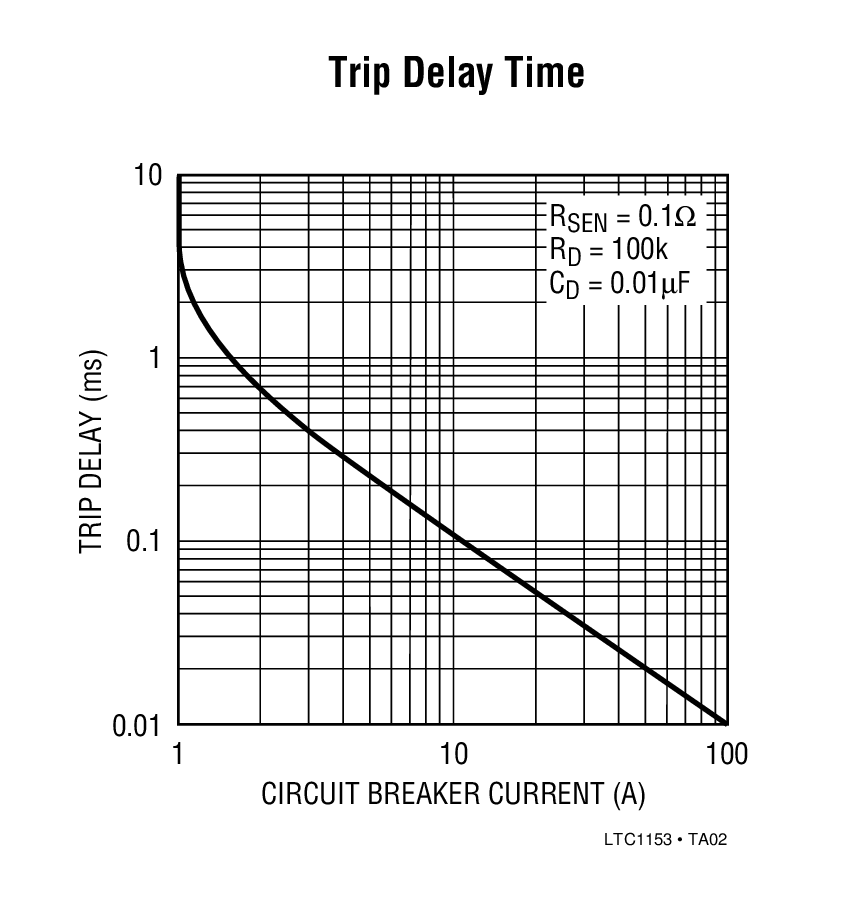

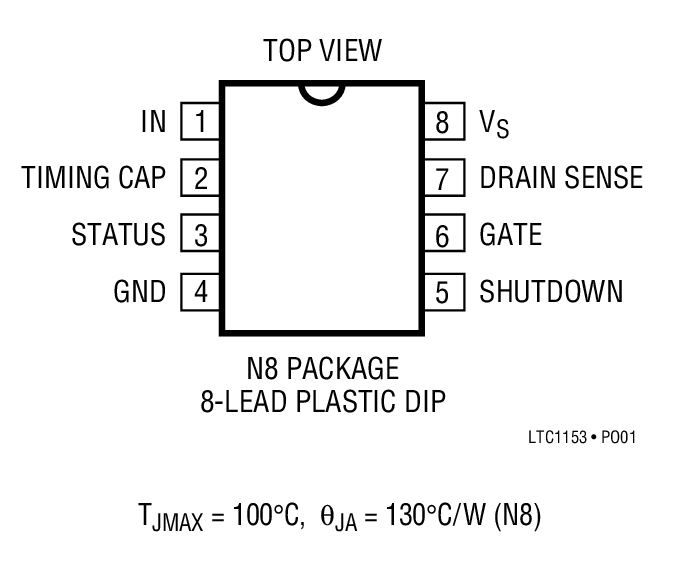

5V/1A Electronic Circuit Breaker with 1ms Trip Delay, 200ms Auto-Reset Period and 70°C Thermal Shutdown Trip Delay Time Product Package 1 Product Package 2
