LTC1142

PRODUCTION

Dual High Efficiency Synchronous Step-Down Switching Regulators

Part Models
8
1ku List Price
Starting From $8.86
Viewing:

Part Details

  • Dual Outputs: 3.3V and 5V or User Programmable
  • Ultra-High Efficiency: Over 95% Possible
  • Current Mode Operation for Excellent Line and Load Transient Response
  • High Efficiency Maintained over 3 Decades of Output Current
  • Low Standby Current at Light Loads: 160µA/Output
  • Independent Micropower Shutdown: IQ < 40µA
  • Wide VIN Range: 3.5V to 20V
  • Very Low Dropout Operation: 100% Duty Cycle
  • Synchronous FET Switching for High Efficiency
  • Available in Standard 28-Pin SSOP
LTC1142
Dual High Efficiency Synchronous Step-Down Switching Regulators

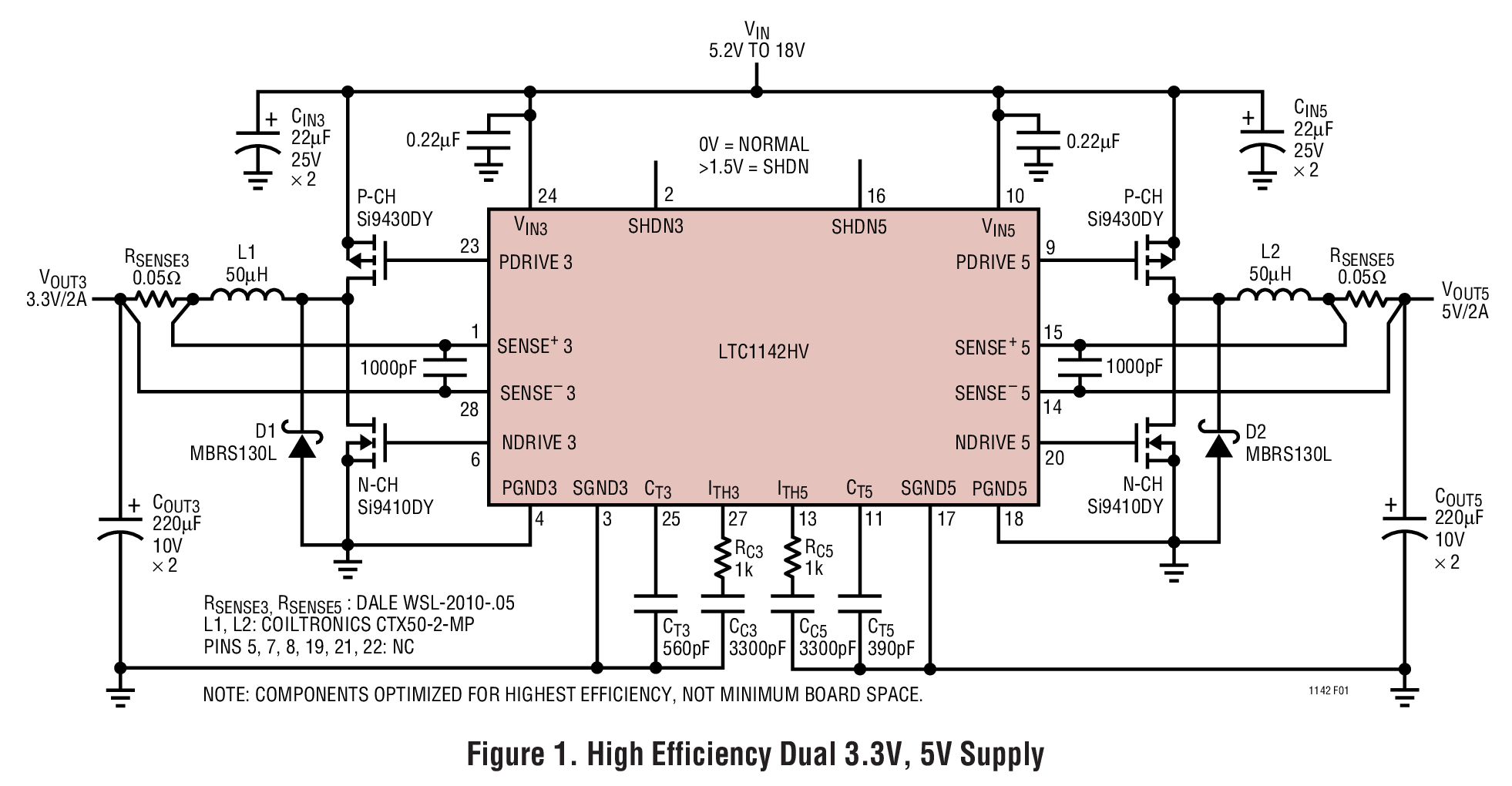

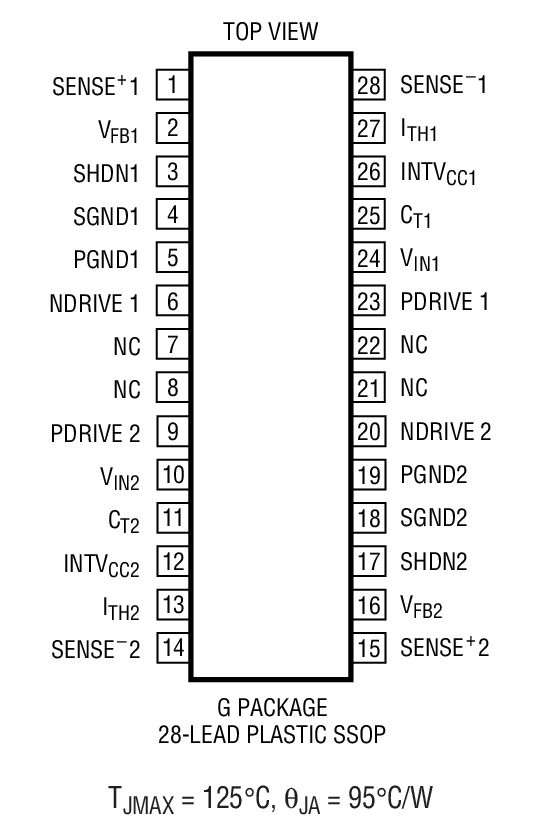

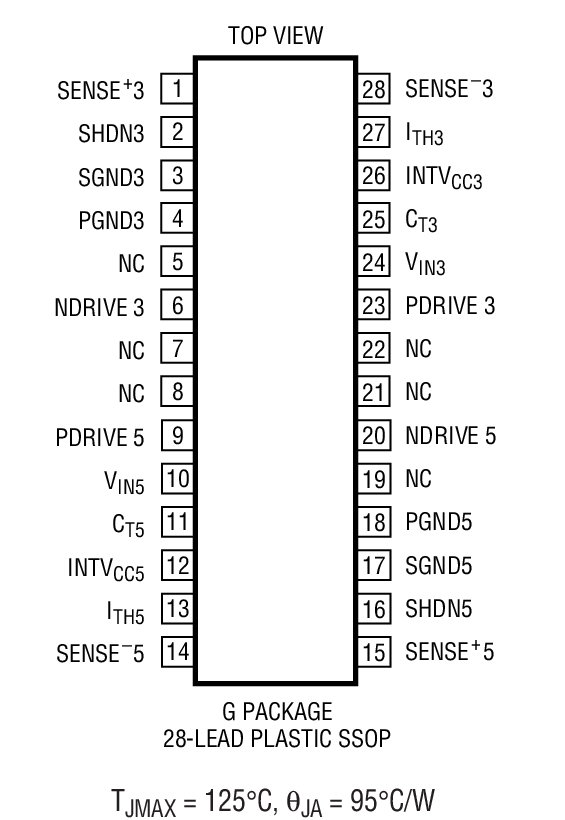

Figure 1. High Efficiency Dual 3.3V, 5V Supply Product Package 1 Product Package 2
