LT8415

PRODUCTION

Ultralow Power Boost Converter with Dual Half-Bridge Switches

Part Models
4
1ku List Price
Starting From $2.89
Viewing:

Part Details

  • High Voltage Switches Built in (Dual half-bridge)
  • Ultralow Quiescent Current
  • 10.5μA in Active Mode
  • 0μA in Shutdown Mode
  • Comparator Built into SHDN pin
  • Low Noise Control Scheme
  • Adjustable FB reference voltage
  • Wide Input Range: 2.5V to 16V
  • Wide Output Range: Up to 40V
  • Integrated Power NPN Switch (25mA Current Limit)
  • Integrated Schottky Diode
  • Integrated Output Disconnect
  • High Value (12.4M/0.4M) Feedback Resistor Integrated
  • Built in Soft Start (Optional Capacitor from VREF to GND)
  • Over Voltage Protection for CAP, VOUT, OUT1 and OUT2 Pins

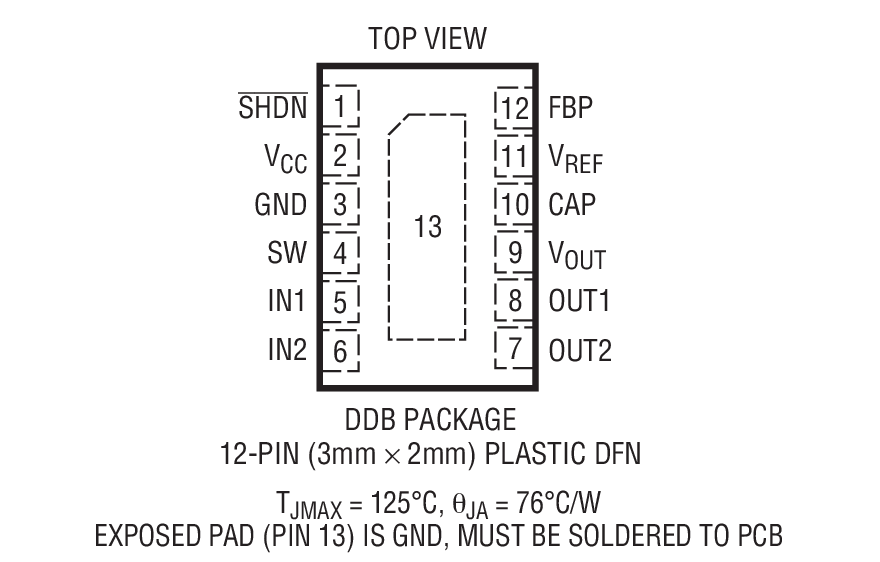

  • 12-Pin 3mm × 2mm DFN package
LT8415
Ultralow Power Boost Converter with Dual Half-Bridge Switches

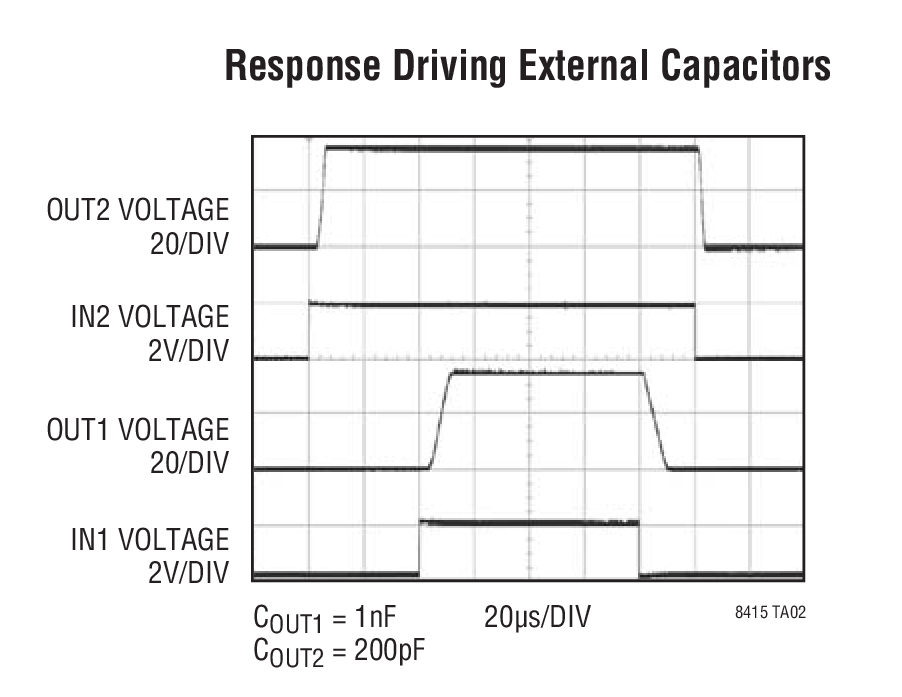

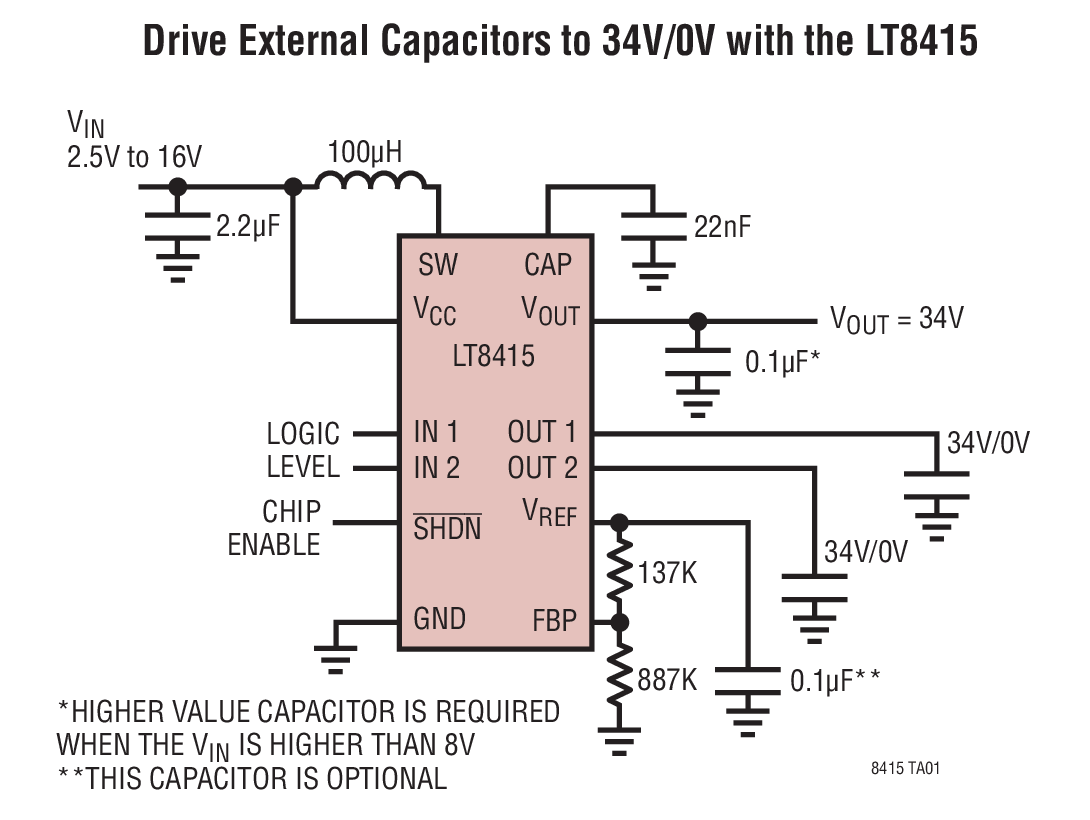

Drive External Capacitors to 34V/0V with the LT8415 Response Driving External Capacitors Product Package 1
