LT3782

PRODUCTION

2-Phase Step-Up DC/DC Controller

Part Models
6
1ku List Price
Starting From $6.17
Viewing:

Part Details

  • 2-Phase Operation Reduces Required Input and Output Capacitance
  • Programmable Switching Frequency: 150kHz to 500kHz
  • 6V to 40V Input Range
  • 10V Gate Drive with VCC ≥13V
  • High Current Gate Drive (4A)
  • Programmable Soft-Start and Current Limit
  • Programmable Slope Compensation for High Noise Immunity
  • MOSFET Gate Signals with Programmable Falling Edge Delay for External Synchronous Drivers
  • Programmable Undervoltage Lockout
  • Programmable Duty Cycle Clamp (50% or Higher)

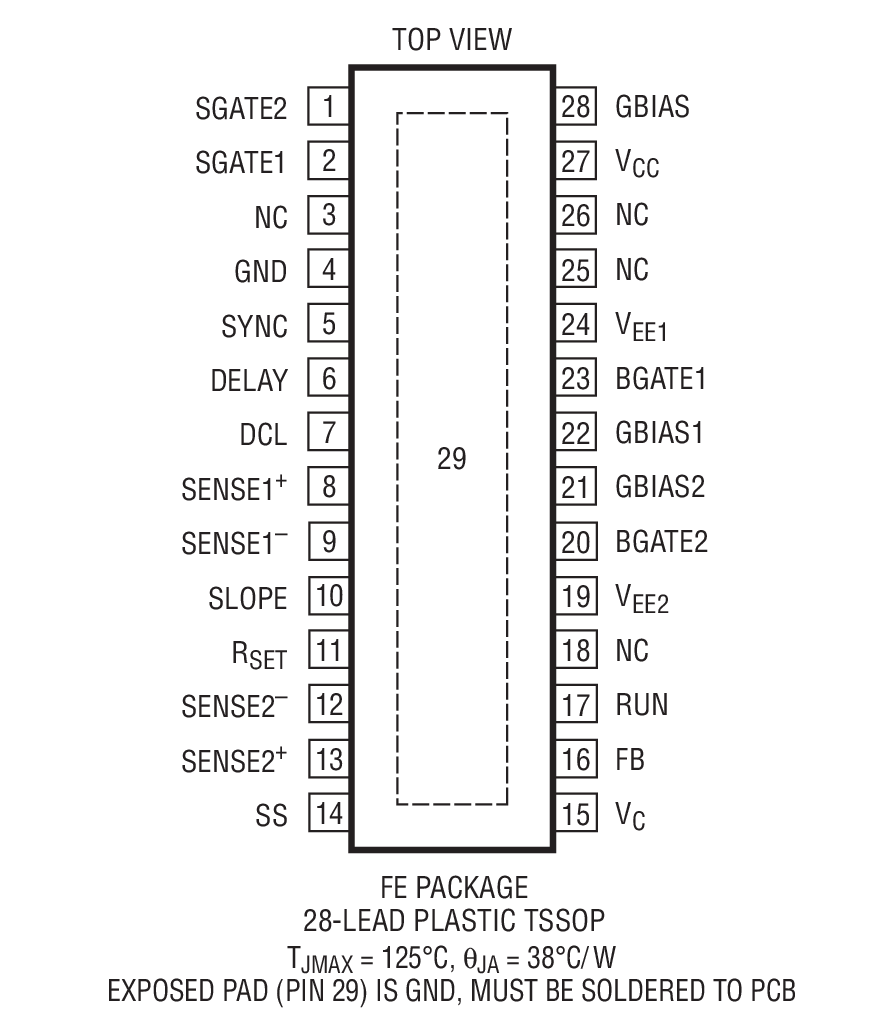

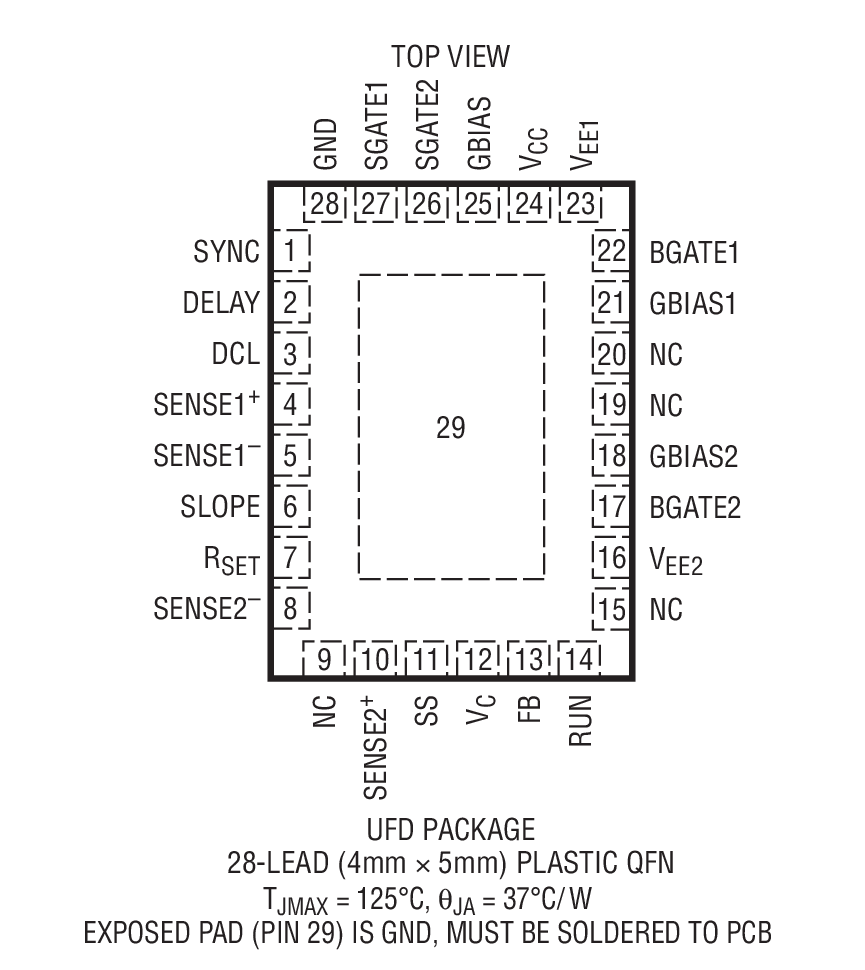

  • Thermally Enhanced 28-Lead TSSOP and 4mm x 5mm QFN Packages
LT3782
2-Phase Step-Up DC/DC Controller

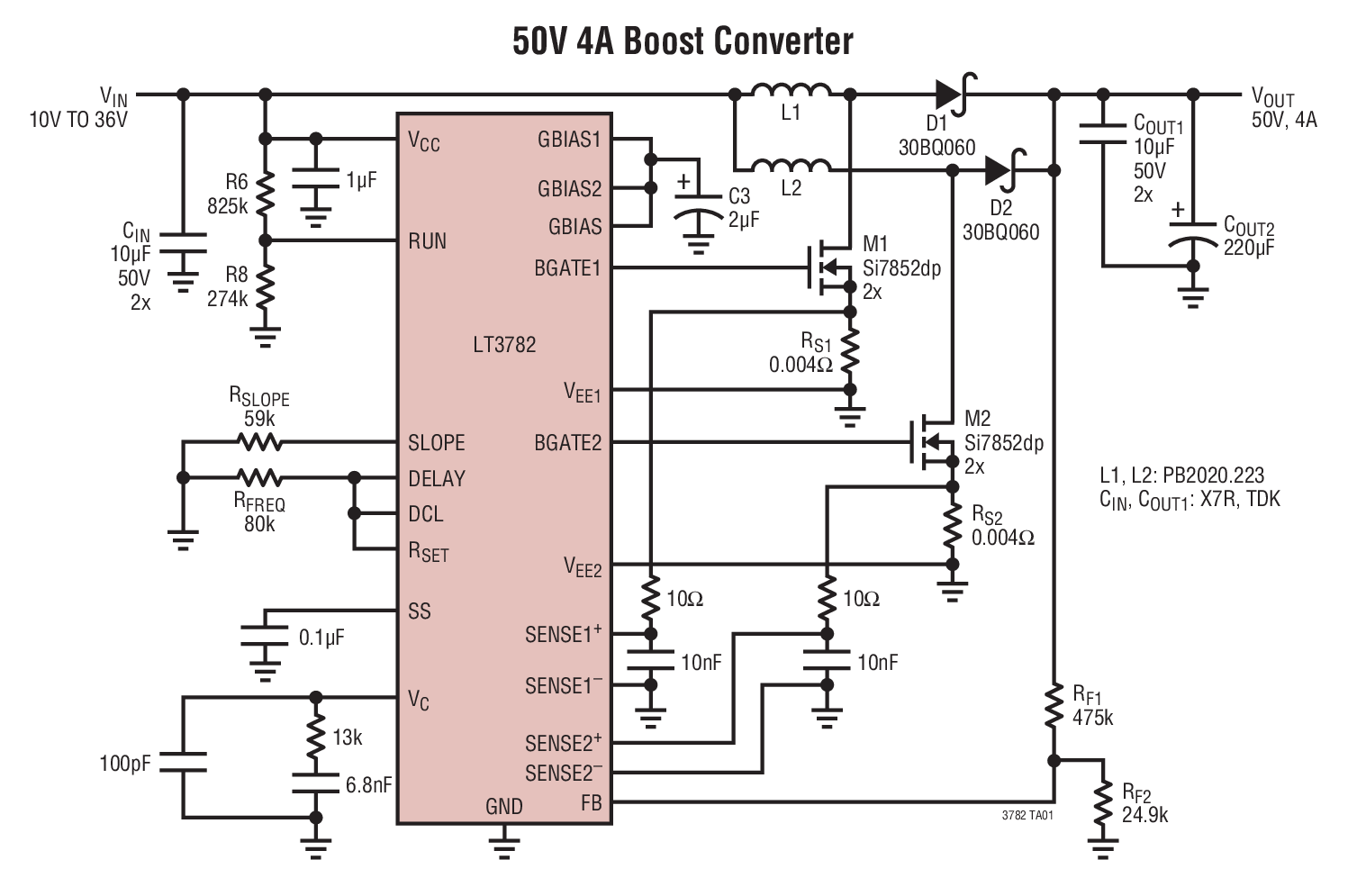

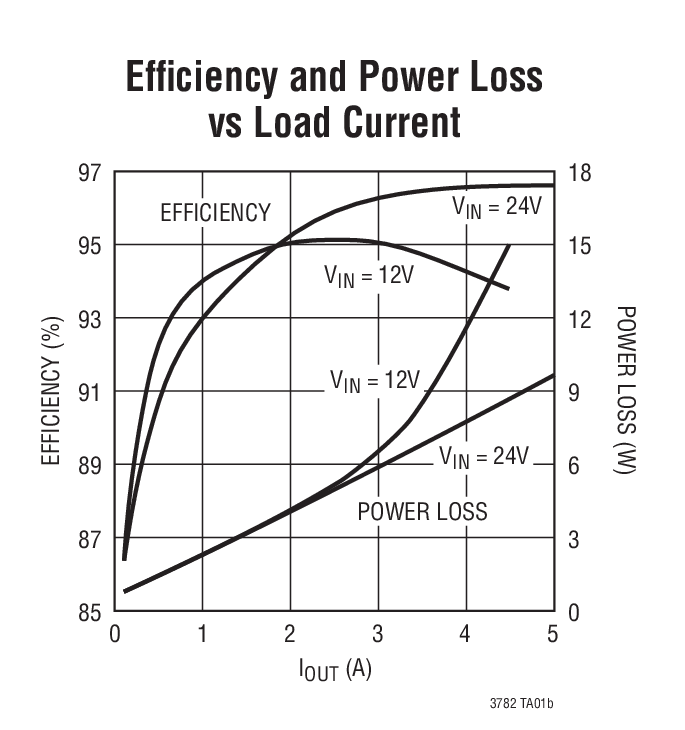

50V 4A Boost Converter Efficiency and Power Loss vs Load Current Product Package 1 Product Package 2
