LT1513

PRODUCTION

SEPIC Constant- or Programmable-Current/Constant-Voltage Battery Charger

Data Sheet
Part Models
10
1ku List Price
Starting From $5.17
Viewing:

Part Details

  • Charger Input Voltage May Be Higher, Equal to or Lower Than Battery Voltage
  • Charges Any Number of Cells Up to 20V
  • 1% Voltage Accuracy for Rechargeable Lithium Batteries
  • 100mV Current Sense Voltage for High Efficiency (LT1513)
  • 0mV Current Sense Voltage for Easy Current Programming (LT1513-2)
  • Battery Can Be Directly Grounded
  • 500kHz Switching Frequency Minimizes Inductor Size
  • Charging Current Easily Programmable or Shut Down
LT1513
SEPIC Constant- or Programmable-Current/Constant-Voltage Battery Charger

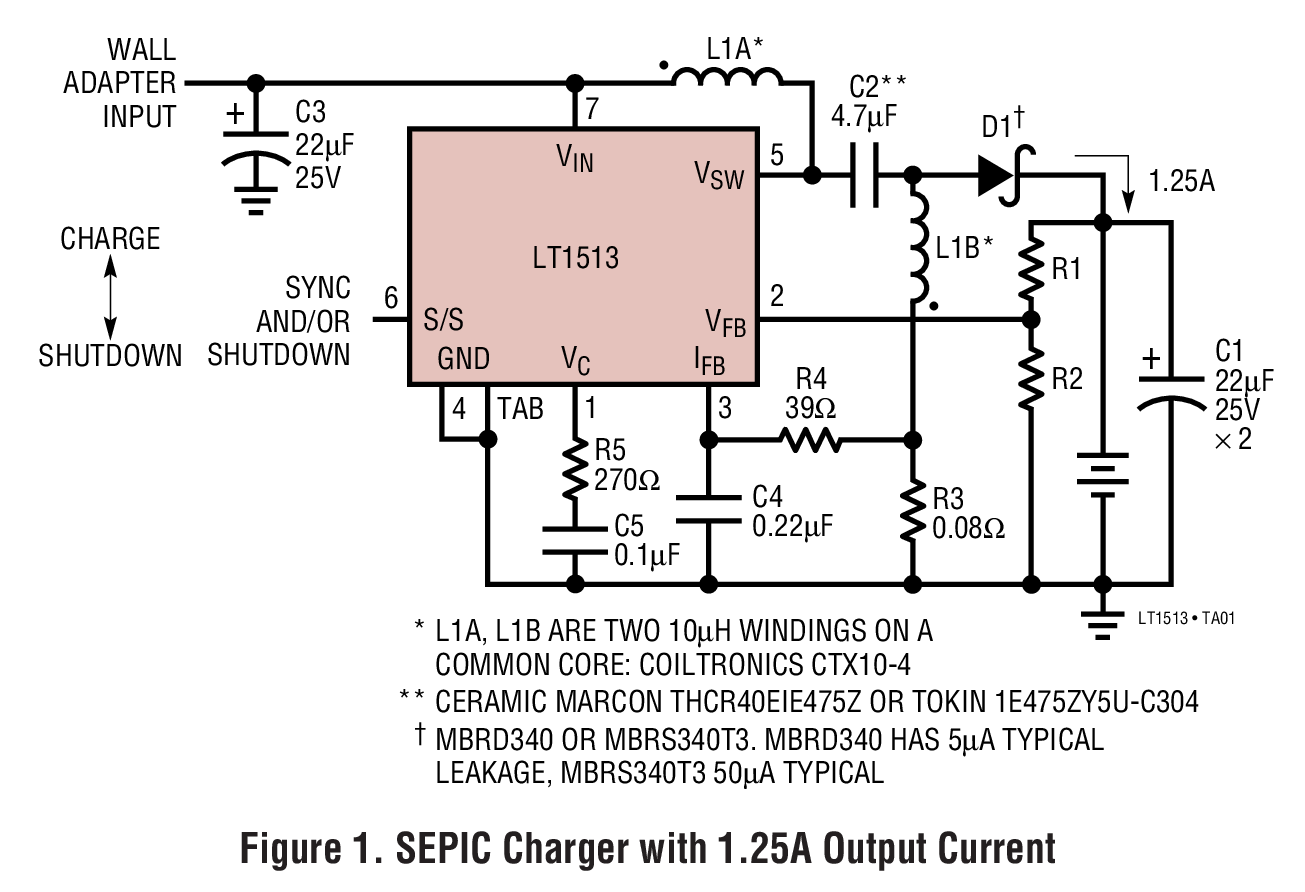

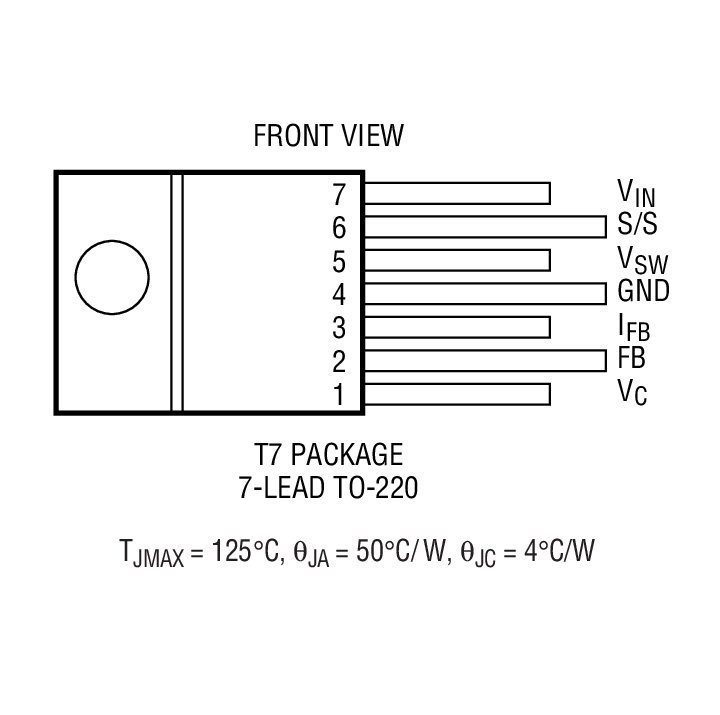

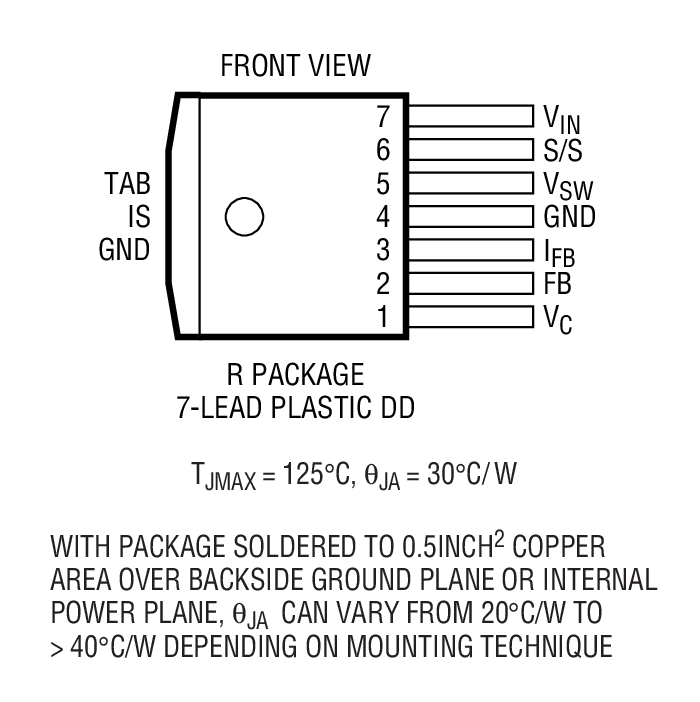

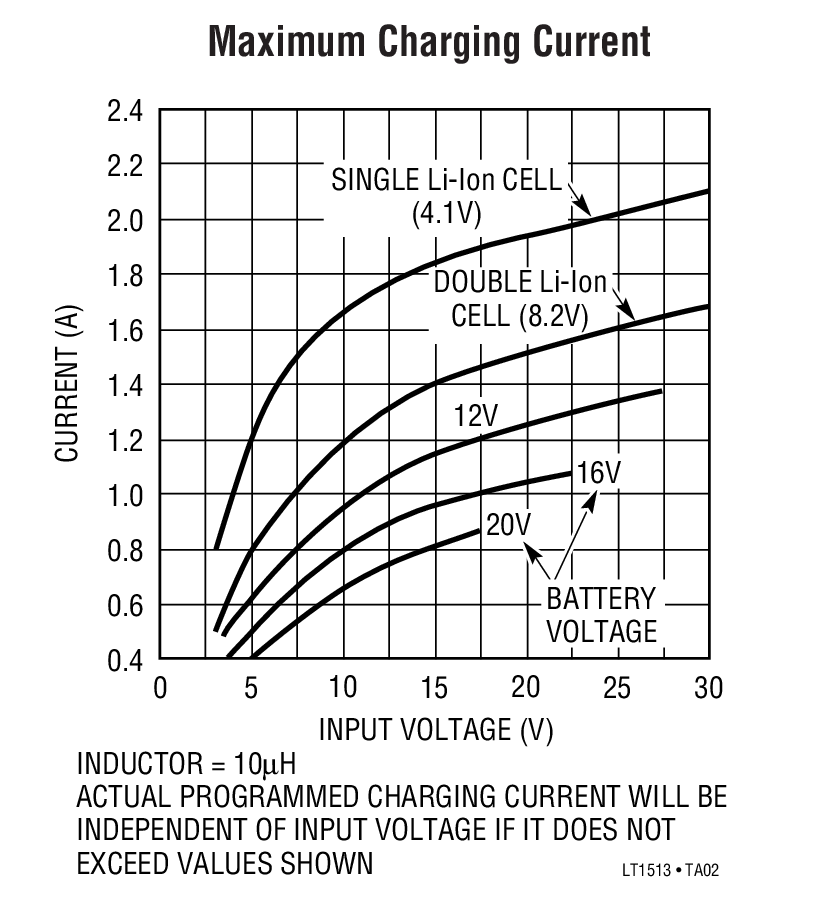

SEPIC Charger with 1.25A Output Current Maximum Charging Current Product Package 1 Product Package 2
