LT1505

PRODUCTION

Constant-Current/Voltage High Efficiency Battery Charger

Data Sheet
Part Models
4
1ku List Price
Starting From $6.66
Viewing:

Part Details

  • Simple Charging of Li-Ion, NiMH and NiCd Batteries
  • Very High Efficiency: Up to 97%
  • Precision 0.5% Charging Voltage Accuracy
  • Preset Battery Voltages: 12.3V, 12.6V, 16.4V and 16.8V
  • 5% Charging Current Accuracy
  • Charging Current Programmed by Resistor or DAC
  • 0.5V Dropout Voltage, Duty Cycle > 99.5%
  • AC Adapter Current Limit* Maximizes Charging Rate
  • Flag Indicates Li-Ion Charge Completion
  • Auto Shutdown with Adapter Removal
  • Only 10µA Battery Drain When Idle
  • Synchronizable Up to 280kHz
LT1505
Constant-Current/Voltage High Efficiency Battery Charger

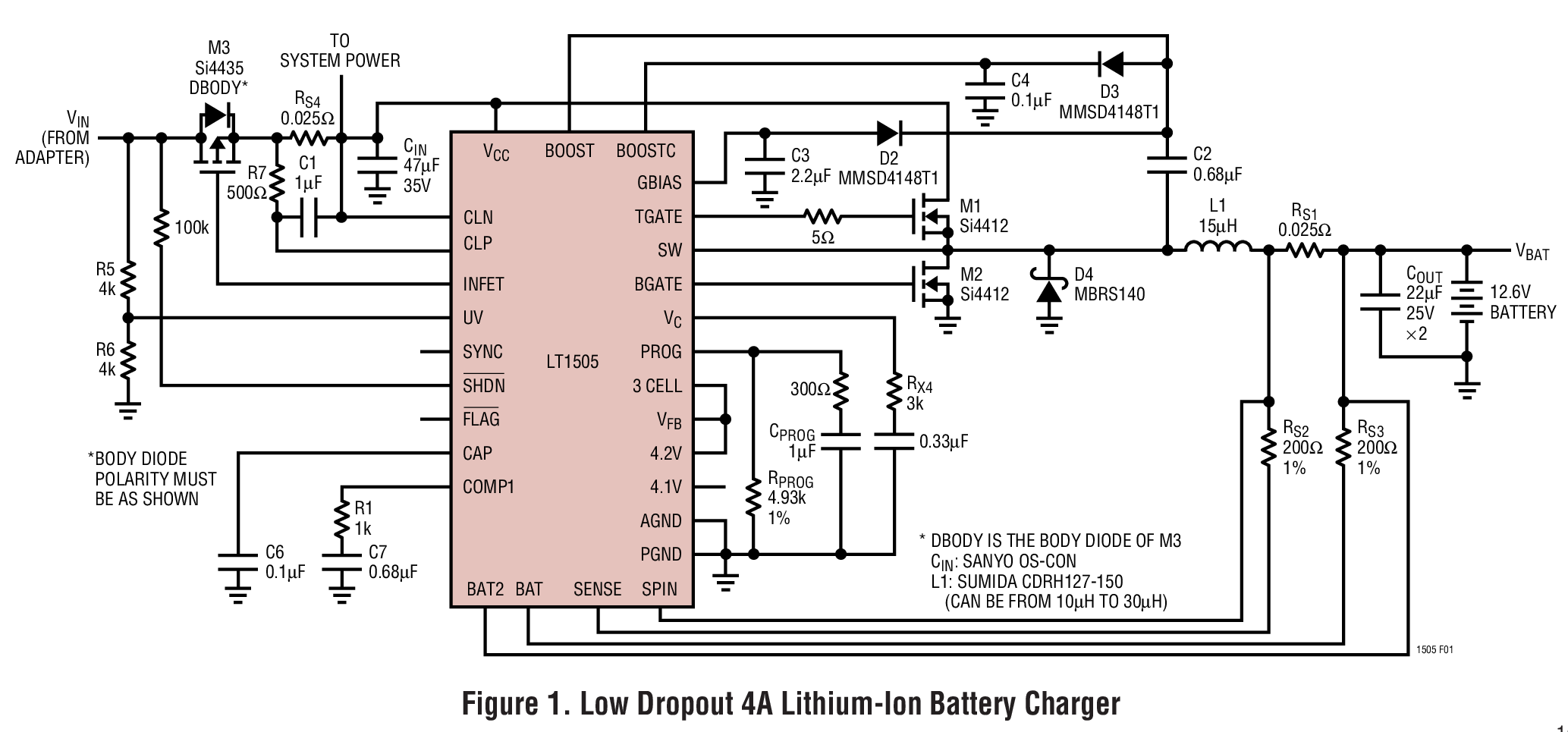

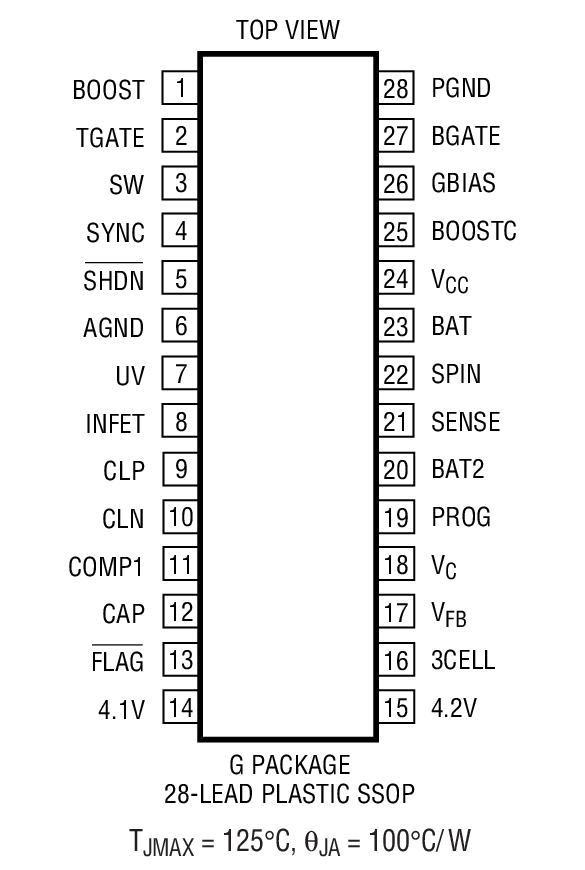

Figure 1. Low Dropout 4A Lithium-Ion Battery Charger Product Package 1 Product Package 2
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

Application Note 1

Design Note 3

Technical Articles 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Battery Monitors & Fuel Gauges 1
LTC2942-1
Obsolete 1A Battery Gas Gauge with Internal Sense Resistor and Temperature/Voltage Measurement
Circuit Monitors 1
LTC2960
RECOMMENDED FOR NEW DESIGNS 36V Nano-Current Two-Input Voltage Monitor
Protection Switches & Controllers 2
LTC2954
RECOMMENDED FOR NEW DESIGNS Push Button On/Off Controller with µP Interrupt
LTC4364
RECOMMENDED FOR NEW DESIGNS Surge Stopper with Ideal Diode
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 1

Models for the following parts are available in LTspice:

  • LT1505
  • LT1505-1
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
DC219A

LT1505CG | 4A CC-CV Lithium-Ion Battery Charger, VIN max < 24V, VIN min = Vbat +0.5V (thru-hole caps)

Buy Now View Details

Product Details

DC219A: Demo Board for the LT1505 Constant-Current/Voltage High Efficiency Battery Charger.



DC219A
LT1505CG | 4A CC-CV Lithium-Ion Battery Charger, VIN max < 24V, VIN min = Vbat +0.5V (thru-hole caps)

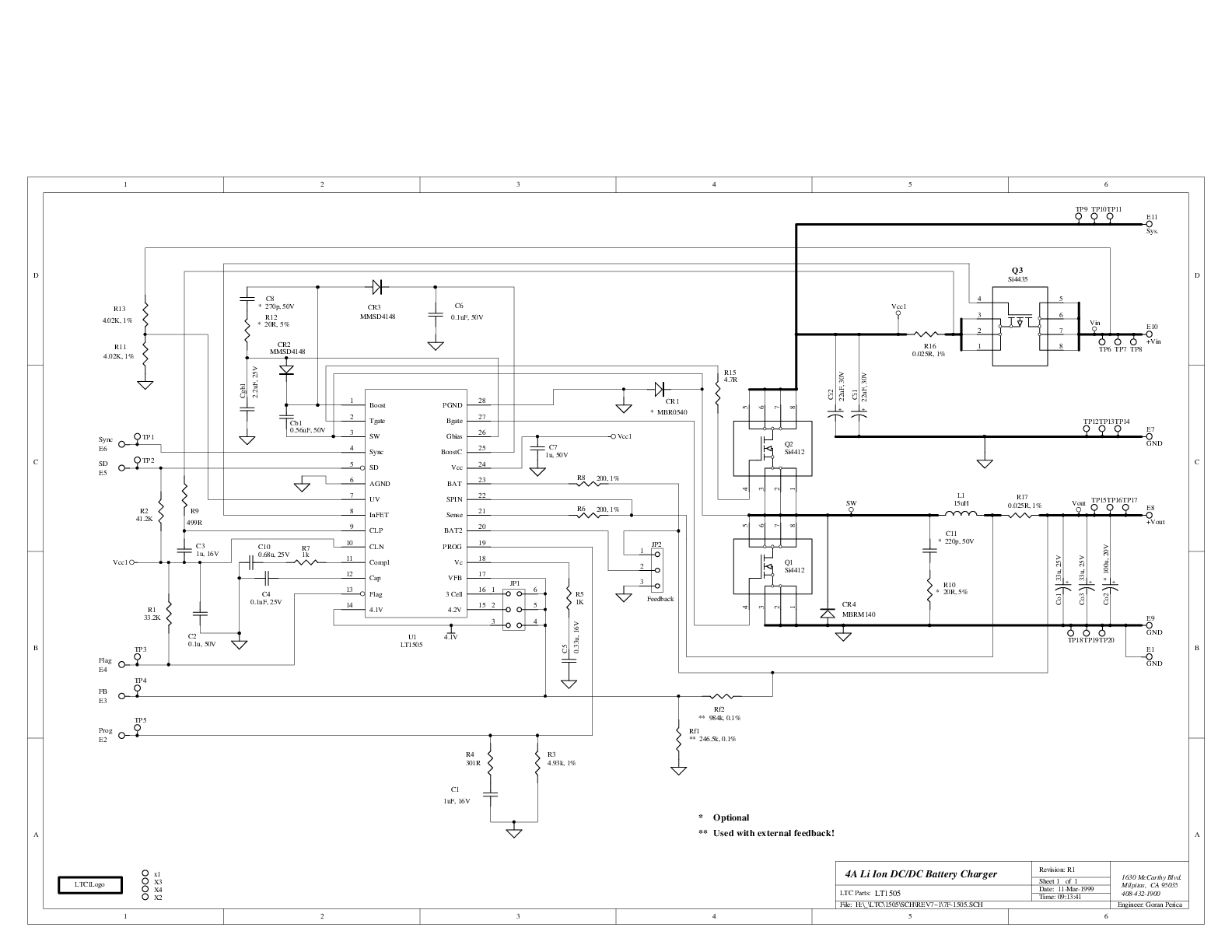

DC219A - Schematic
