LT1158

PRODUCTION

Half Bridge N-Channel Power MOSFET Driver

Data Sheet Product Selection Table

Part Models: 7
1ku List Price: Starting From $4.88

Viewing:

Part Details

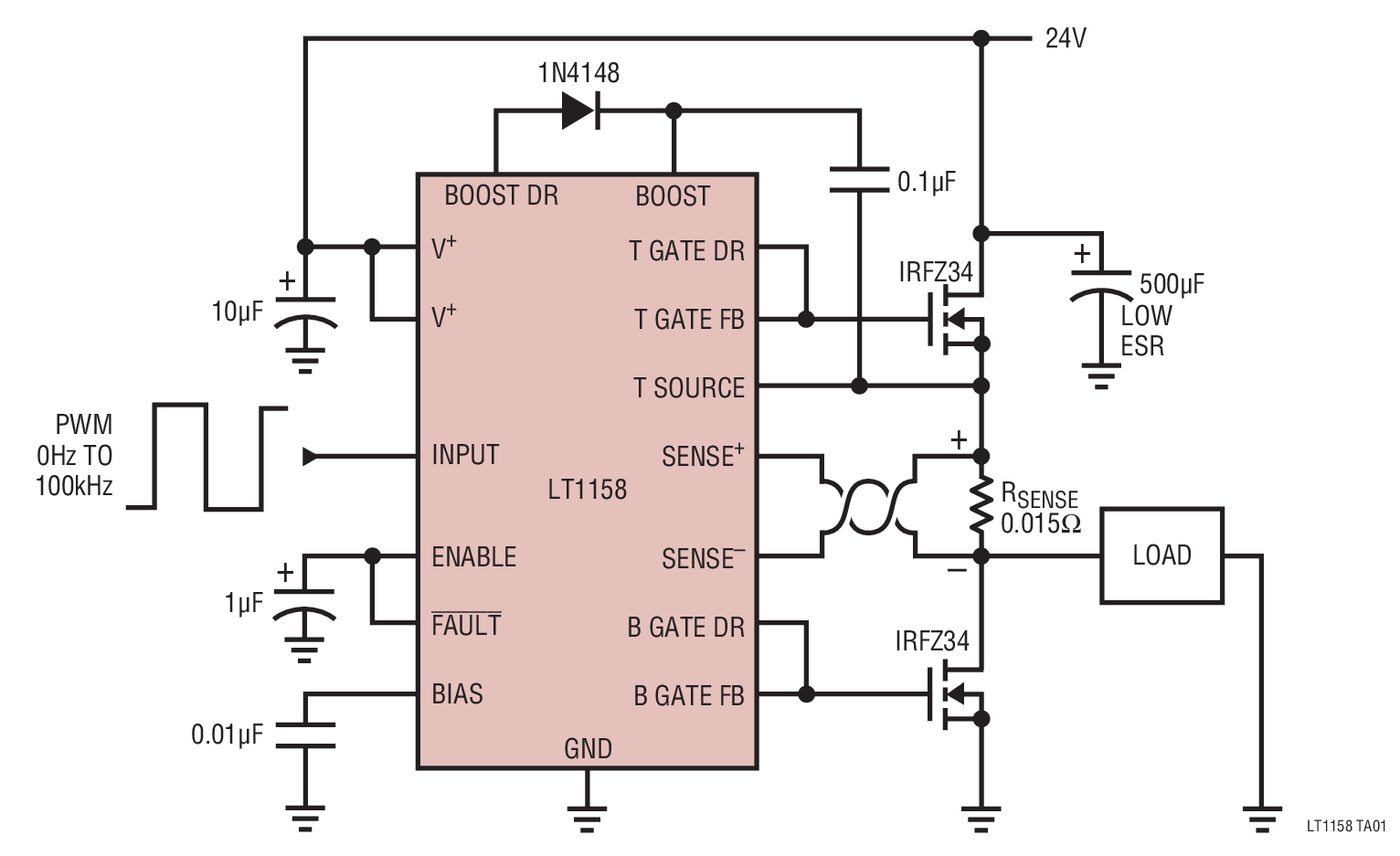

Drives Gate of Top Side MOSFET Above V⁺
Operates at Supply Voltages from 5V to 30V
150ns Transition Times Driving 3000pF
Over 500mA Peak Driver Current

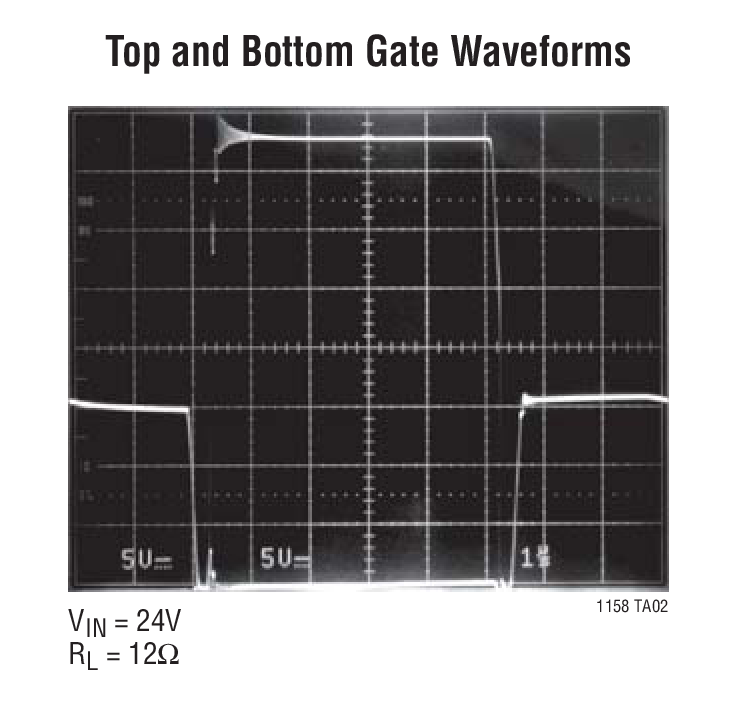

Adaptive Non-Overlap Gate Drives
Continuous Current Limit Protection
Auto Shutdown and Retry Capability
Internal Charge Pump for DC Operation
Built-In Gate Voltage Protection
Compatible with Current-Sensing MOSFETs
TTL/CMOS Input Levels
Fault Output Indication

Part Models: 7
1ku List Price: Starting From $4.88

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

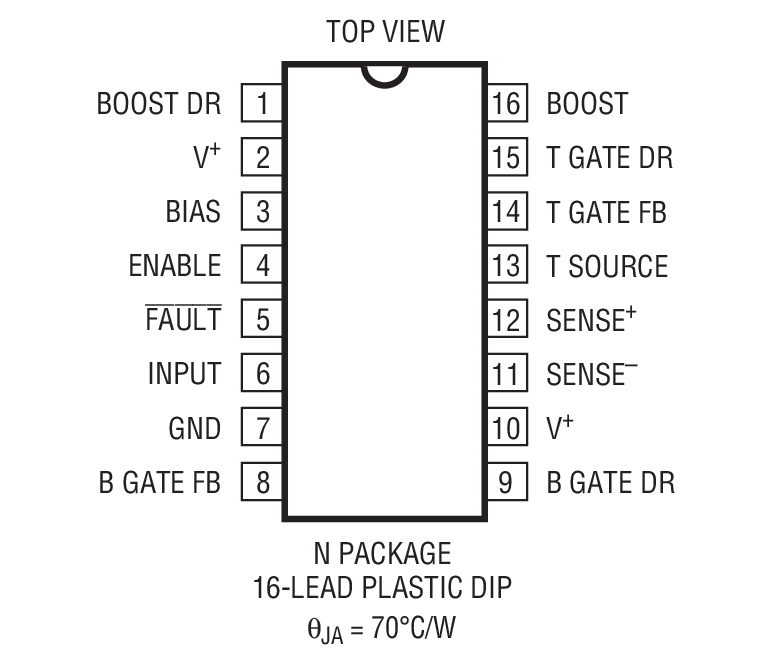

LT1158CN#PBF	16-Lead PDIP (Narrow 0.30 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

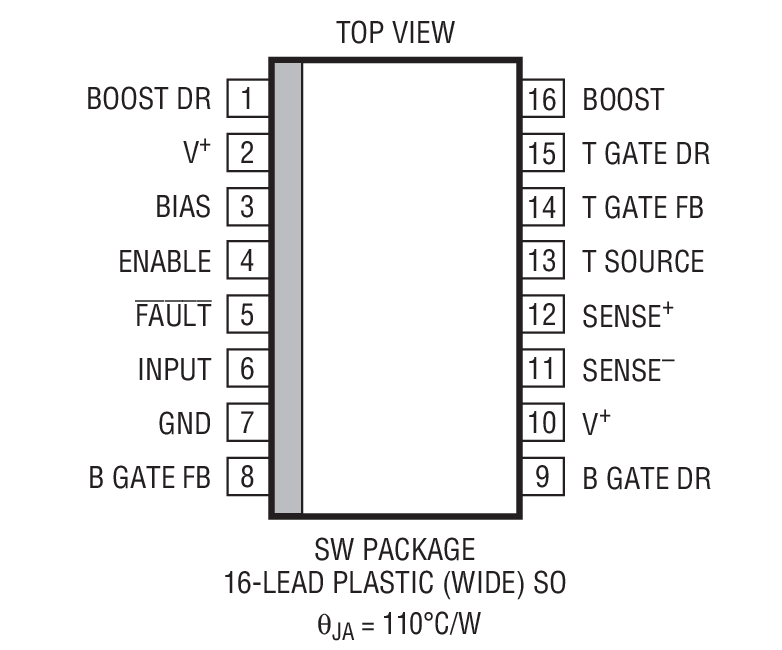

LT1158CSW#PBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1158CSW#TRPBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1158IN#PBF	16-Lead PDIP (Narrow 0.30 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1158ISW	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1158ISW#PBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1158ISW#TRPBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1158CN#PBF	PRODUCTION
LT1158IN#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1158CN#PBF	PRODUCTION
LT1158IN#PBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LT1158CSW#PBF	PRODUCTION
LT1158CSW#TRPBF	PRODUCTION
LT1158ISW
LT1158ISW#PBF	PRODUCTION
LT1158ISW#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LT1158

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
