LT1070

PRODUCTION

5A and 2.5A High Efficiency Switching Regulators

Part Models: 9
1ku List Price: Starting From $7.49

Viewing:

Part Details

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages Are Now Obsolete
Wide Input Voltage Range: 3V to 60V
Low Quiescent Current: 6mA
Internal 5A Switch (2.5A for LT1071)
Very Few External Parts Required
Self-Protected Against Overloads

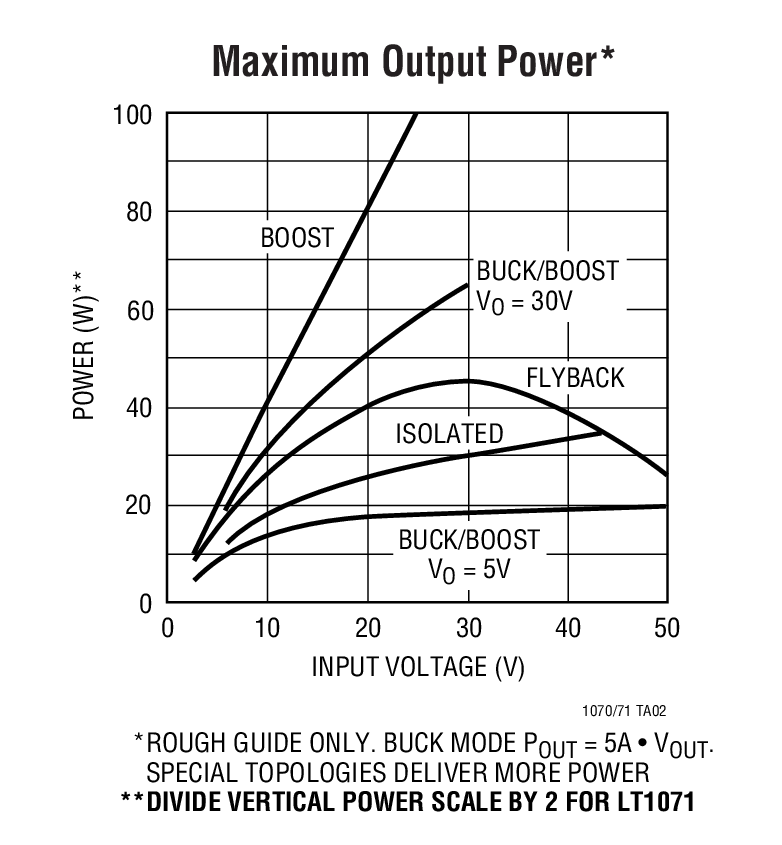

Operates in Nearly All Switching Topologies
Shutdown Mode Draws Only 50µA Supply Current
Flyback Regulated Mode has Fully Floating Outputs

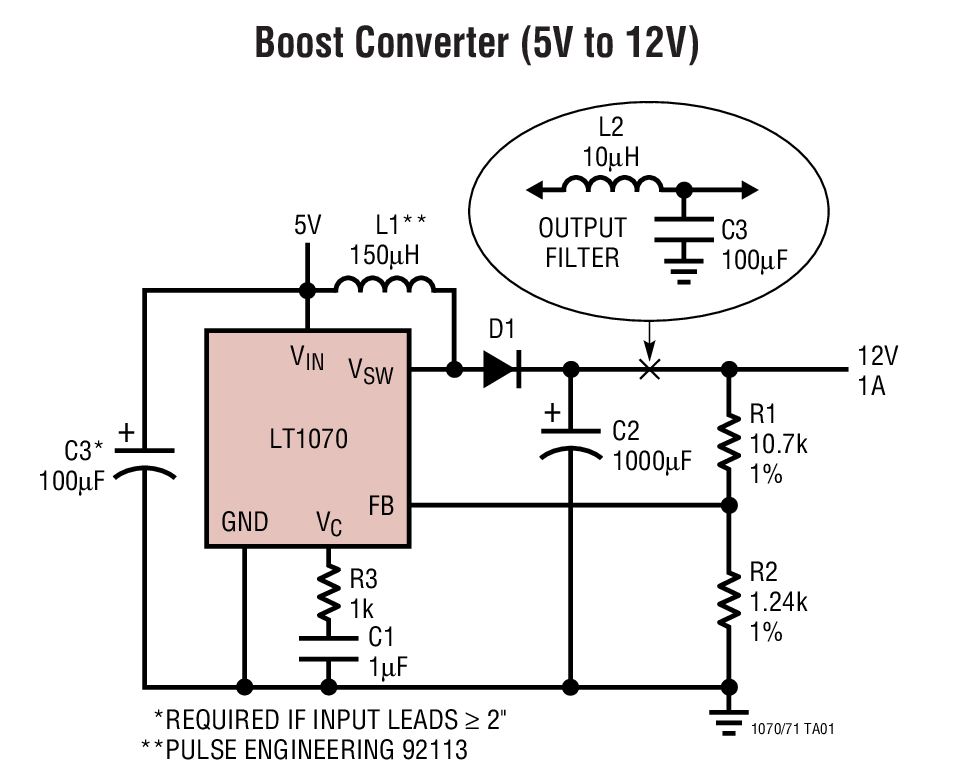

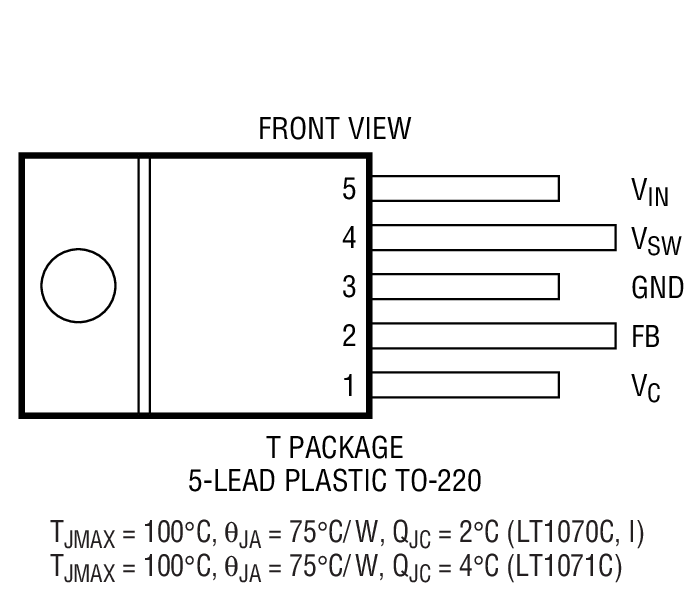

Comes in Standard 5-Pin TO-220 Packages
Can be Externally Synchronized (Consult Factory)

Part Models: 9
1ku List Price: Starting From $7.49

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1070CT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070CT#30PBF	5-Lead TO-220 (Flow 30)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070CT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070HVCT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070HVCT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070HVIT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070HVIT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070IT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1070IT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 10, 2022 - 22_0175 Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark
		PCN22_0175_Form Material_Report Delta Qualification Matrix
LT1070CT#06PBF	PRODUCTION
LT1070CT#30PBF	PRODUCTION
LT1070CT#PBF	PRODUCTION
LT1070HVCT#06PBF	PRODUCTION
LT1070HVCT#PBF	PRODUCTION
LT1070HVIT#06PBF	PRODUCTION
LT1070HVIT#PBF	PRODUCTION
LT1070IT#06PBF	PRODUCTION
LT1070IT#PBF	PRODUCTION

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LT1070
LT1070HV

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
